Actina 5901443345190 server 960 GB Rack (1U) Intel Xeon E E-2314 2.8 GHz 16 GB DDR4-SDRAM 350 W

1454.48 (1803.56 inc. VAT)

Out of stock

SHARE

Description

Processor boost frequency : 4.5 GHz
Number of processors installed : 1

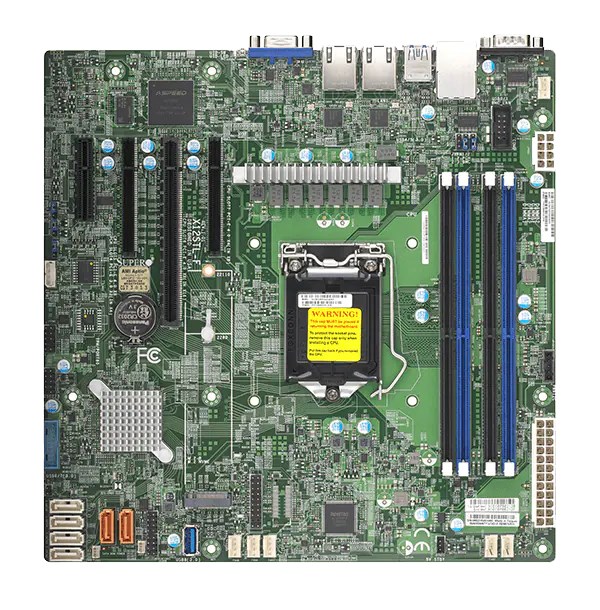

Motherboard chipset : Intel C252
Processor cache : 8 MB
Processor family : Intel Xeon E
Processor cores : 4
Processor model : E-2314
Processor manufacturer : Intel
Processor frequency : 2.8 GHz
On-board graphics card : Yes
On-board graphics card model : Aspeed AST2600
Internal memory : 16 GB
Internal memory type : DDR4-SDRAM
Memory clock speed : 3200 MHz
Maximum internal memory : 128 GB
Memory slots : 4x DIMM
Memory layout (slots x size) : 2 x 8 GB
Rack mounting : Yes
Motherboard form factor : micro ATX

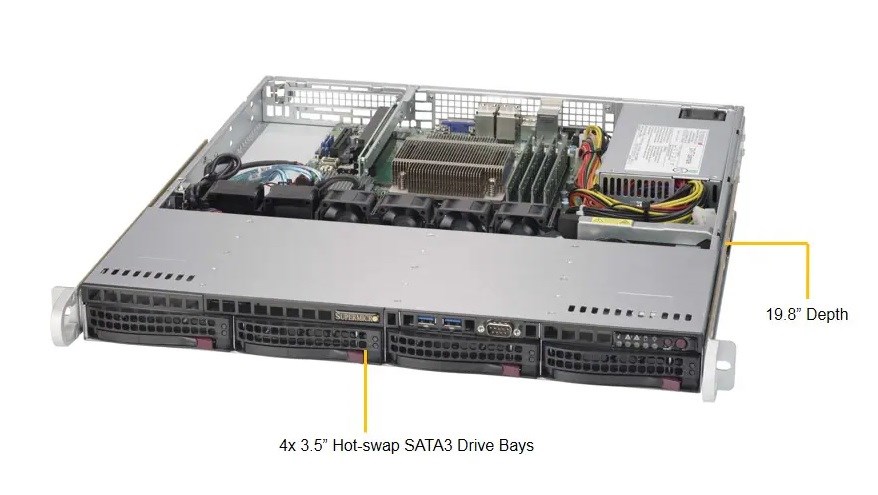

Chassis type : Rack (1U)
Rack rails : Yes
Power supply : 350 W
Redundant power supply (RPS) support : No
Power supply input voltage : 100-240 V
Power supply input frequency : 50-60 Hz
Number of main power supplies : 1
Power cable length : 2 m
Operating temperature (T-T) : 0 – 50 °C
Storage relative humidity (H-H) : 10 – 95%
Storage temperature (T-T) : -20 – 60 °C
Operating relative humidity (H-H) : 10 – 85%
Depth : 503 mm
Height : 43 mm
Width : 437 mm
LAN controller : Intel I210
Cabling technology : 10/100/1000Base-T(X)
Wi-Fi : No
Ethernet LAN : Yes
Ethernet interface type : Gigabit Ethernet
Number of LAN controllers : 1
PCI Express x8 (Gen 4.x) slots : 2
PCI Express x4 (Gen 3.x) slots : 1
PCI Express x16 (Gen 4.x) slots : 1
Operating system installed : No
Total storage capacity : 960 GB
Optical drive type : No
Maximum storage capacity : 960 TB
RAID levels : 10, 5, 1, 0
RAID support : Yes
Number of 5.25" bays : 1
Supported SSD sizes : 2.5"
SSD size : 2.5"
SSD interface : SATA III
SSD capacity : 480 GB
Hot-swap : Yes
Number of SSDs installed : 2

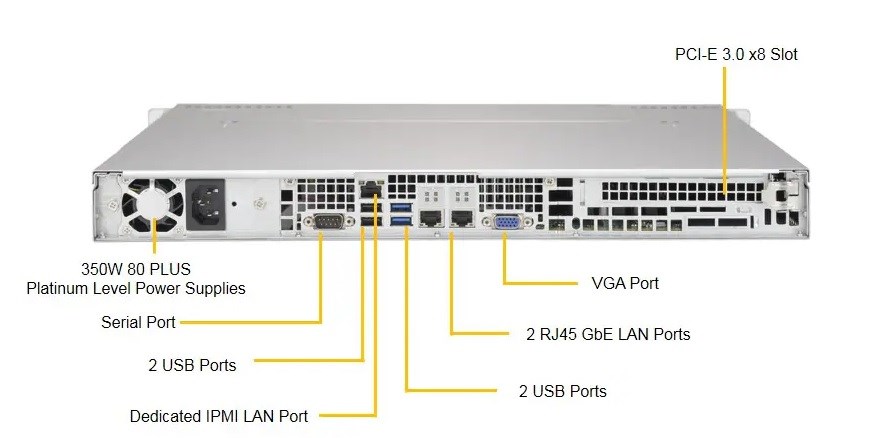

USB 2.0 ports quantity : 2
Serial ports quantity : 1
Ethernet LAN (RJ-45) ports : 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 3
Total number of SATA connectors : 6
VGA (D-Sub) ports quantity : 1
S/PDIF out port : No
Power cables quantity : 1
