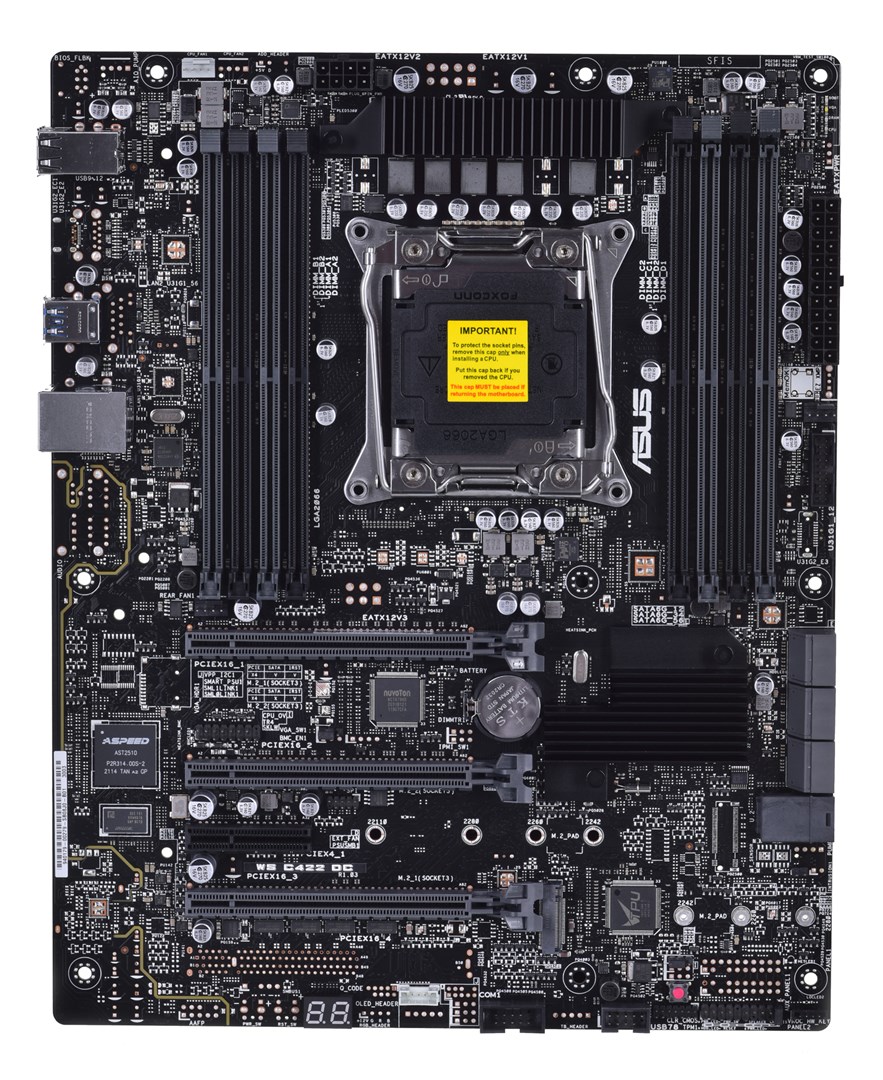

Description
Processor socket : LGA 2066
Processor manufacturer : Intel
Compatible processor series : Intel Xeon W
On-board graphics card model : Aspeed AST2510
Component for : Server
Motherboard chipset : Intel® C422
Motherboard form factor : ATX
Memory channels : Quad-channel
Number of DIMM slots : 8
Supported memory types : DDR4-SDRAM
Supported memory clock speeds : 2400, 2666, 2933, 2133
Maximum internal memory : 1 TB
Depth : 244 mm
Width : 305 mm
Ethernet LAN : Yes
LAN controller : Intel® I210-AT
Number of EATX power connectors : 1
CPU fan connector : Yes
VGA connectors : 1
COM ports quantity : 1
Number of M.2 (M) slots : 1
Clear CMOS button : Yes
12V power connector (8-pin) : Y
USB 2.0 connectors : 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors : 1
Power fan connector : Yes
Number of SATA connectors : 6
RAID levels : 10, 0, 5, 1
Supported storage drive interfaces : M.2, SATA III, U.2

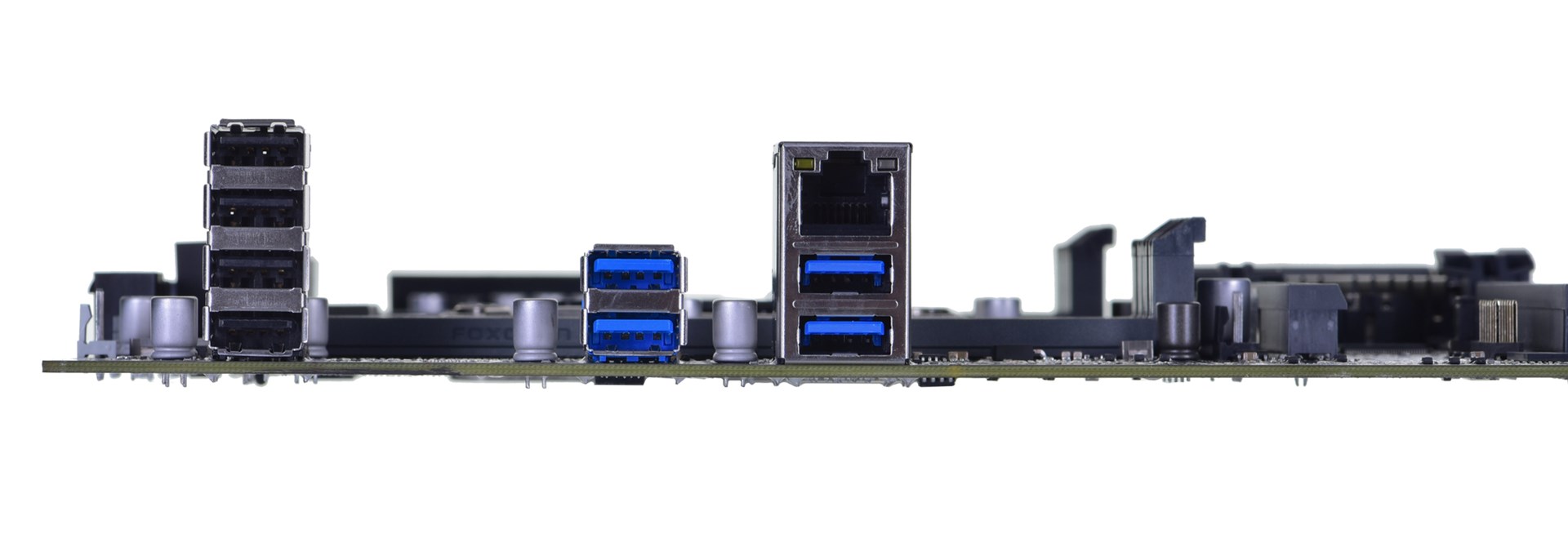

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 4
Ethernet LAN (RJ-45) ports : 1
USB 2.0 ports quantity : 3
PCI Express x4 (Gen 3.x) slots : 1
PCI Express x16 (Gen 3.x) slots : 3
Intel Rapid Storage Technology enterprise : Yes
Intel® Turbo Boost Technology : 2.0
Trusted Platform Module (TPM) : Yes
