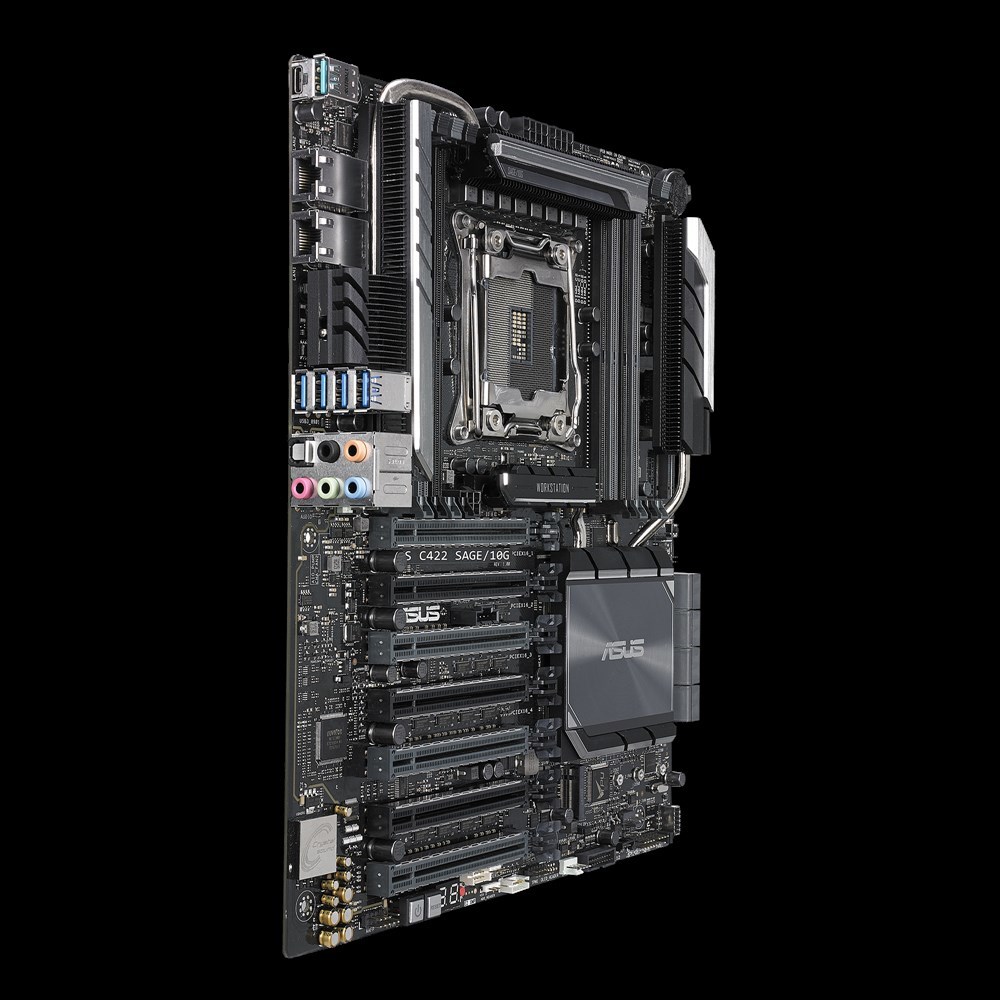

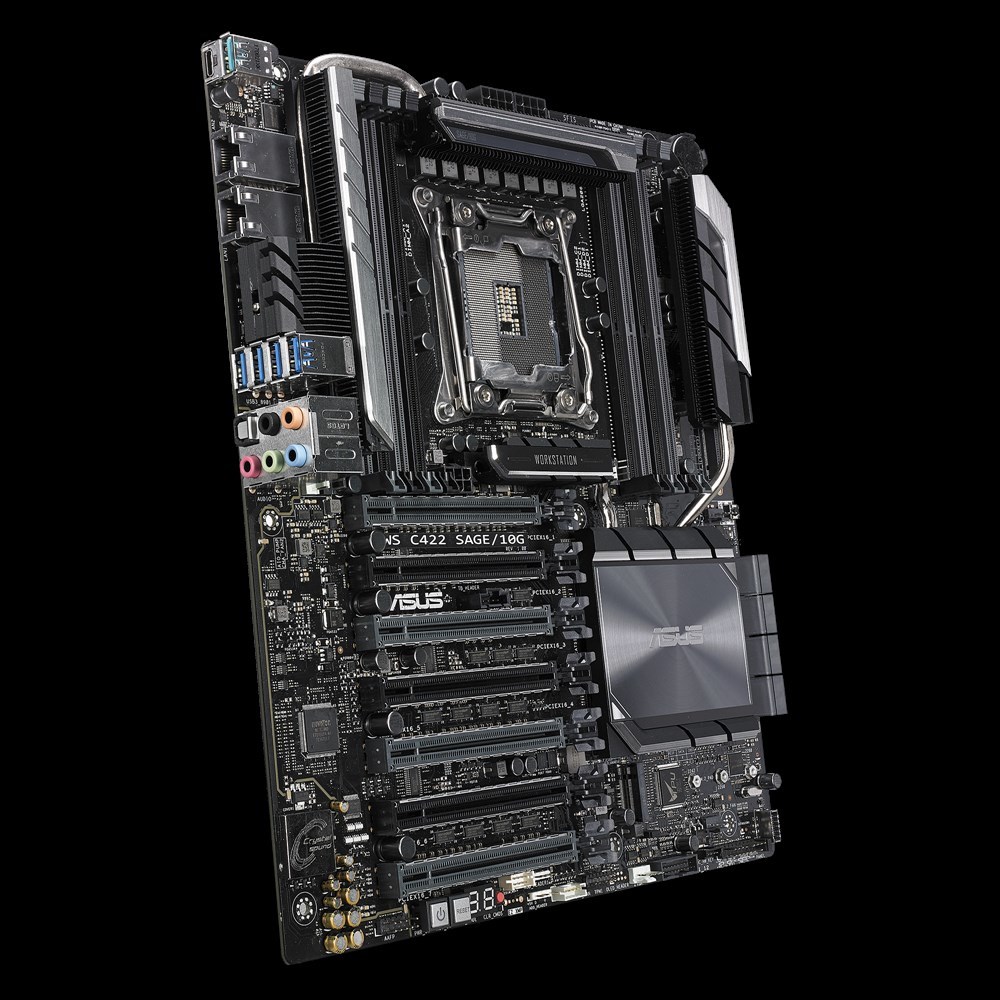

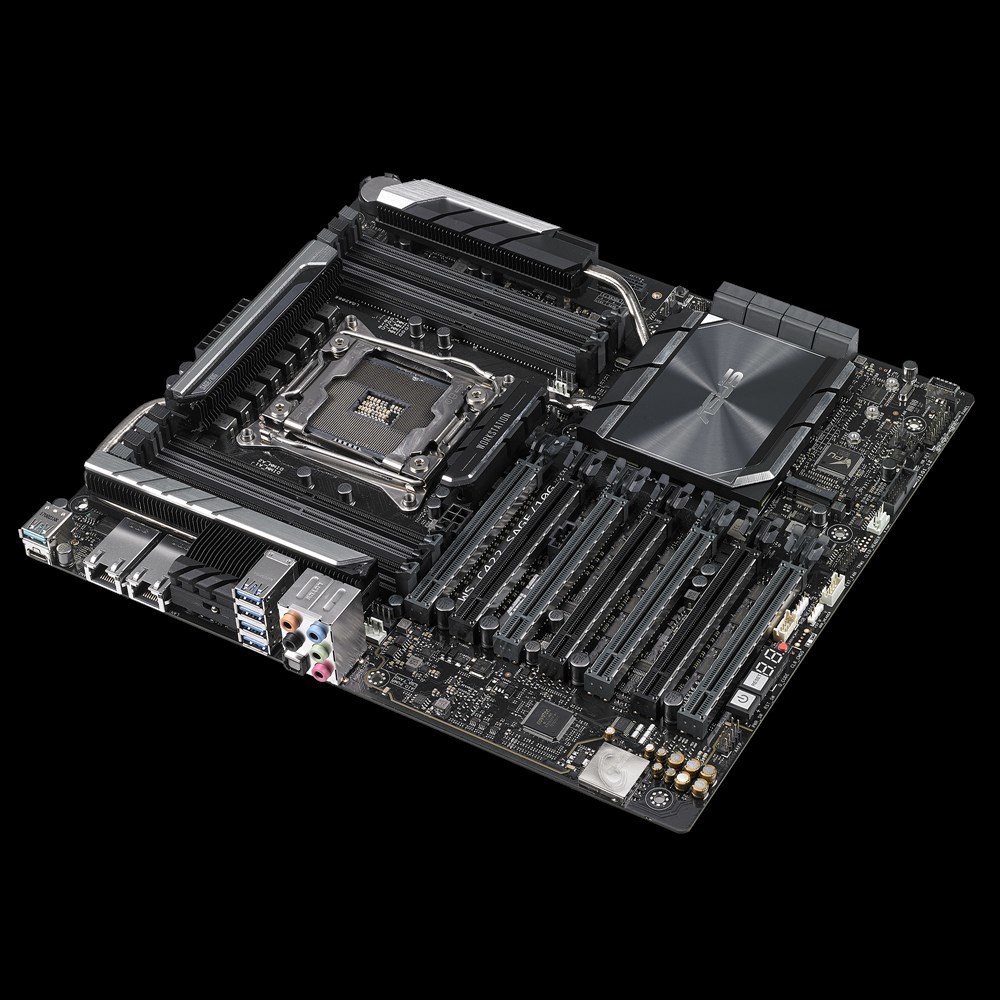

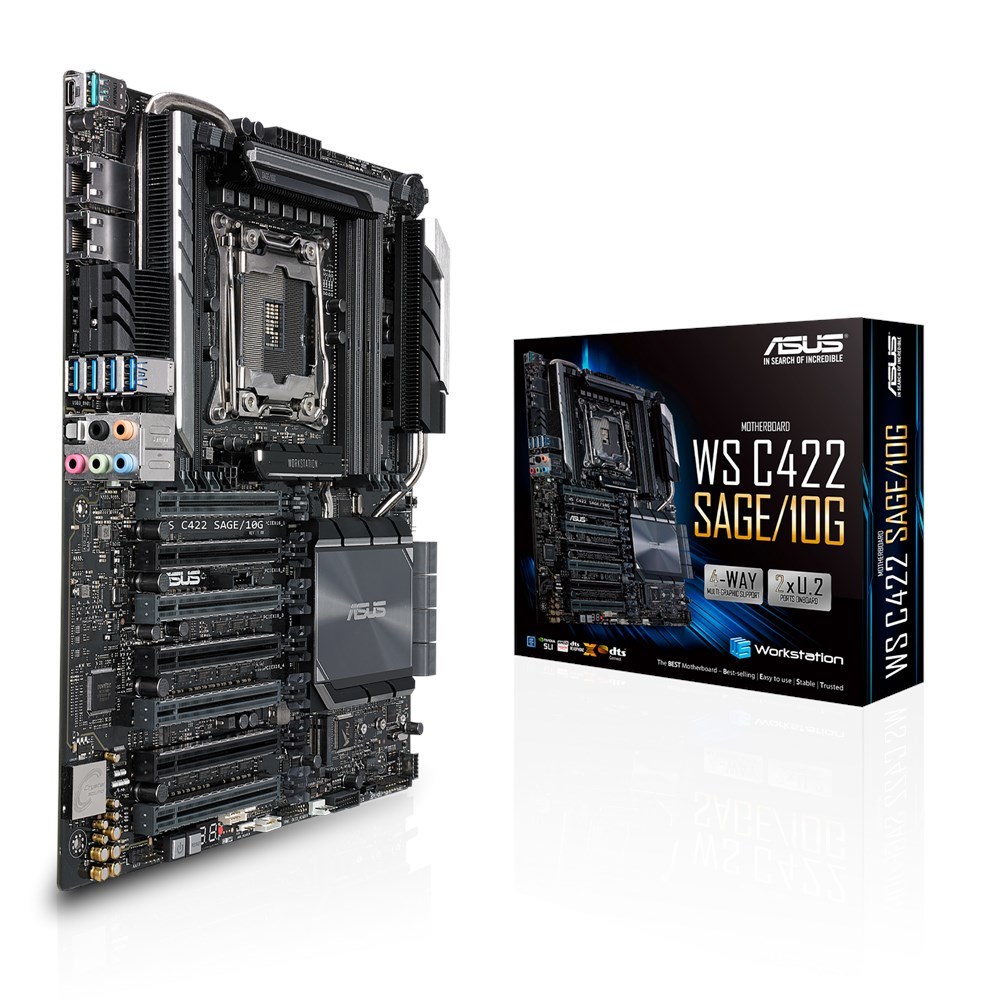

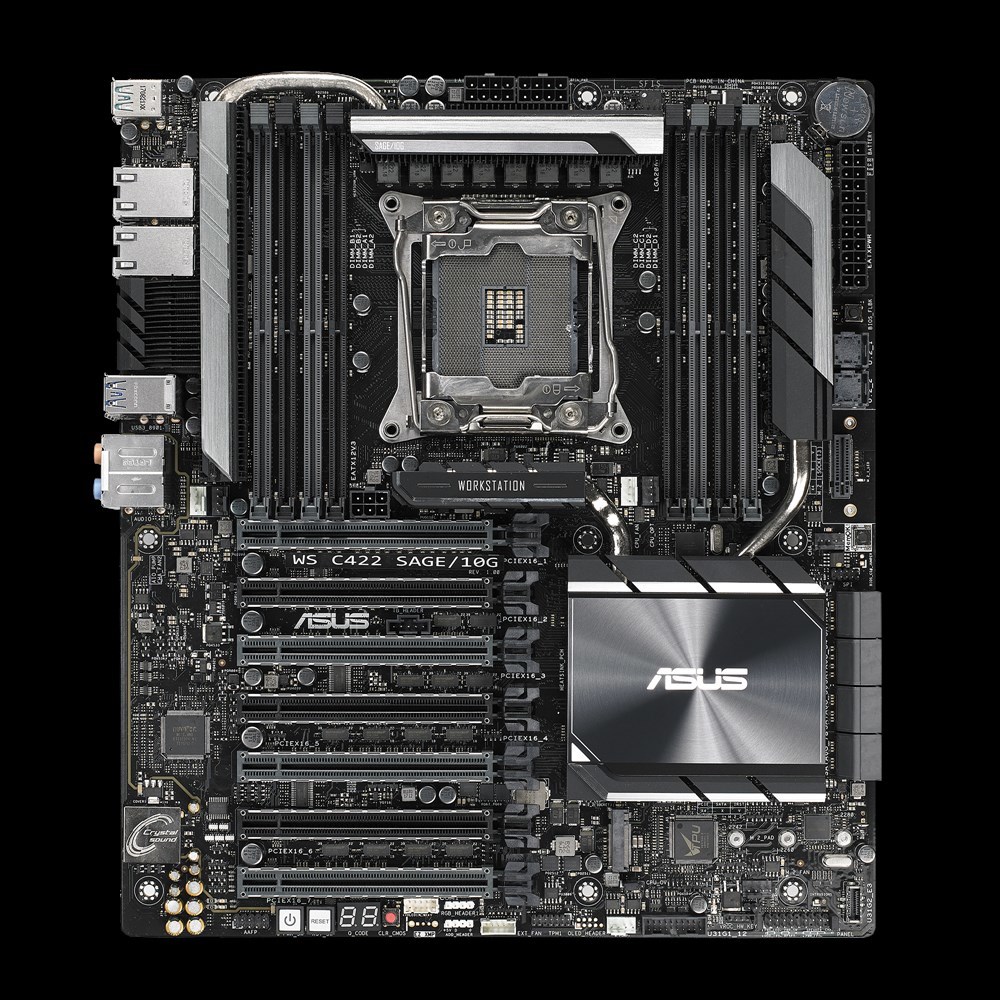

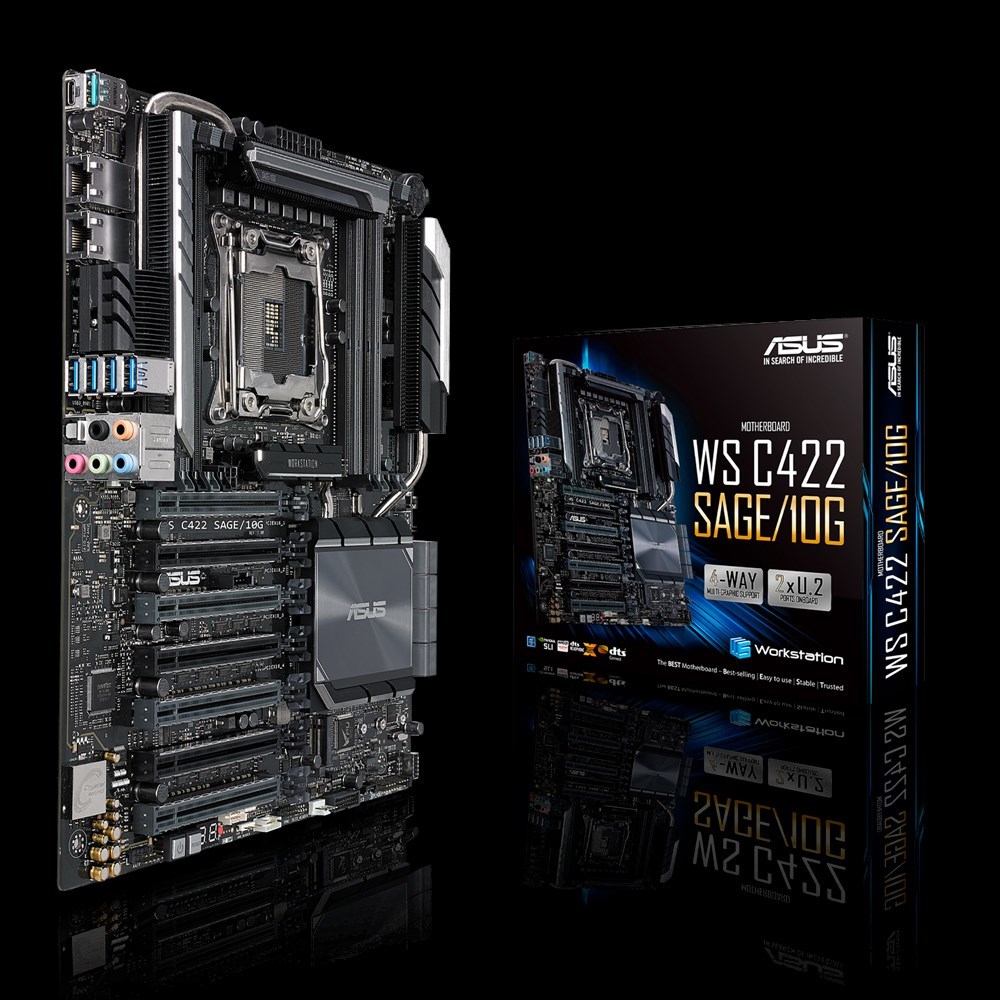

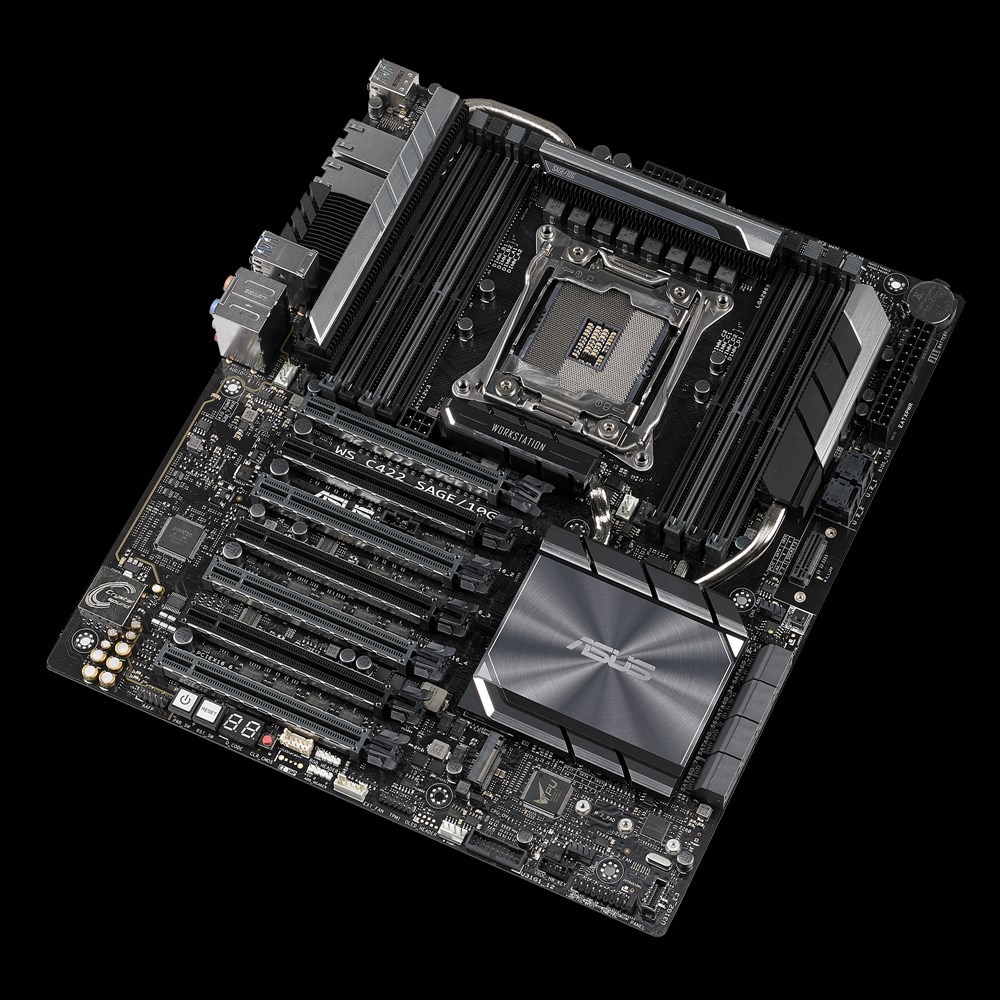

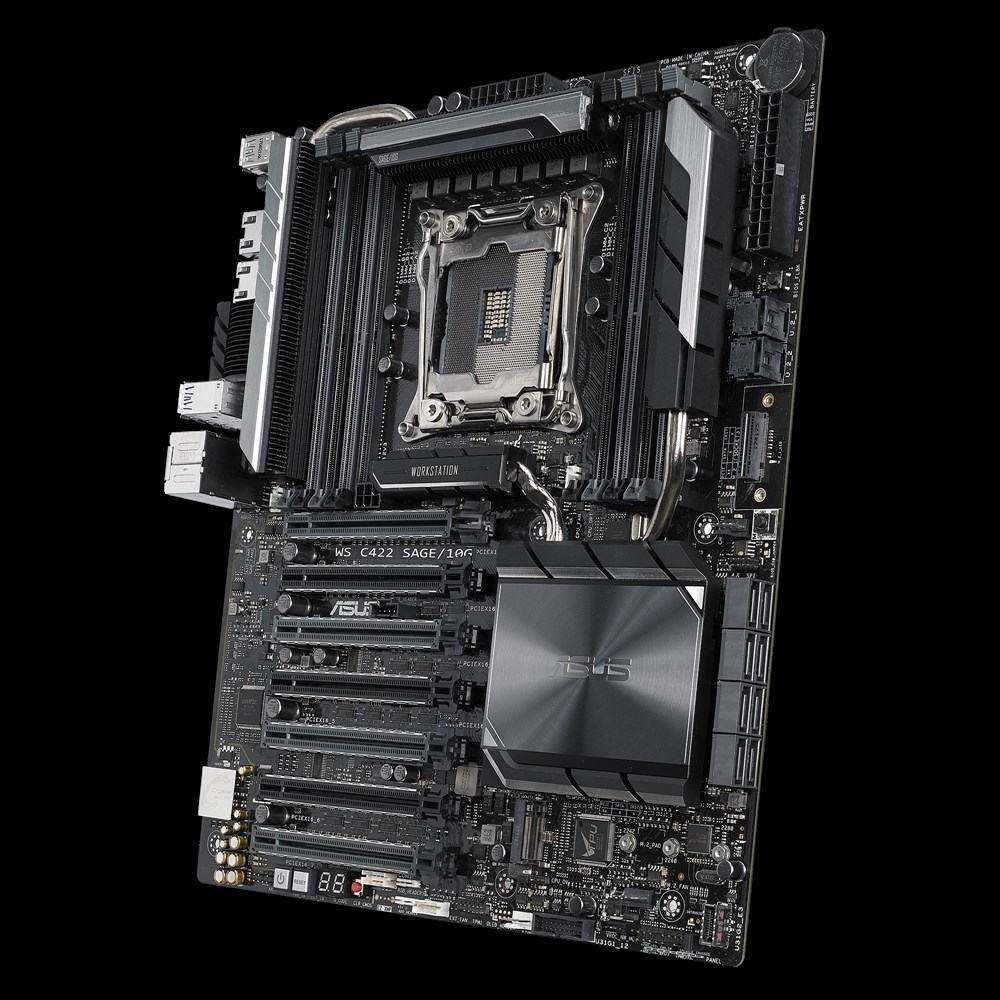

ASUS WS C422 SAGE/10G Intel® C422 LGA 2066 (Socket R4) CEB

Description

Lithography : 14 nm
Processor socket : LGA 2066 (Socket R4)
Processor manufacturer : Intel
Parallel processing technology support : 4-Way CrossFireX, 4-Way SLI
Motherboard chipset : Intel® C422
Audio output channels : 7.1 channels
Motherboard form factor : CEB
Audio chip : Realtek ALC S1220A
Motherboard chipset family : Intel
Component for : Workstation
Harmonized System (HS) code : 84733020
Supported memory clock speeds : 2400, 2133, 2666
Maximum internal memory : 512 GB
Supported memory types : DDR4-SDRAM
Memory channels : Quad-channel
Operating temperature (T-T) : 10 – 35 °C
Operating relative humidity (H-H) : 20 – 90%
Storage temperature (T-T) : -40 – 70 °C
Height : 300 mm
Depth : 267 mm
Width : 305 mm
LAN controller : Intel® X550-AT2
Wi-Fi : No
Ethernet interface type : 10 Gigabit Ethernet
Ethernet LAN : Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors : 1
Number of SATA III connectors : 8
ATX Power connector (24-pin) : Yes
Number of chassis fan connectors : 2
EPS power connector (8-pin) : Yes
CPU fan connector : Yes
Number of COM connectors : 1
TPM connector : Yes
Number of EATX power connectors : 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors : 1
BIOS type : UEFI
Clear CMOS button : Yes
Cables included : SATA
User guide : Yes
Supported storage drive interfaces : SATA III
RAID levels : 0, 1, 10, 5
RAID support : Yes

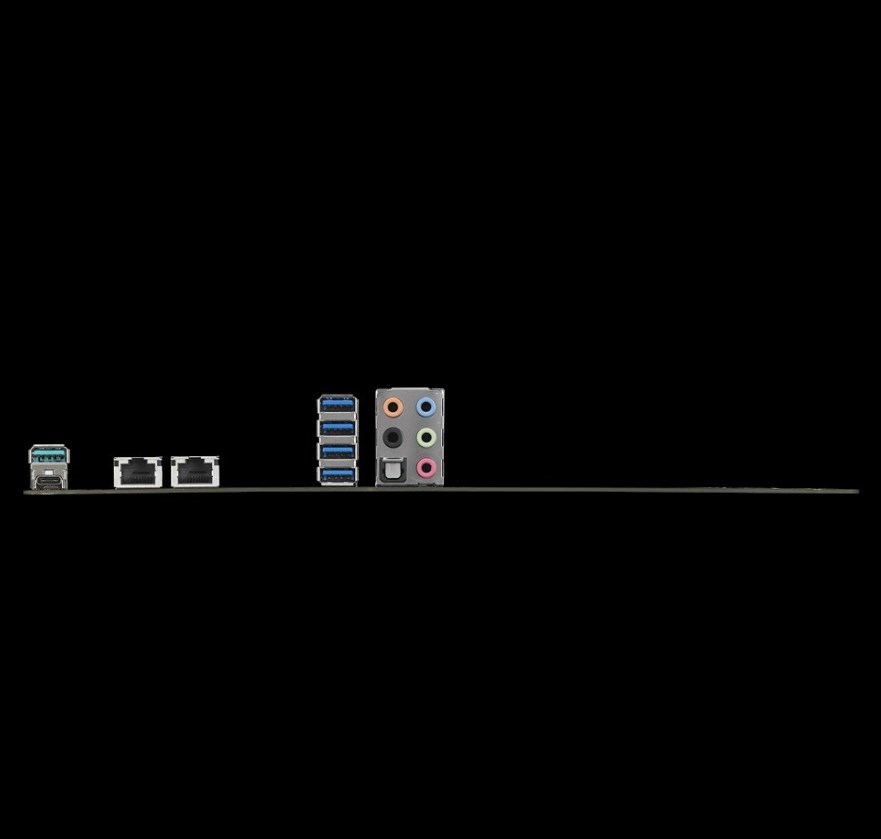

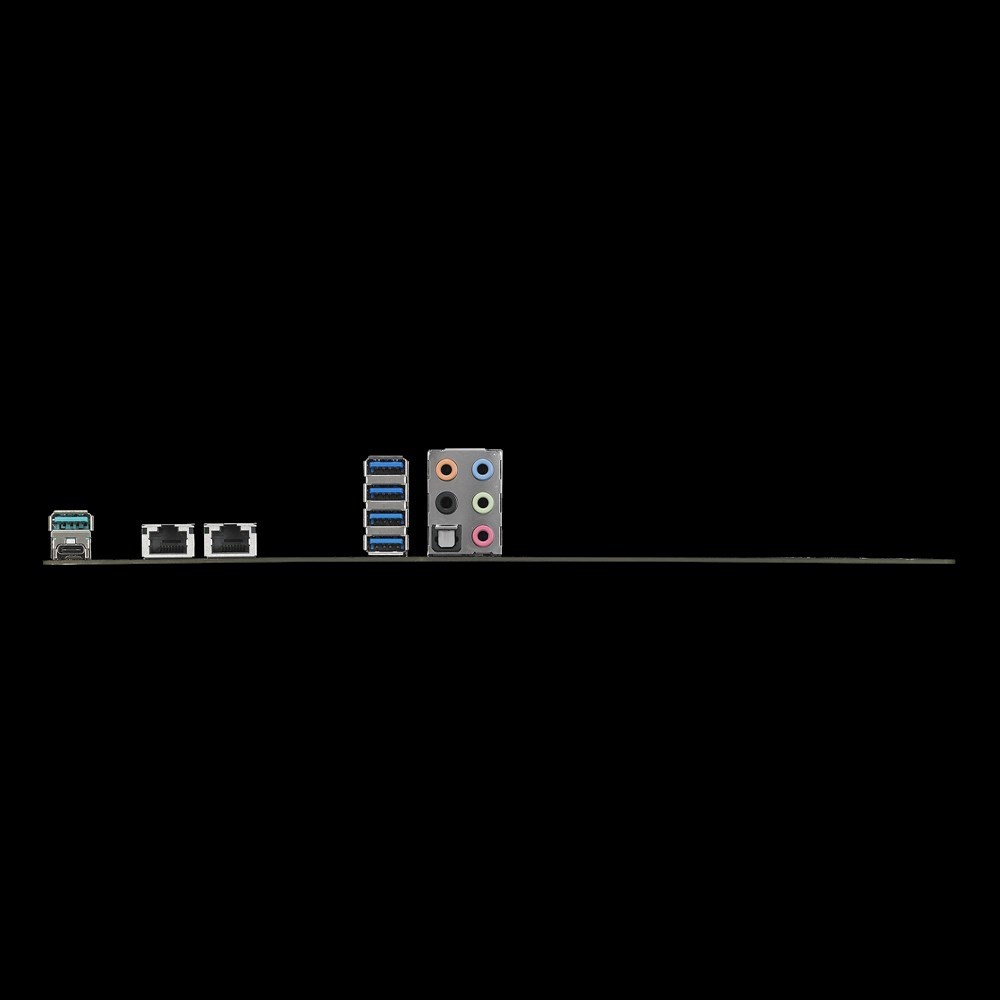

Ethernet LAN (RJ-45) ports : 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity : 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity : 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 4
PCI Express x16 (Gen 3.x) slots : 7
Number of M.2 (M) slots : 2
Number of processors supported : 1
Maximum LRDIMM memory : 512 GB
Weight : 2.24 kg
Number of DIMM slots : 8
