Actina 5901443345190 server 960 GB Rack (1U) Intel Xeon E E-2314 2.8 GHz 16 GB DDR4-SDRAM 350 W

Description

Processor model : E-2314
Processor manufacturer : Intel

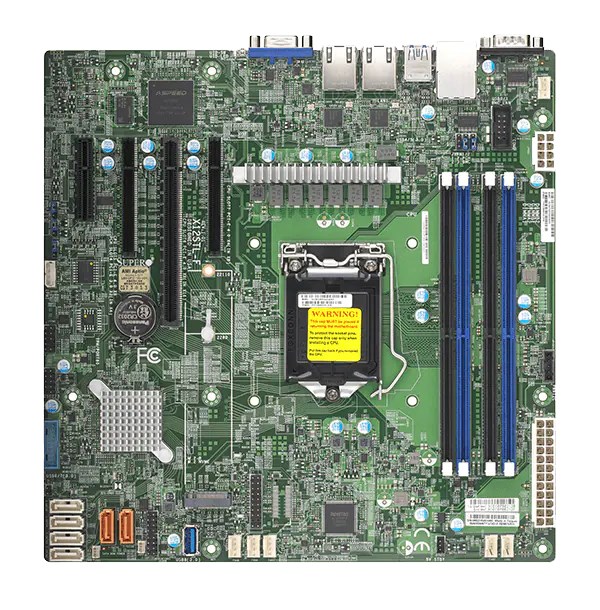

Motherboard chipset : Intel C252
Processor cores : 4
Processor frequency : 2.8 GHz
Processor cache : 8 MB
Processor family : Intel Xeon E
Processor boost frequency : 4.5 GHz
Number of processors installed : 1
On-board graphics card : Yes
On-board graphics card model : Aspeed AST2600
Maximum internal memory : 128 GB
Memory clock speed : 3200 MHz
Internal memory type : DDR4-SDRAM
Internal memory : 16 GB
Memory layout (slots x size) : 2 x 8 GB
Memory slots : 4x DIMM
Motherboard form factor : micro ATX

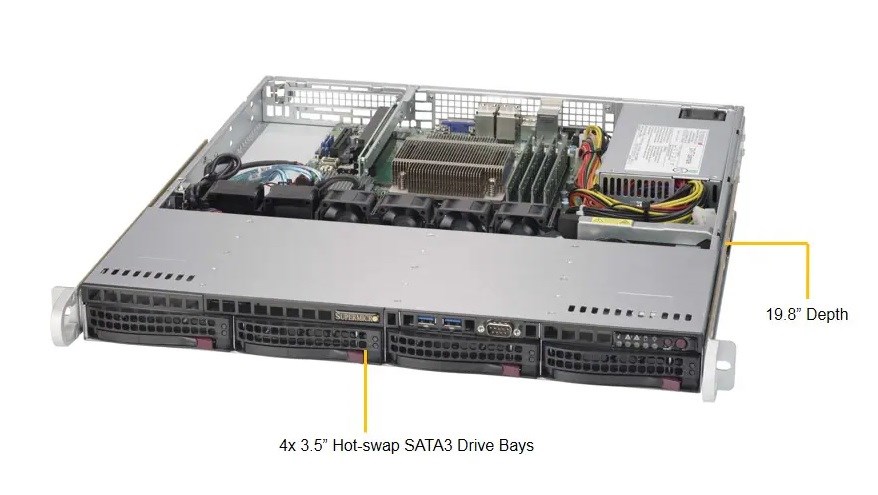

Chassis type : Rack (1U)
Rack mounting : Yes
Rack rails : Yes
Power supply : 350 W
Redundant power supply (RPS) support : No
Power supply input voltage : 100-240 V
Power cable length : 2 m
Number of main power supplies : 1
Power supply input frequency : 50-60 Hz
Operating temperature (T-T) : 0 – 50 °C
Operating relative humidity (H-H) : 10 – 85%
Storage relative humidity (H-H) : 10 – 95%
Storage temperature (T-T) : -20 – 60 °C
Height : 43 mm
Width : 437 mm
Depth : 503 mm
LAN controller : Intel I210
Cabling technology : 10/100/1000Base-T(X)
Number of LAN controllers : 1
Ethernet LAN : Yes
Wi-Fi : No
Ethernet interface type : Gigabit Ethernet
PCI Express x4 (Gen 3.x) slots : 1
PCI Express x8 (Gen 4.x) slots : 2
PCI Express x16 (Gen 4.x) slots : 1
Operating system installed : No
Optical drive type : No
Supported SSD sizes : 2.5"
RAID support : Yes
Total storage capacity : 960 GB
RAID levels : 0, 1, 10, 5
SSD size : 2.5"
Maximum storage capacity : 960 TB
Hot-swap : Yes
SSD capacity : 480 GB
SSD interface : SATA III
Number of SSDs installed : 2
Number of 5.25" bays : 1

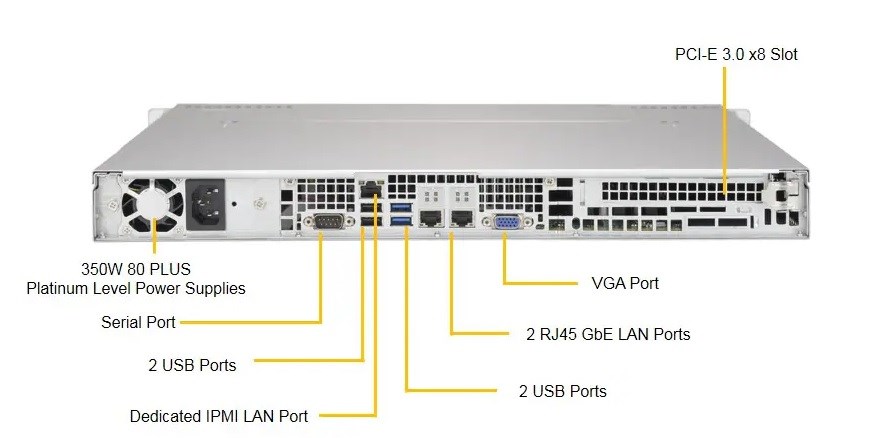

Ethernet LAN (RJ-45) ports : 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 3
Total number of SATA connectors : 6
Power cables quantity : 1
VGA (D-Sub) ports quantity : 1
Serial ports quantity : 1
USB 2.0 ports quantity : 2
S/PDIF out port : No
