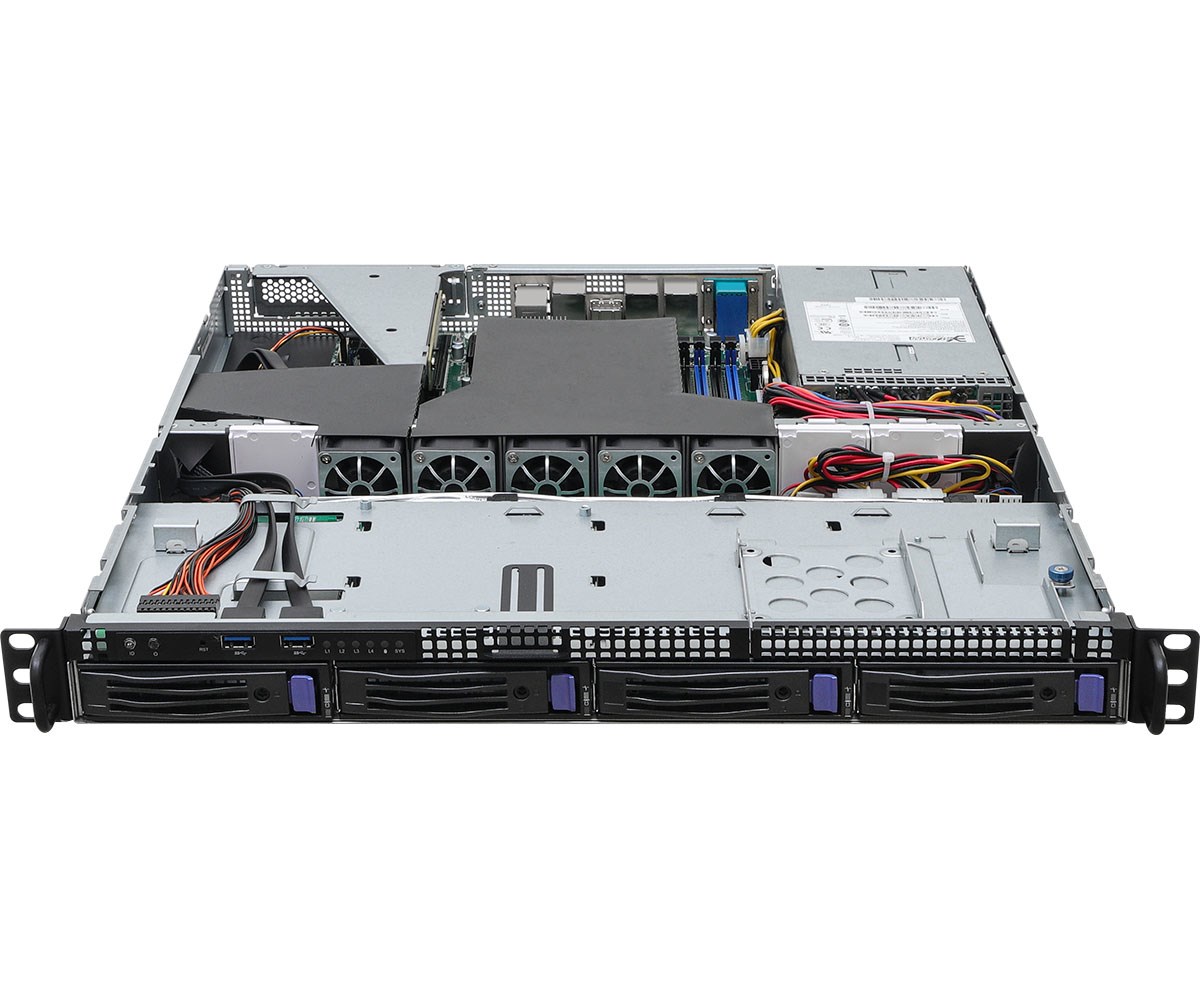

Asrock 1U4LW-B650/2L2T RPSU server barebone AMD B650 Socket AM5 Rack (1U)

Description

Built-in processor : No
Number of processors supported : 1
Processor manufacturer : AMD
Processor socket : Socket AM5
Motherboard chipset : AMD B650
Supported memory types : DDR5-SDRAM
Buffered memory type : Unregistered (unbuffered)
Supported UDIMM clock speeds : 5200 MHz
Maximum UDIMM memory : 32 GB
Number of DIMM slots : 4
Memory form factor : 288-pin DIMM
Memory voltage : 1.1
Hot-swap fan module : Yes
Chassis type : Rack (1U)
Number of fans : 40 fan(s)
Power supply : 450 W
Number of main power supplies : 1
AC input frequency : 50 – 60 Hz
Redundant power supply (RPS) support : Yes
Number of redundant power supplies supported : 1
AC input voltage : 100 – 240 V
Storage temperature (T-T) : -40 – 70 °C
Operating temperature (T-T) : 10 – 35 °C
Storage relative humidity (H-H) : 20 – 90%
Depth : 533.4 mm
Height : 44.4 mm
Width : 438 mm
Plug and Play : Yes
BIOS memory size : 256 Mbit
BIOS type : UEFI AMI
System Management BIOS (SMBIOS) version : 3.5
ACPI version : 6.4
PCI Express x16 (Gen 4.x) slots : 1
Number of storage drives supported : 4
Number of 3.5" bays : 4
Hot-swap HDD bays : Yes
Storage drive sizes supported : 3.5"
VGA (D-Sub) ports quantity : 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 4
COM ports quantity : 1
Ethernet LAN (RJ-45) ports : 4
IPMI LAN (RJ-45) port : Yes
Warnings : Do not throw into regular trash, product requires special disposal., The product may contain components that are harmful to health, use caution when handling., Do not disassemble the unit yourself.
