Description
Processor manufacturer : AMD
Compatible processor series : AMD Ryzen 9000 Series, AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Supported processor sockets : Socket AM5
Processor socket : Socket AM5
Graphics card family : ASPEED
Graphics card : AST2600
Component for : Server
Windows operating systems supported : Windows 11 x64, Windows 10 x64
Linux operating systems supported : Ubuntu 22.04

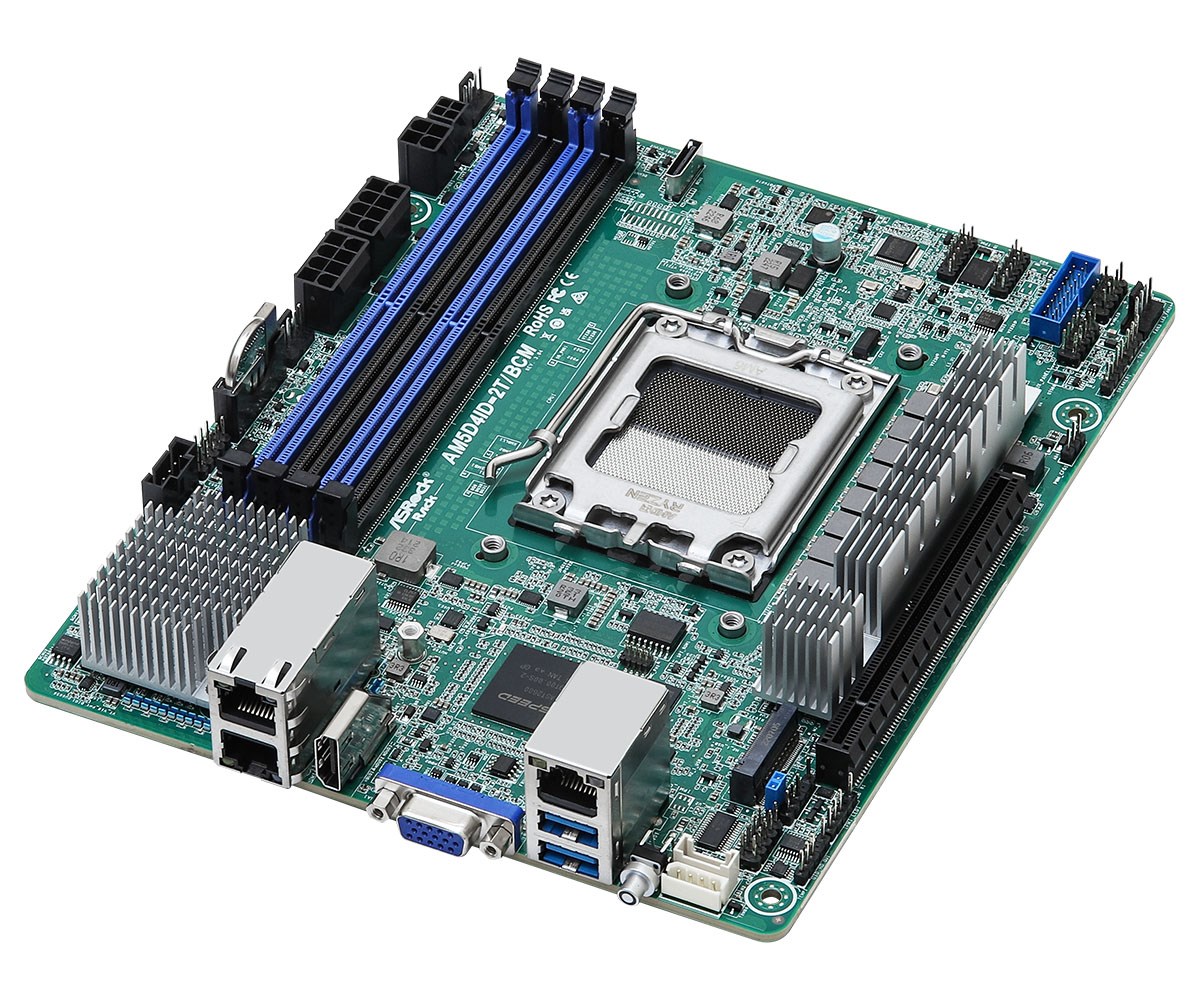

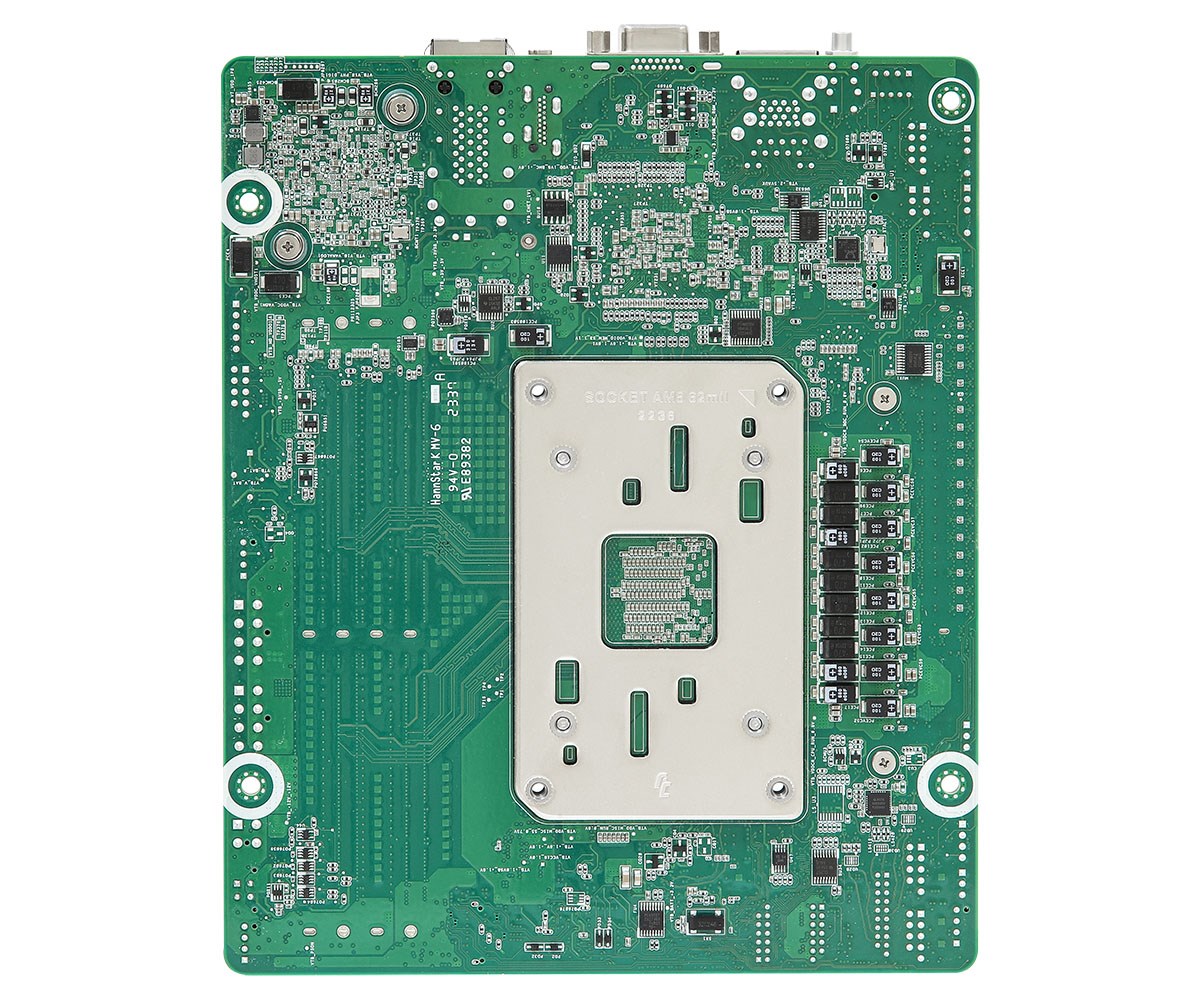

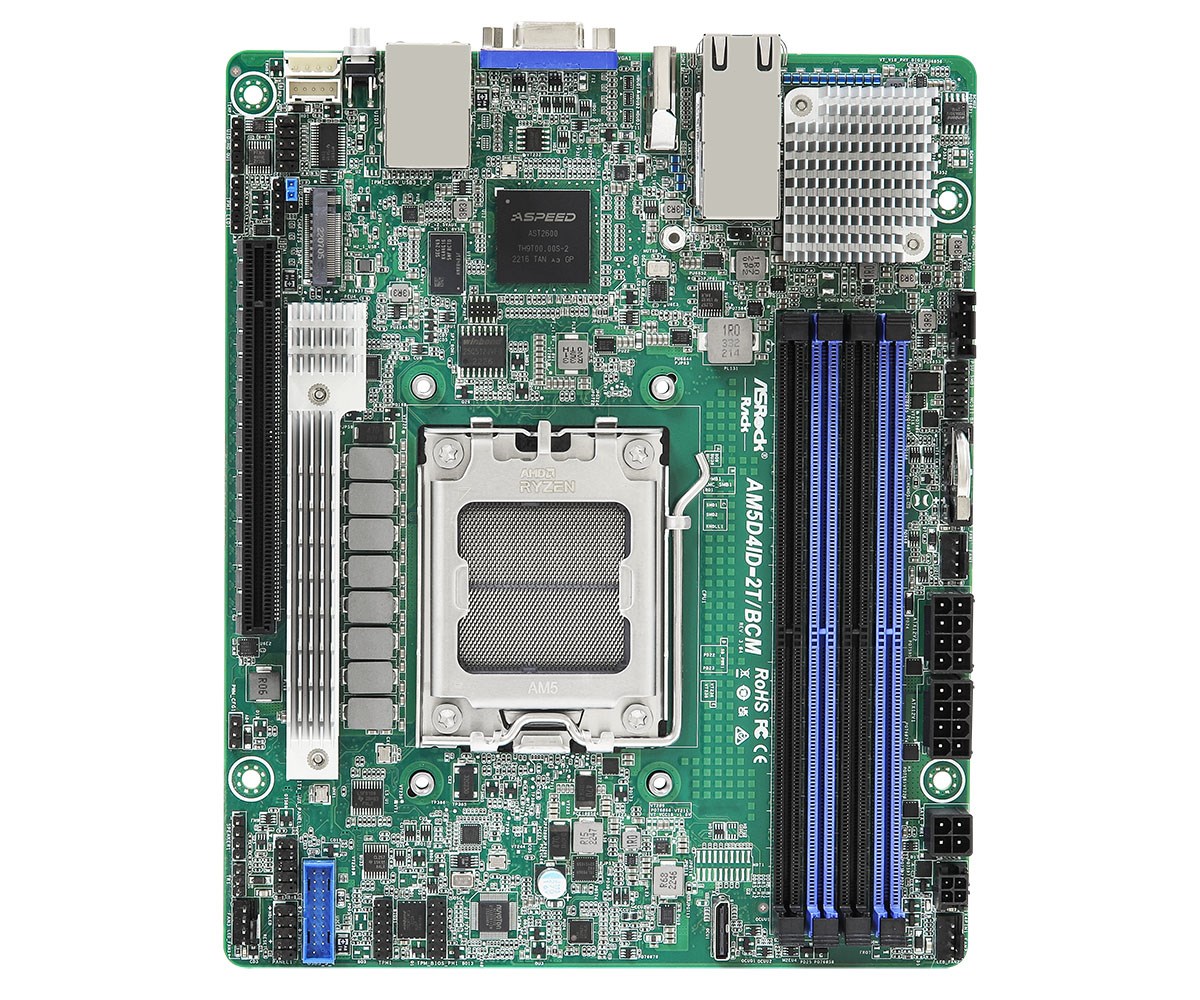

Motherboard form factor : mini ITX
Motherboard chipset : KNOLL3 X300
Motherboard chipset family : AMD
ECC сompatibility : ECC & Non-ECC
Supported memory clock speed (max) : 5200 MHz
Number of memory slots : 4
Memory voltage : 1.1 V
Supported memory types : DDR5-SDRAM
Memory slots type : DIMM
Supported memory clock speeds : 3600, 5200
Operating temperature (T-T) : 10 – 35 °C
Storage relative humidity (H-H) : 20 – 90%
Storage temperature (T-T) : -40 – 70 °C
Width : 170.2 mm
Depth : 208.3 mm
Ethernet LAN : Yes
Ethernet interface type : 10 Gigabit Ethernet
LAN controller : Broadcom BCM57416
Number of COM connectors : 1
ATX Power connector (24-pin) : Yes
12V power connector : Yes
Chassis intrusion connector : Yes
TPM connector : Yes
Audio connector : Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors : 2
BIOS type : UEFI AMI
BIOS memory size : 256 Mbit
ACPI version : 5.1
System Management BIOS (SMBIOS) version : 2.3
Supported storage drive interfaces : M.2
Supported storage drive types : SSD

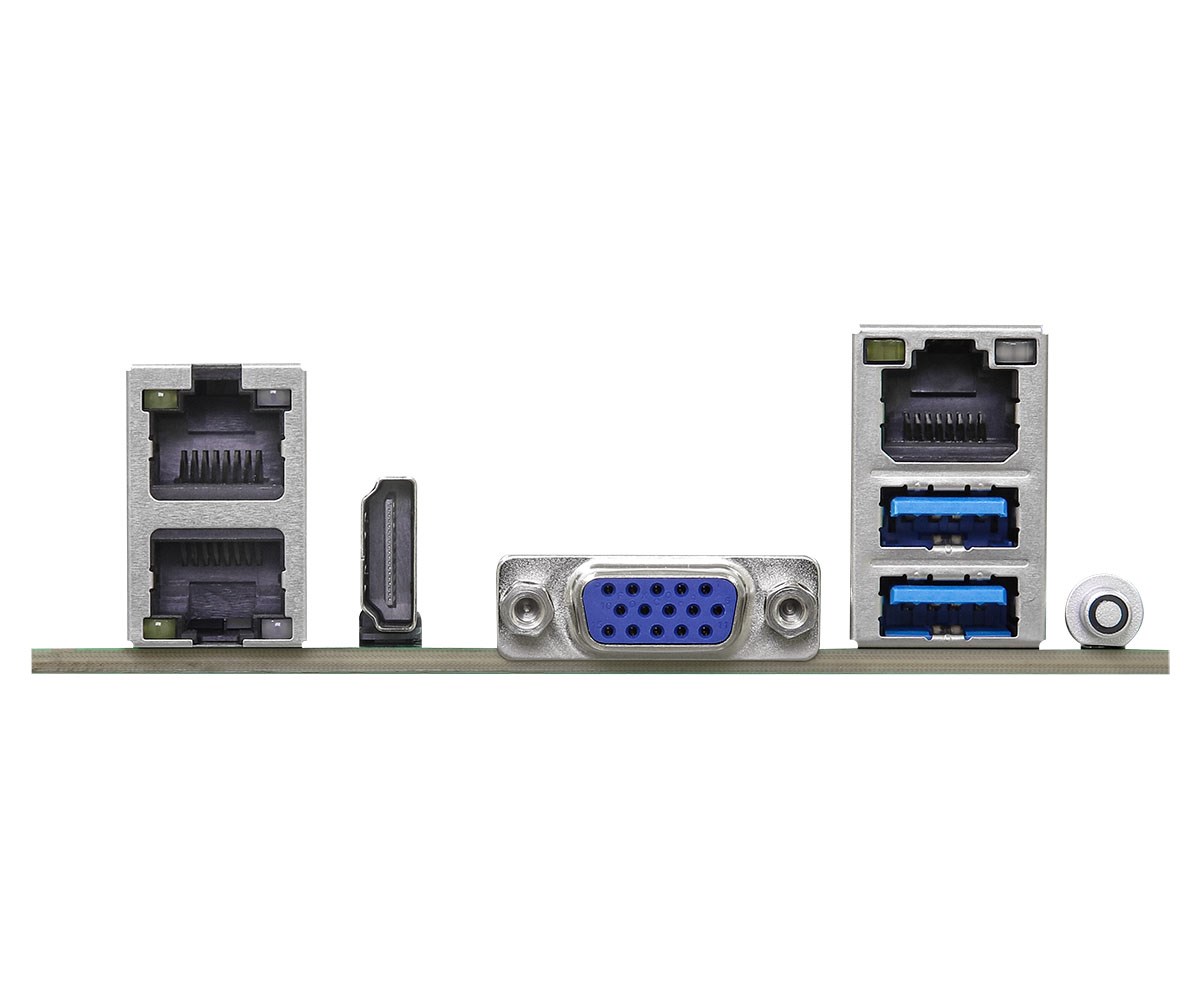

Ethernet LAN (RJ-45) ports : 2
VGA (D-Sub) ports quantity : 1
HDMI ports quantity : 1
IPMI LAN (RJ-45) port : Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 2
PCI Express x16 (Gen 5.x) slots : 1
Number of M.2 (M) slots : 1
Warnings : The motherboard may contain electronic components hazardous to health – avoid direct contact., Do not open or disassemble the motherboard., Use only in a dry and well-ventilated area.
