Description
Compatible processor series : AMD Ryzen™ 5, AMD Ryzen™ 3
Processor manufacturer : AMD
Processor socket : Socket AM5
Maximum number of SMP processors : 1
On-board graphics card model : Aspeed AST2600
Motherboard chipset : AMD B650 Express
PC health monitoring : CPU, Fan, Voltage
Component for : Server
Motherboard form factor : micro ATX
Motherboard chipset family : AMD
Supported memory clock speeds : 5200, 3600
Memory slots type : DIMM
Supported memory types : DDR5-SDRAM
Maximum internal memory : 32 GB
Memory voltage : 1.1 V
Number of memory slots : 4
ECC сompatibility : ECC & Non-ECC
Supported memory clock speed (max) : 5200 MHz
Operating relative humidity (H-H) : 20 – 90%
Operating temperature (T-T) : 10 – 35 °C
Storage temperature (T-T) : -40 – 70 °C
Width : 243.8 mm
Depth : 243.8 mm
Ethernet LAN : Yes
Wi-Fi : No
ATX Power connector (24-pin) : Yes
Number of COM connectors : 1
Number of SATA III connectors : 4
EPS power connector (8-pin) : Yes
TPM connector : Yes
BIOS memory size : 256 Mbit
BIOS type : UEFI AMI
System Management BIOS (SMBIOS) version : 3.5
Clear CMOS jumper : Yes
ACPI version : 6.4
Supported storage drive interfaces : M.2, SATA III
RAID levels : 10, 1, 0
RAID support : Yes

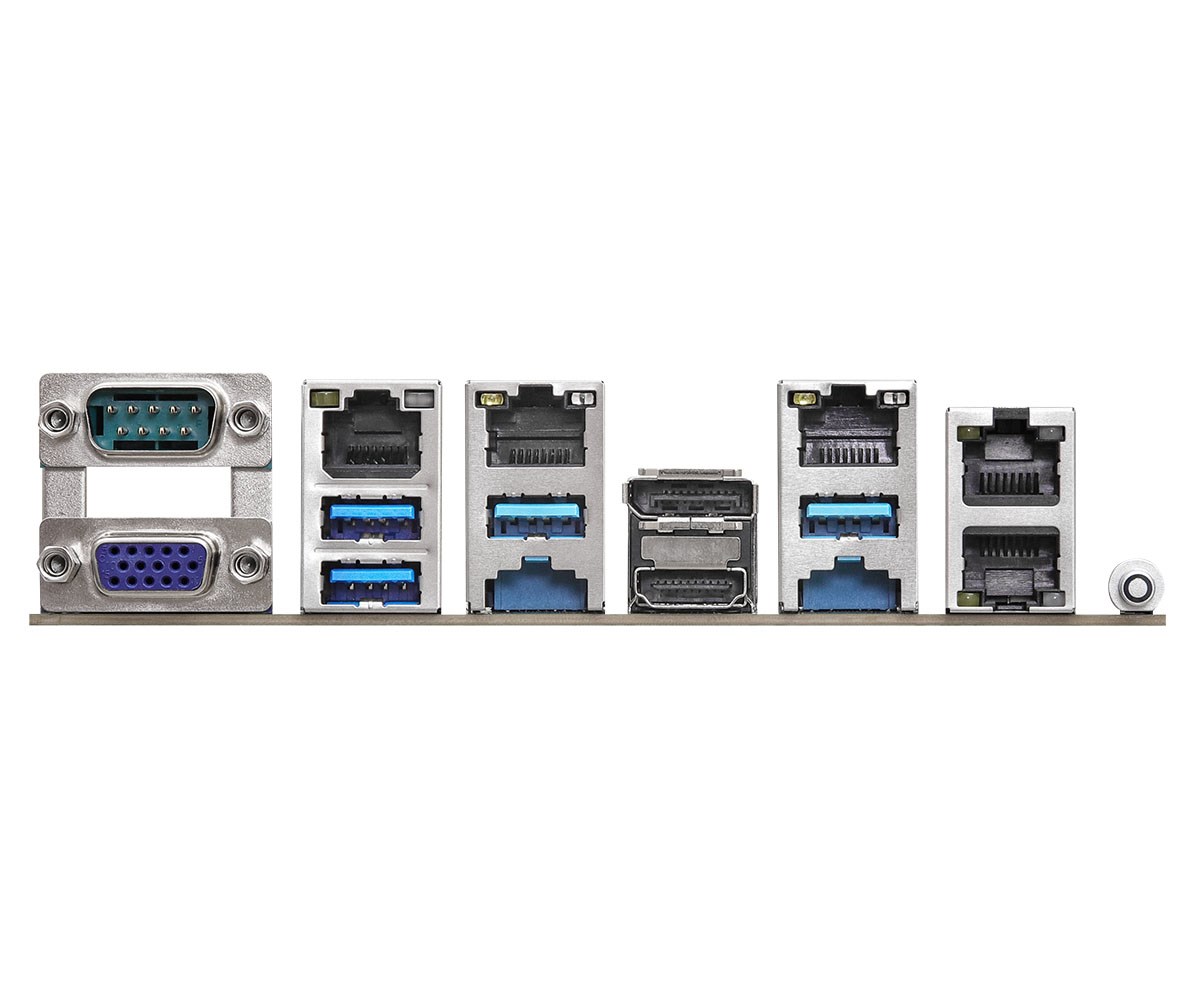

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 4
Ethernet LAN (RJ-45) ports : 4
DisplayPorts quantity : 1
HDMI ports quantity : 1
IPMI LAN (RJ-45) port : Yes
VGA (D-Sub) ports quantity : 1
Serial ports quantity : 1
PCI Express x4 (Gen 4.x) slots : 1
Warnings : Use only in a dry and well-ventilated area., The motherboard may contain electronic components hazardous to health – avoid direct contact., Do not open or disassemble the motherboard.
