Description
Sustainability certificates : Federal Communications Commission (FCC), CE
Processor manufacturer : Intel
Compatible processor series : Intel Xeon W, Intel® Xeon®
Processor socket : LGA 4189
On-board graphics card : Yes
Graphics card family : ASPEED
Graphics card : AST2500
Component for : PC
Power source type : ATX
Motherboard chipset : Intel C621A
Motherboard chipset family : Intel
Motherboard form factor : ATX
Supported memory clock speeds : 2933, 2400, 3200, 2666, 1866, 2133
Memory channels : Octa-channel
Maximum internal memory : 256 GB
Supported memory types : DDR4-SDRAM
Number of memory slots : 8
Memory slots type : DIMM
Depth : 244 mm
Width : 305 mm
Ethernet interface type : 5 Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wake-on-LAN ready : Yes
LAN controller : Intel X710-AT2, Intel I210
Ethernet LAN : Yes
Number of SATA III connectors : 2
Power fan connector : Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors : 4
ATX Power connector (24-pin) : Yes
Peripheral (Molex) power connectors (4-pin) : 1
EPS power connector (8-pin) : Yes
TPM connector : Yes
Number of COM connectors : 1
Number of chassis fan connectors : 5
USB 3.2 Gen 1 (3.1 Gen 1) connectors : 1
USB 2.0 connectors : 1
BIOS memory size : 256 Mbit
System Management BIOS (SMBIOS) version : 2.3
BIOS type : AMI
ACPI version : 5.0
Drivers included : Yes
Cables included : SAS, SATA
RAID levels : 5, 0, 10, 1
RAID support : Yes
Supported storage drive interfaces : PCI Express 4.0

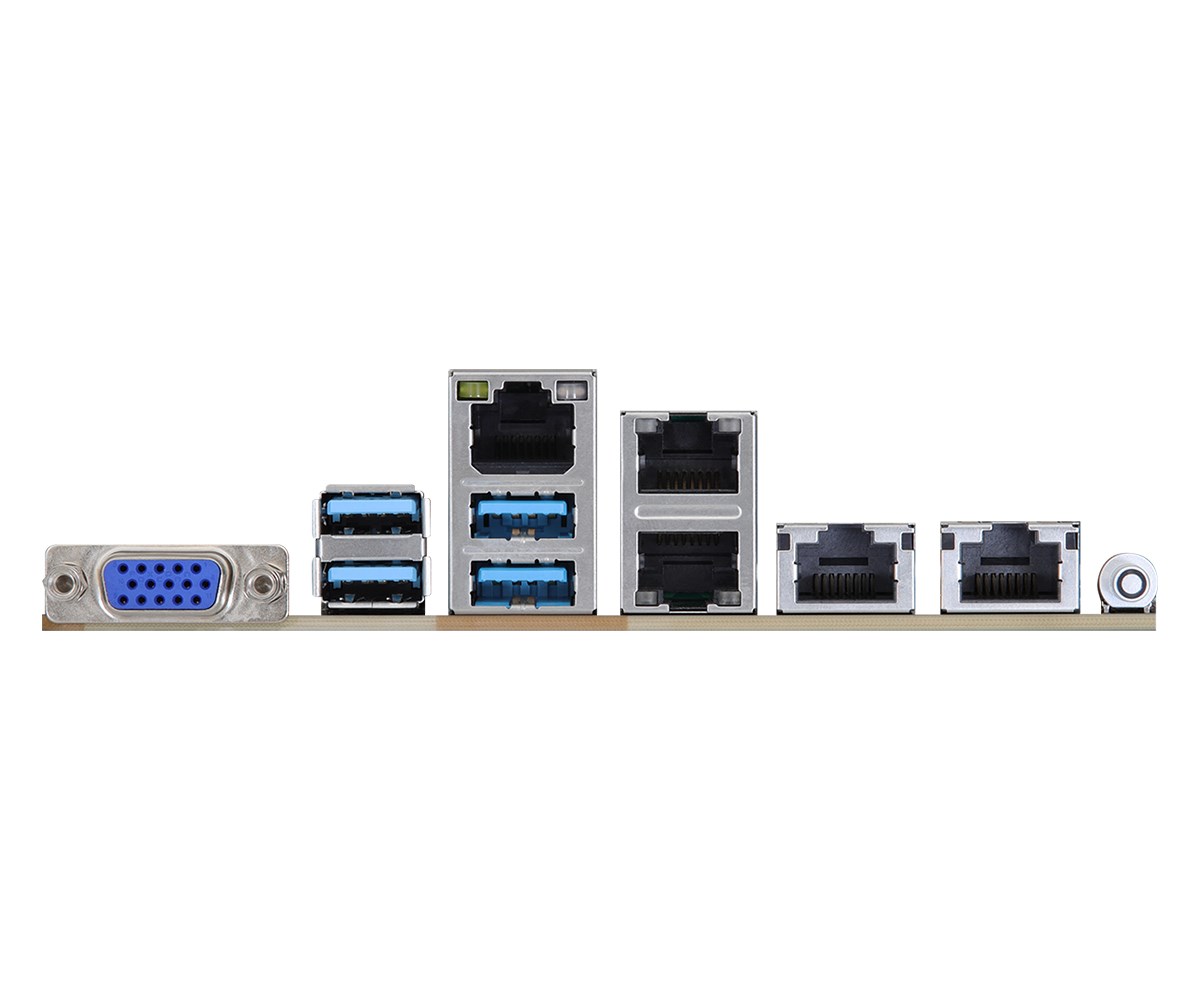

VGA (D-Sub) ports quantity : 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 4
Ethernet LAN (RJ-45) ports : 5
IPMI LAN (RJ-45) port : Yes
PCI Express x8 slots : 3
Number of M.2 (M) slots : 1
PCI Express x16 slots : 4
Number of Ultra M.2 (M) slots : 1
