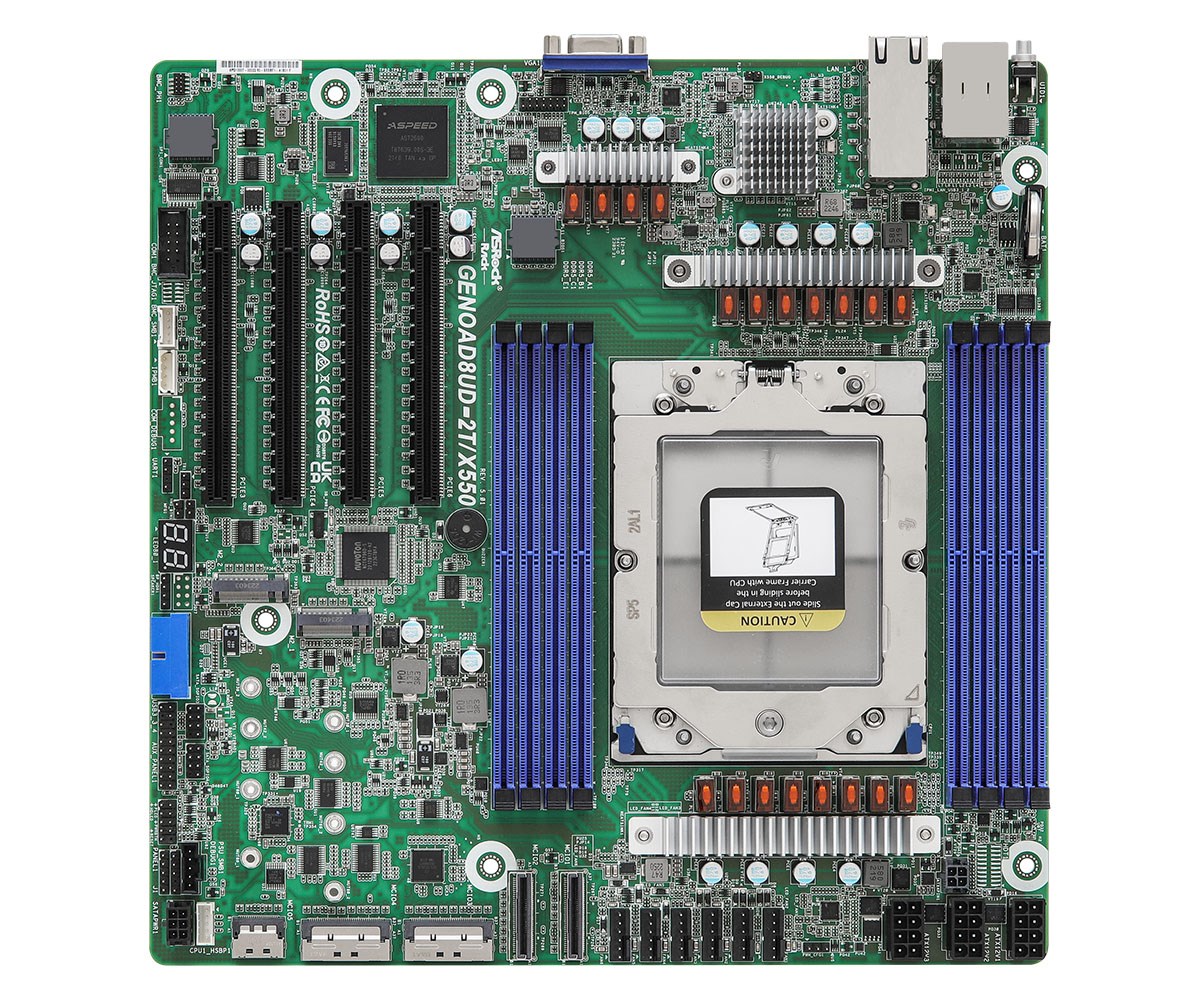

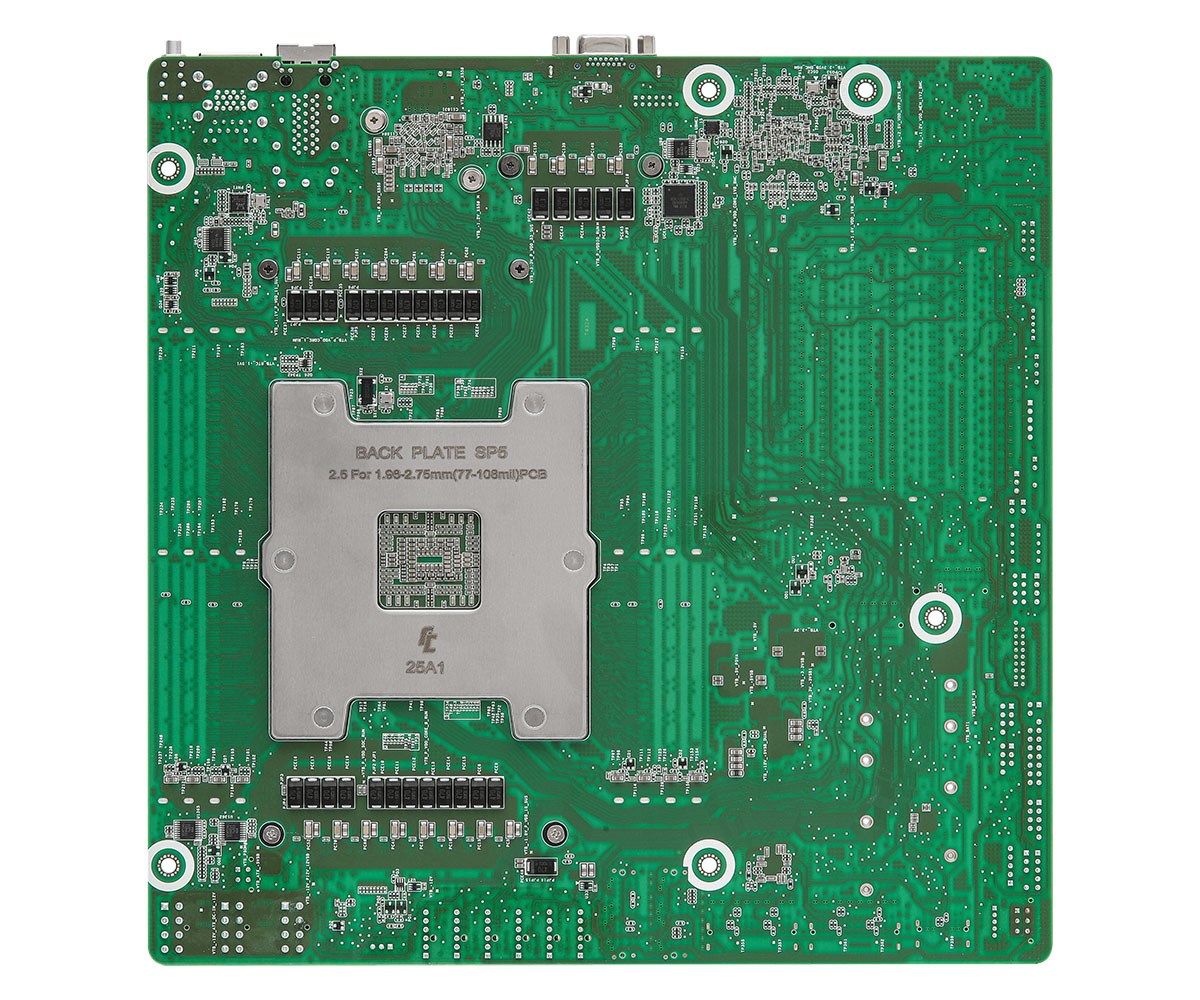

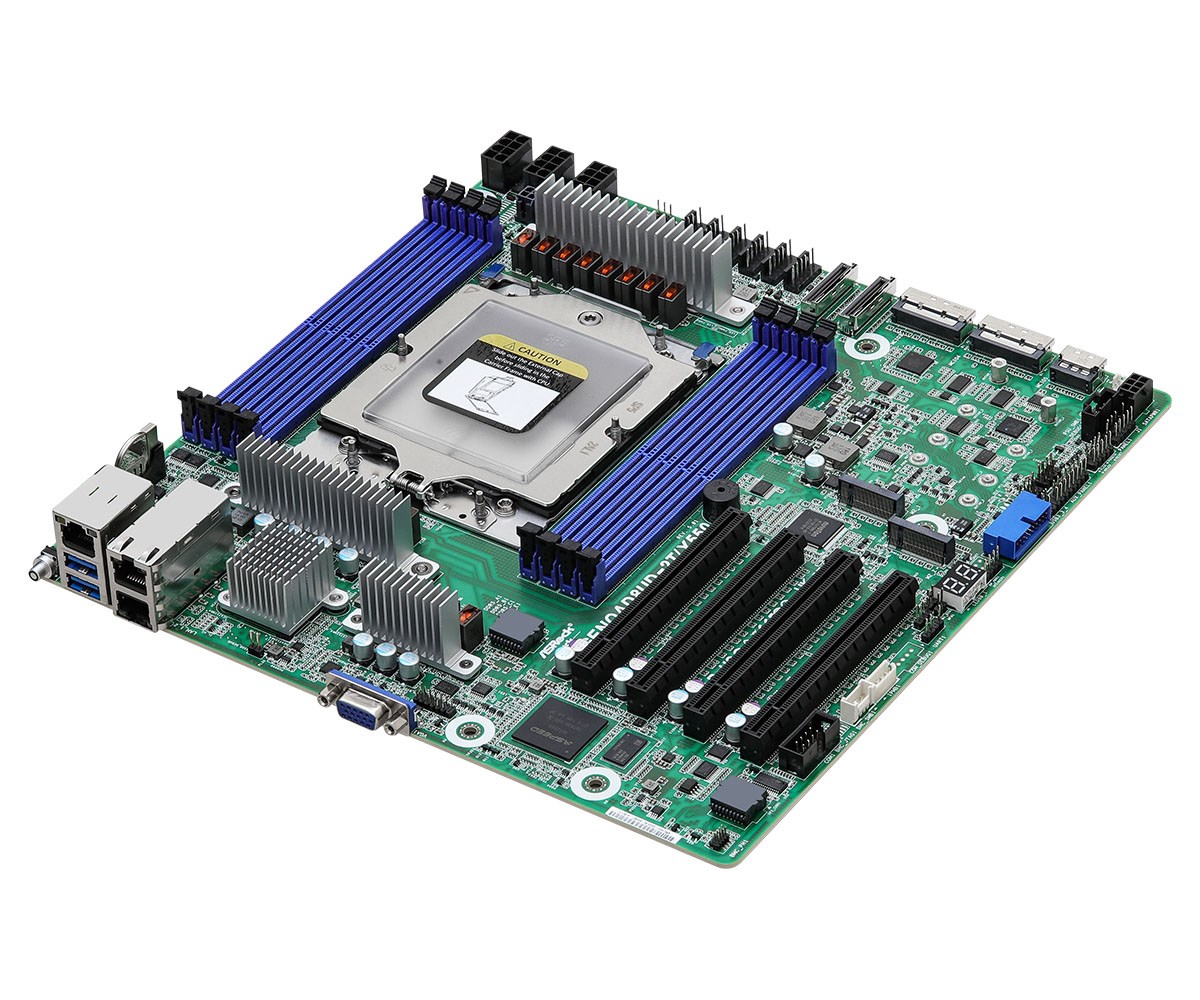

Asrock GENOAD8UD-2T/X550 motherboard Socket SP5 micro ATX

Description

Compatible processor series : AMD EPYC 9004
Supported processor sockets : Socket SP5
Processor manufacturer : AMD
Processor socket : Socket SP5
Graphics card family : ASPEED
Graphics card : AST2600
Motherboard form factor : micro ATX
Motherboard chipset family : AMD
Component for : Server
Supported memory clock speed (max) : 4800 MHz
Supported memory types : DDR5-SDRAM
Memory slots type : DIMM
Supported memory clock speeds : 4800 MHz
Number of memory slots : 8
Memory voltage : 1.1
Storage relative humidity (H-H) : 20 – 90%
Operating temperature (T-T) : 10 – 35 °C
Storage temperature (T-T) : -40 – 70 °C
Width : 264.2 mm
Depth : 266.7 mm
Ethernet LAN : Yes
LAN controller : Intel® X550-AT2
Ethernet interface type : 10 Gigabit Ethernet
Number of SATA III connectors : 16
Number of COM connectors : 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors : 2
TPM connector : Yes
Chassis intrusion connector : Yes
ATX Power connector (24-pin) : Yes
Audio connector : Yes
12V power connector : Yes
BIOS type : UEFI AMI
BIOS memory size : 256 Mbit
System Management BIOS (SMBIOS) version : 3.5
ACPI version : 6.4
Supported storage drive interfaces : M.2, PCI Express 5.0, SATA III
Supported storage drive types : HDD & SSD

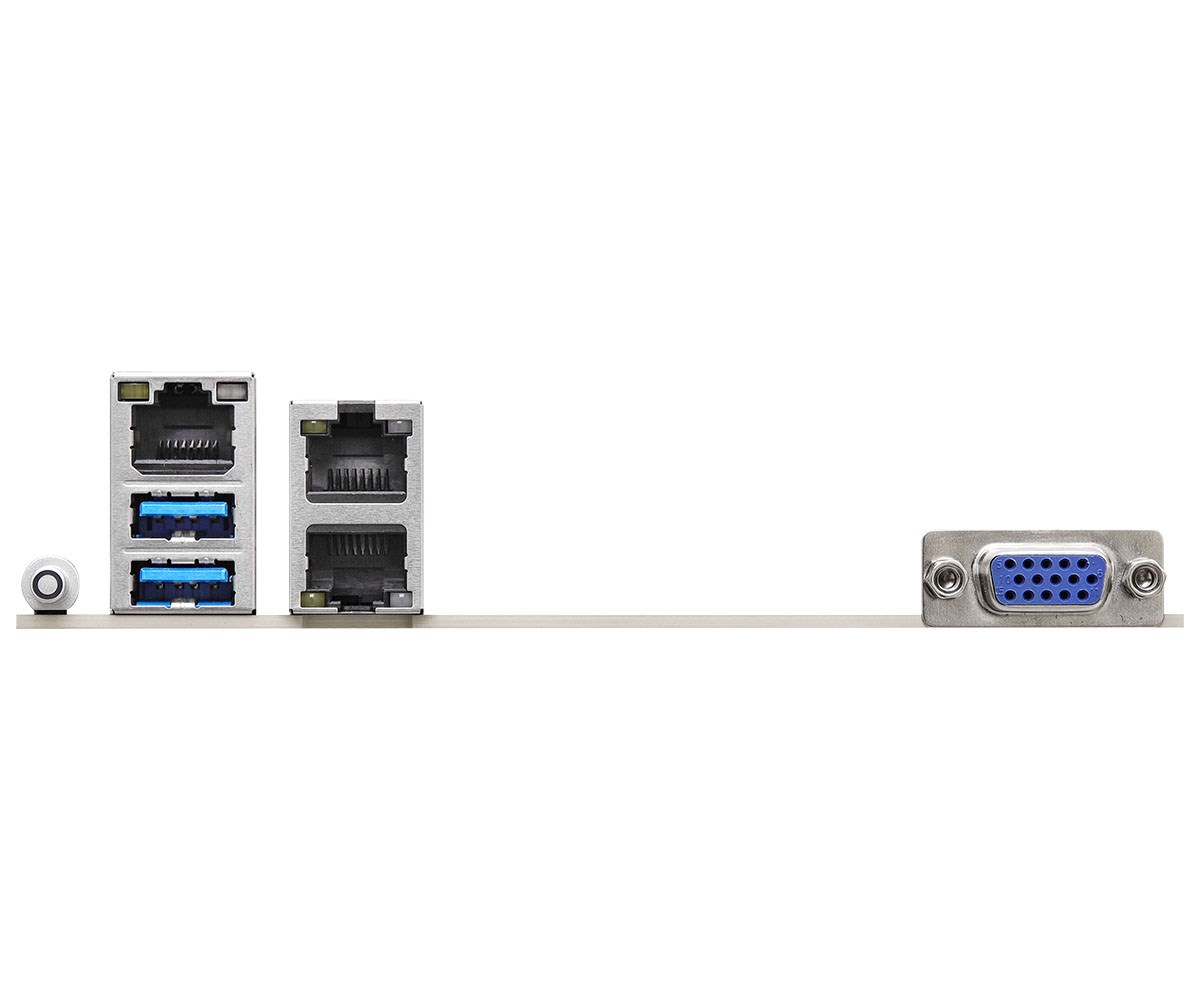

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 2
VGA (D-Sub) ports quantity : 1
Ethernet LAN (RJ-45) ports : 2
IPMI LAN (RJ-45) port : Yes
PCI Express x16 (Gen 5.x) slots : 4
Number of M.2 (M) slots : 2
Warnings : Use only in a dry and well-ventilated area., Do not open or disassemble the motherboard., The motherboard may contain electronic components hazardous to health – avoid direct contact.
