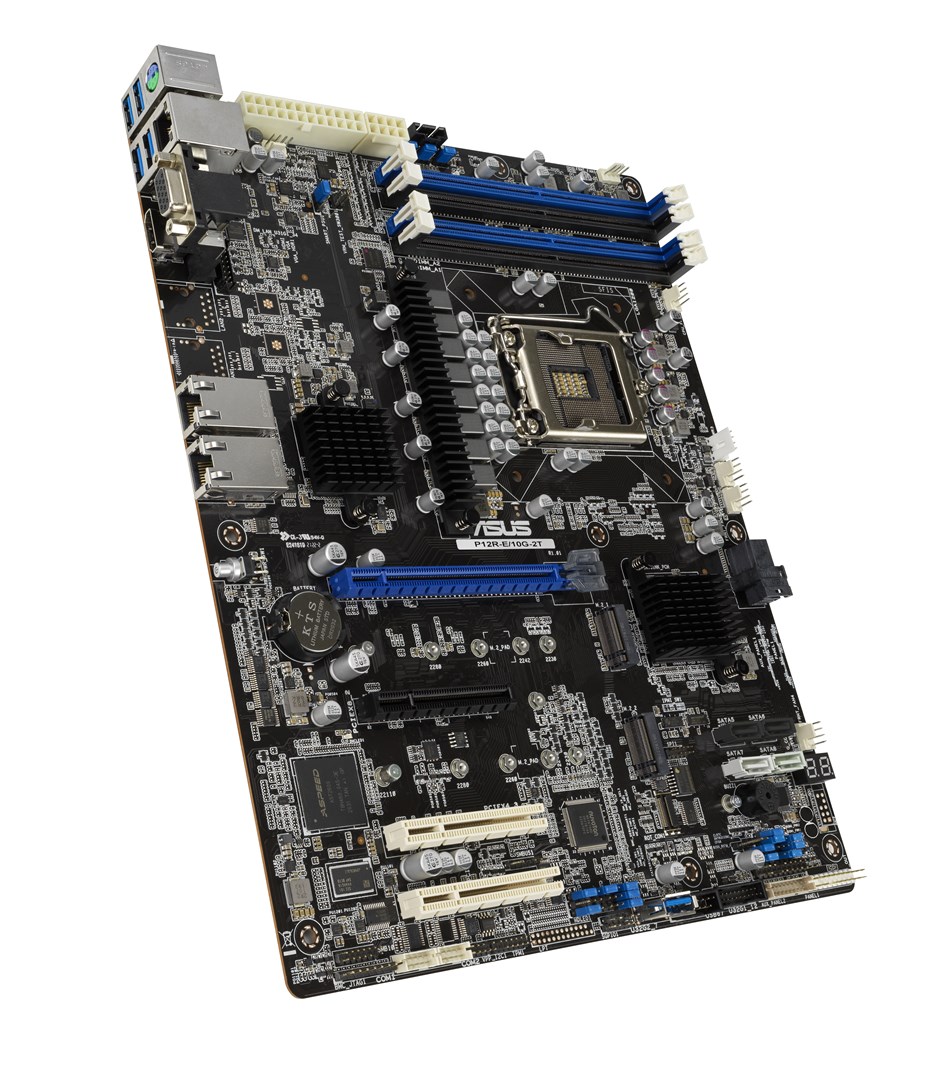

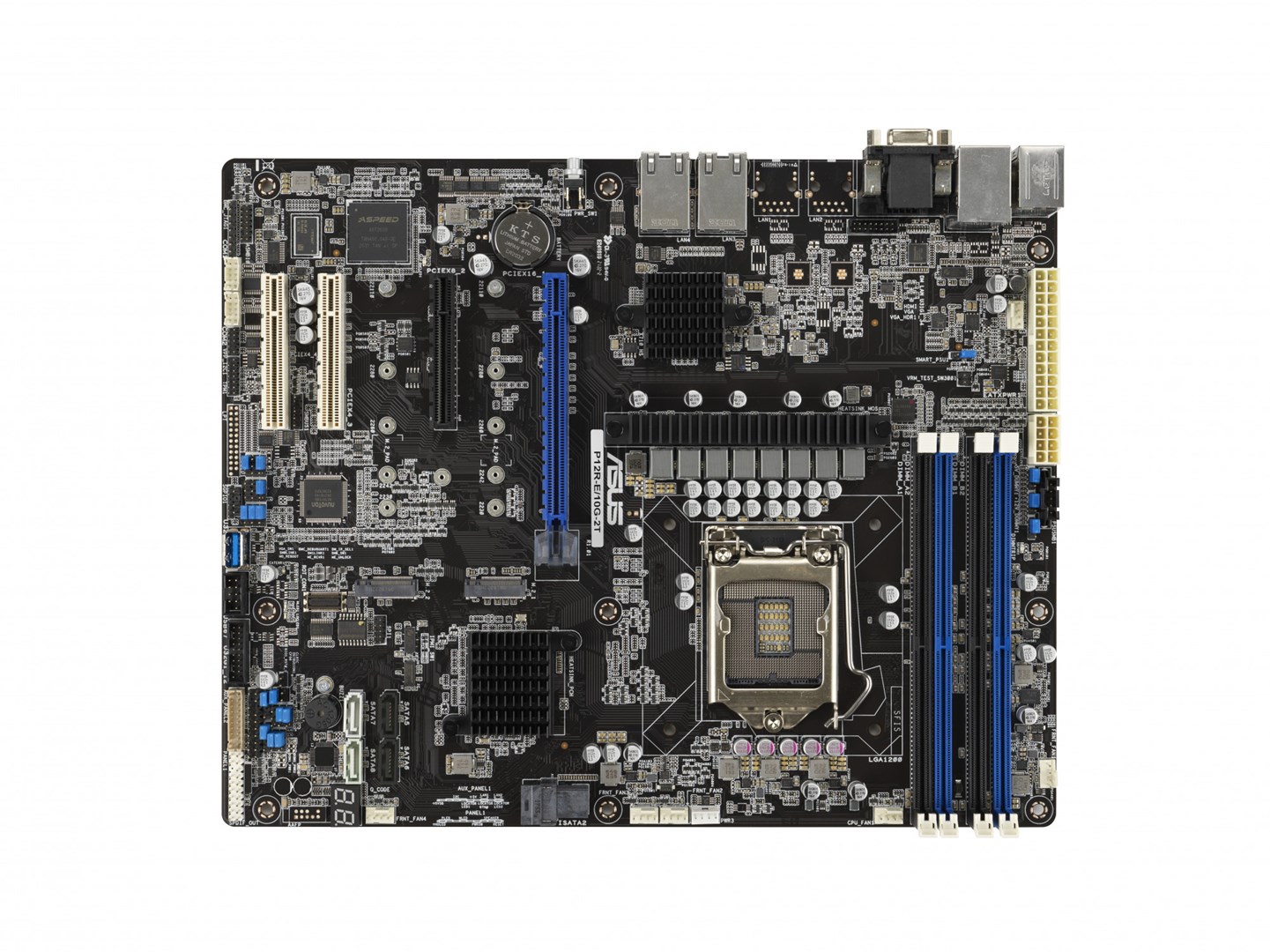

ASUS P12R-E/10G-2T Intel C256 LGA 1200 (Socket H5) ATX

Description

Processor socket : LGA 1200 (Socket H5)
Processor manufacturer : Intel
Compatible processor series : Intel Xeon E, Intel® Pentium®
Graphics card family : ASPEED
Parallel processing technology support : Not supported
Graphics card : AST2600
On-board graphics card memory : 64 MB
On-board graphics card model : Aspeed AST2600
Motherboard form factor : ATX
Motherboard chipset : Intel C256
Component for : Server
Motherboard chipset family : Intel
Supported memory module capacities : 16GB, 8GB, 32GB
Memory slots type : DIMM
Supported memory clock speeds : 2933, 3200, 2666
Memory channels : Dual-channel
Maximum internal memory : 128 GB
Number of memory slots : 4
Supported memory types : DDR4-SDRAM
Storage relative humidity (H-H) : 20 – 90%
Storage temperature (T-T) : -40 – 70 °C
Operating temperature (T-T) : 10 – 50 °C
Width : 305 mm
Depth : 244 mm
LAN controller : Intel X710-AT2
Ethernet interface type : Fast Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN : Yes
Wi-Fi : No
EPS power connector (8-pin) : Yes
TPM connector : Yes
Peripheral (Molex) power connectors (4-pin) : 6
Number of COM connectors : 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors : 3
Number of SATA III connectors : 8
ATX Power connector (24-pin) : Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors : 2
Serial port headers : 1
Package weight : 1.3 kg
Supported storage drive interfaces : M.2, SATA III
Ethernet LAN (RJ-45) ports : 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity : 2
VGA (D-Sub) ports quantity : 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 2
HDMI ports quantity : 1
PS/2 ports quantity : 1
Number of M.2 (M) slots : 2
Weight : 760 g
Warnings : Avoid contact with liquids and moisture to prevent damage to equipment., The product contains electrical components – take care during installation to avoid injury., Adjust adequate ventilation to avoid overheating and potential damage.
