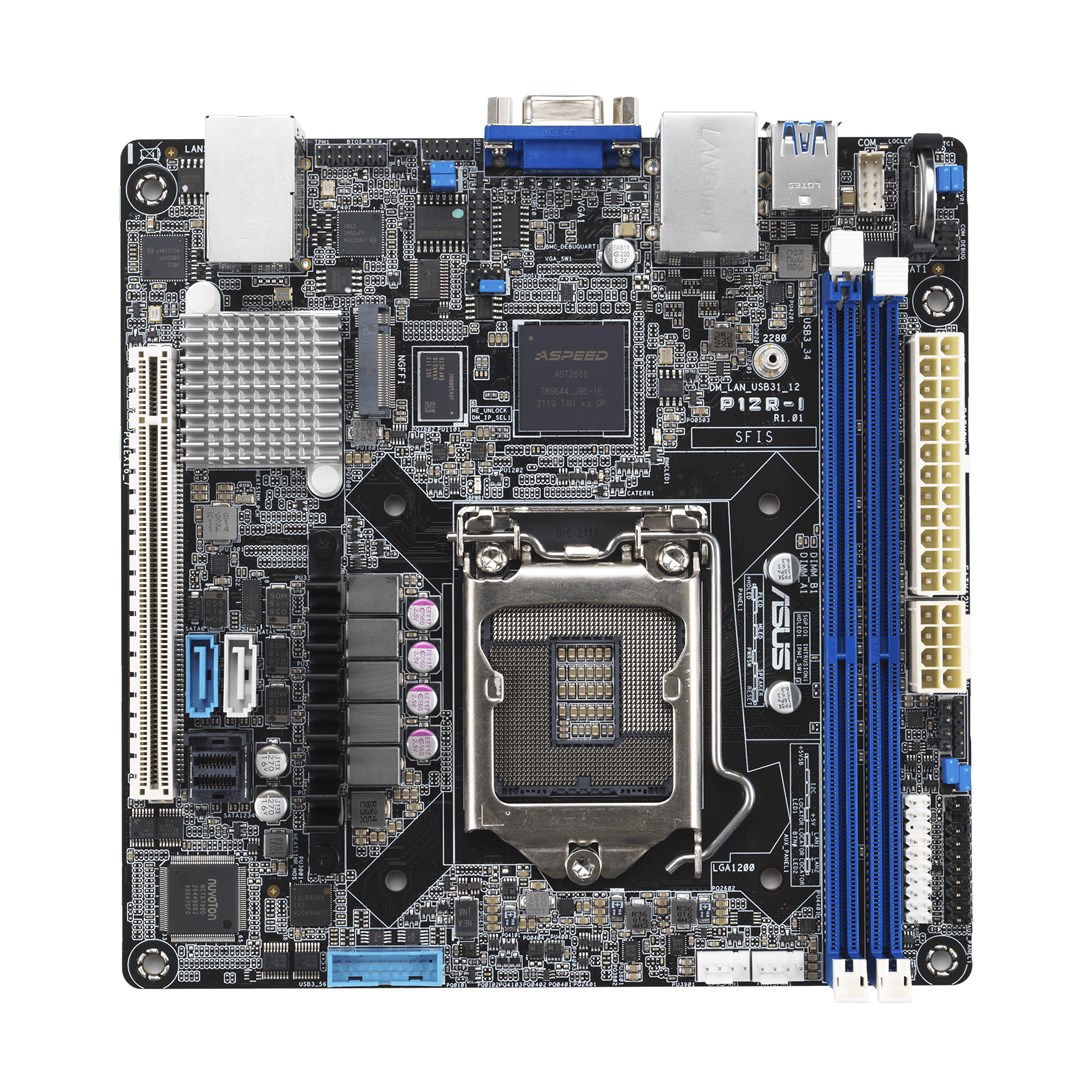

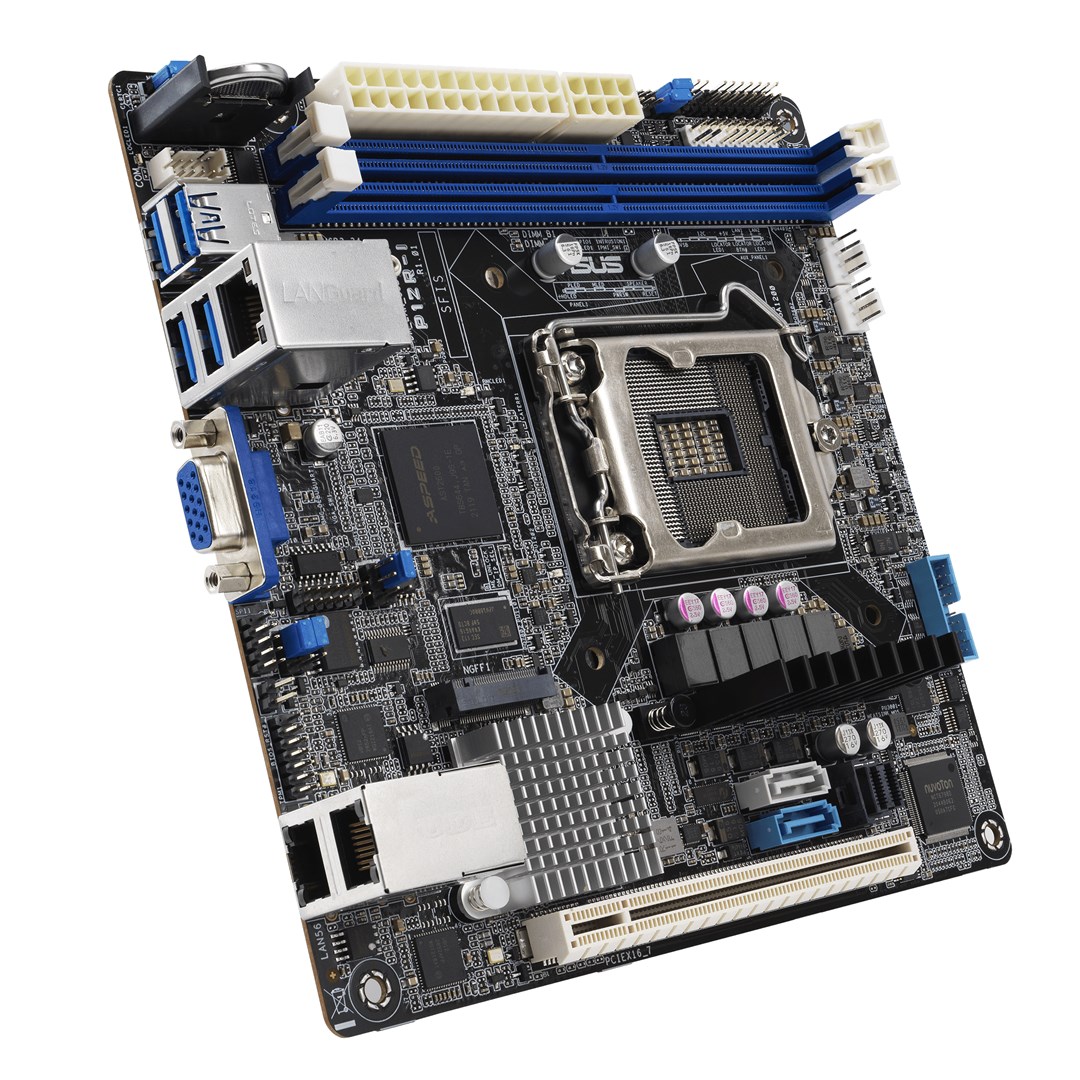

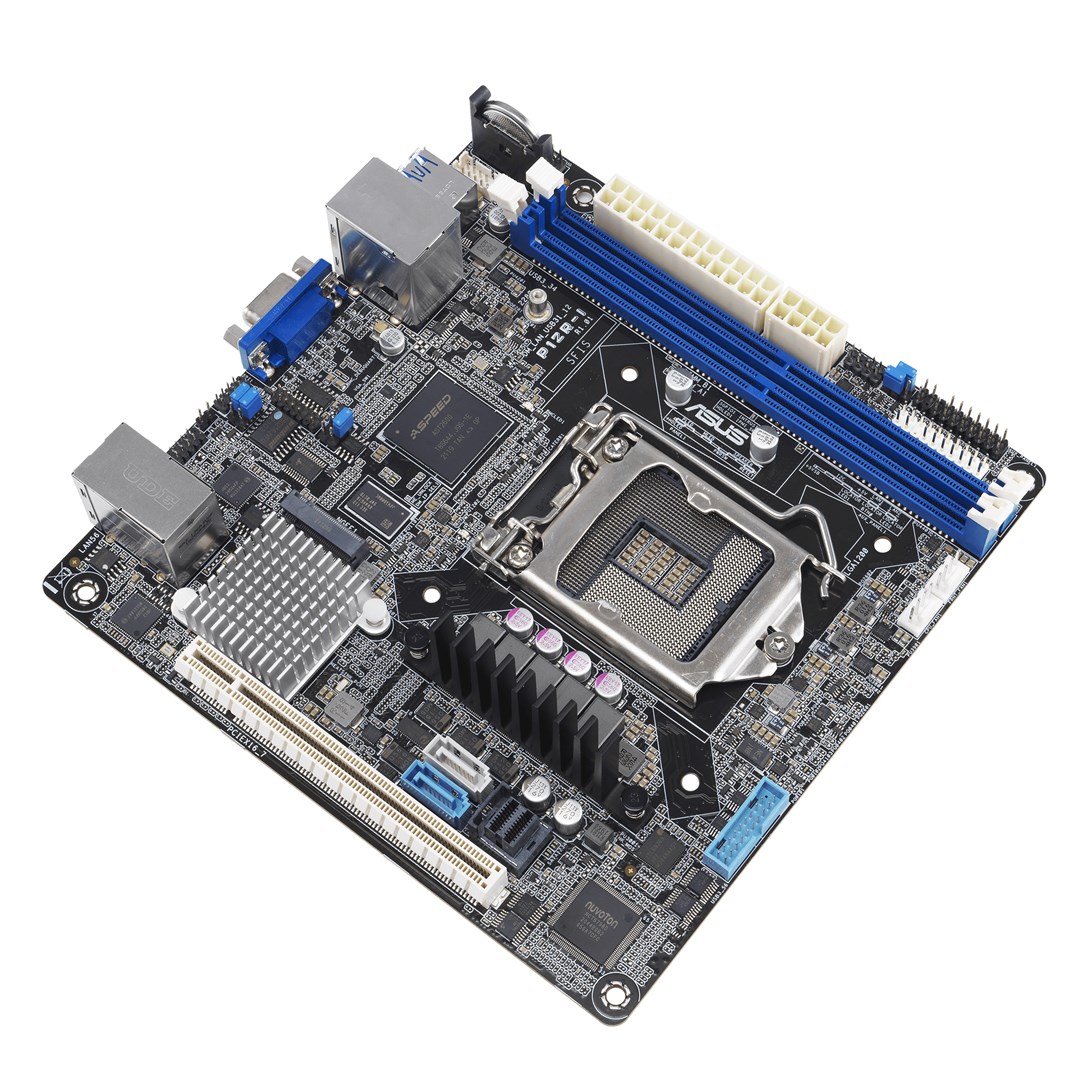

ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX

Description

Processor socket : LGA 1200 (Socket H5)
Compatible processor series : Intel Xeon E, Intel® Pentium®
Processor manufacturer : Intel
On-board graphics card memory : 64 MB
Graphics card : AST2600
Graphics card family : ASPEED
Motherboard chipset : Intel C252
Motherboard form factor : ATX
Motherboard chipset family : Intel
Component for : Server
Supported memory module capacities : 32GB, 8GB, 16GB, 4GB
Maximum internal memory : 64 GB
Supported memory clock speeds : 3200, 2666, 2933
Number of memory slots : 2
Supported memory types : DDR4-SDRAM
Memory channels : Dual-channel
Memory slots type : DIMM
Storage relative humidity (H-H) : 20 – 90%
Operating temperature (T-T) : 10 – 50 °C
Storage temperature (T-T) : -40 – 70 °C
Depth : 170 mm
Width : 170 mm
LAN controller : Intel® I210-AT
Wi-Fi : No
Ethernet LAN : Yes
Number of SATA III connectors : 6
ATX Power connector (24-pin) : Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors : 1
Serial port headers : 1
Chassis intrusion connector : Yes
Number of chassis fan connectors : 2
TPM connector : Yes
EPS power connector (8-pin) : Yes
Package depth : 281 mm
Package weight : 1.2 kg
Package width : 311 mm
Package height : 78 mm
Supported storage drive interfaces : M.2, SATA III
Ethernet LAN (RJ-45) ports : 3
Number of SAS ports : 2
VGA (D-Sub) ports quantity : 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 4
Number of M.2 (M) slots : 1
PCI Express x16 slots : 1
Weight : 520 g
Harmonized System (HS) code : 84733020
Warnings : Adjust adequate ventilation to avoid overheating and potential damage., The product contains electrical components – take care during installation to avoid injury., Avoid contact with liquids and moisture to prevent damage to equipment.
