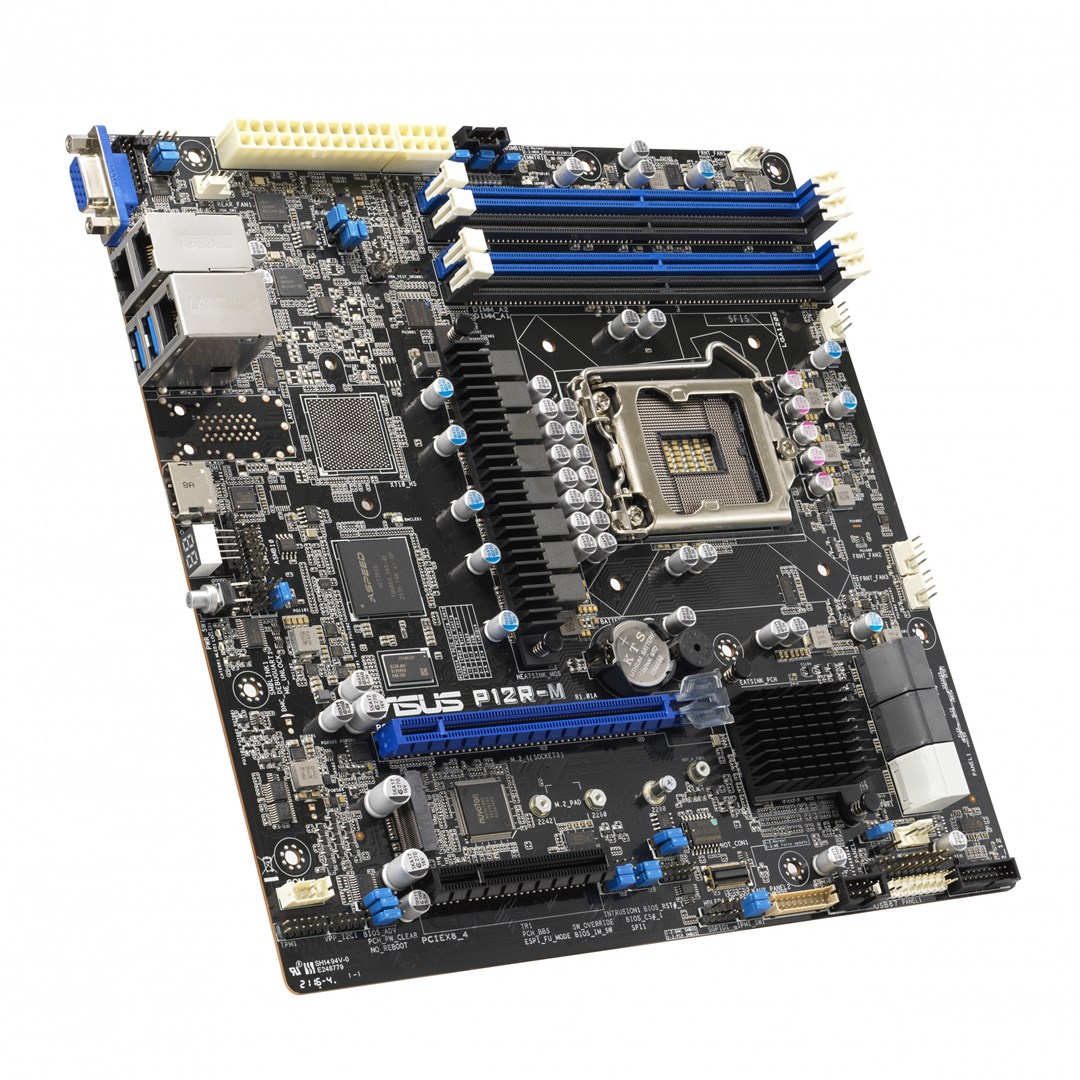

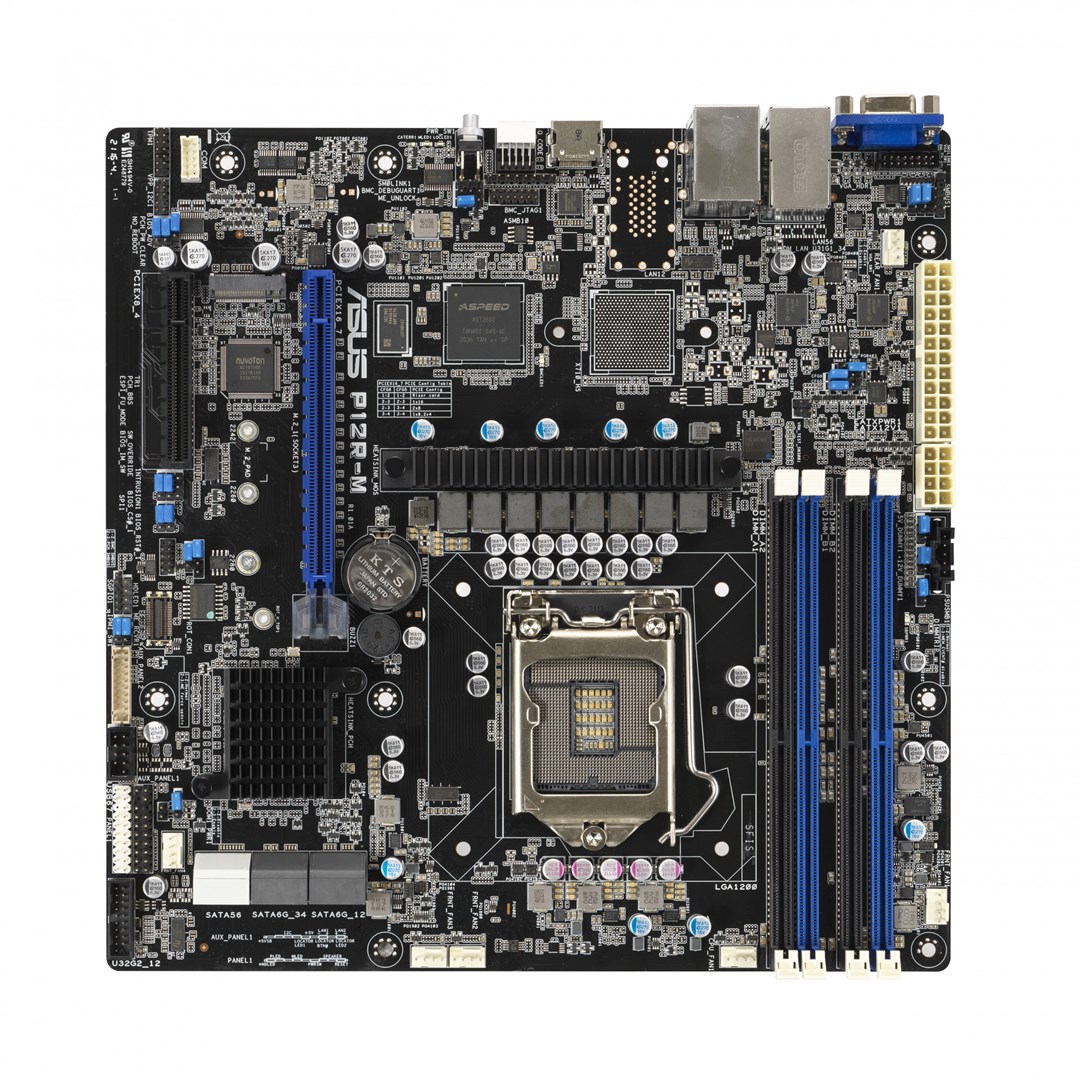

ASUS P12R-M Intel C252 LGA 1200 (Socket H5) micro ATX server motherboard

Description

Processor manufacturer : Intel
Compatible processor series : Intel® Pentium®, Intel Xeon E
Processor socket : LGA 1200 (Socket H5)
Graphics card : AST2600
On-board graphics card memory : 64 MB
Graphics card family : ASPEED
Motherboard chipset family : Intel
Component for : Server
Motherboard form factor : micro ATX
Motherboard chipset : Intel C252
Supported memory module capacities : 16GB, 8GB, 32GB, 4GB
Supported memory clock speeds : 2933, 3200, 2666
Maximum internal memory : 128 GB
Memory channels : Dual-channel
Supported memory types : DDR4-SDRAM
Number of memory slots : 4
Memory slots type : DIMM
Operating temperature (T-T) : 10 – 50 °C
Storage relative humidity (H-H) : 20 – 90%
Storage temperature (T-T) : -40 – 70 °C
Width : 244 mm
Depth : 244 mm
LAN controller : Intel® I210-AT
Wi-Fi : No
Ethernet LAN : Yes
Serial port headers : 1
Number of SATA III connectors : 6
ATX Power connector (24-pin) : Yes
EPS power connector (8-pin) : Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors : 2
Package weight : 1.3 kg
Supported storage drive interfaces : M.2, SATA III

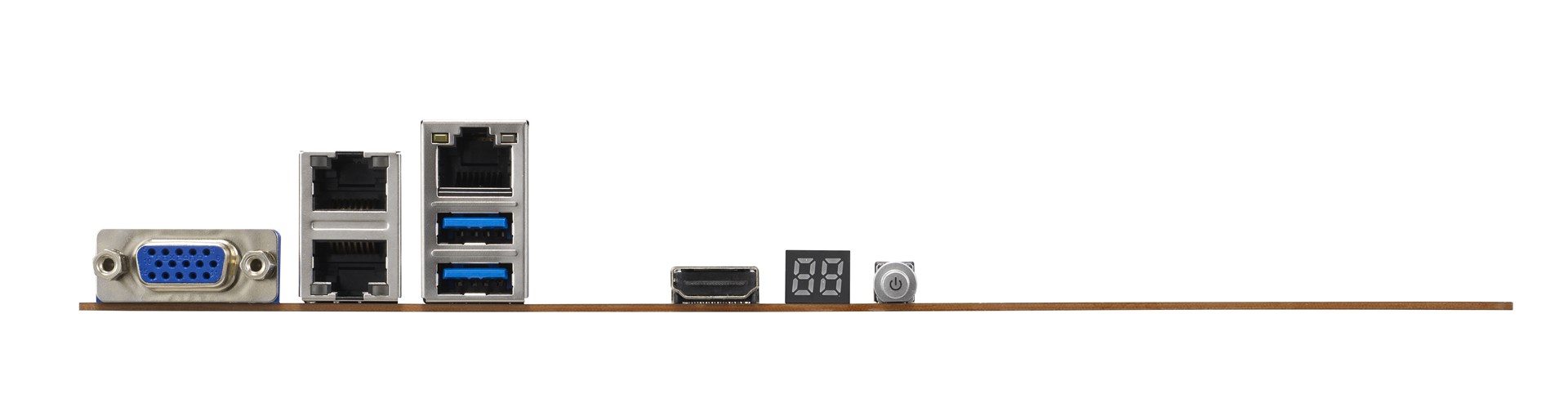

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity : 2
Ethernet LAN (RJ-45) ports : 2
HDMI ports quantity : 1
VGA (D-Sub) ports quantity : 1
Number of M.2 (M) slots : 1
PCI Express x16 (Gen 4.x) slots : 1
Harmonized System (HS) code : 84733020
Warnings : Avoid contact with liquids and moisture to prevent damage to equipment., The product contains electrical components – take care during installation to avoid injury., Adjust adequate ventilation to avoid overheating and potential damage.
