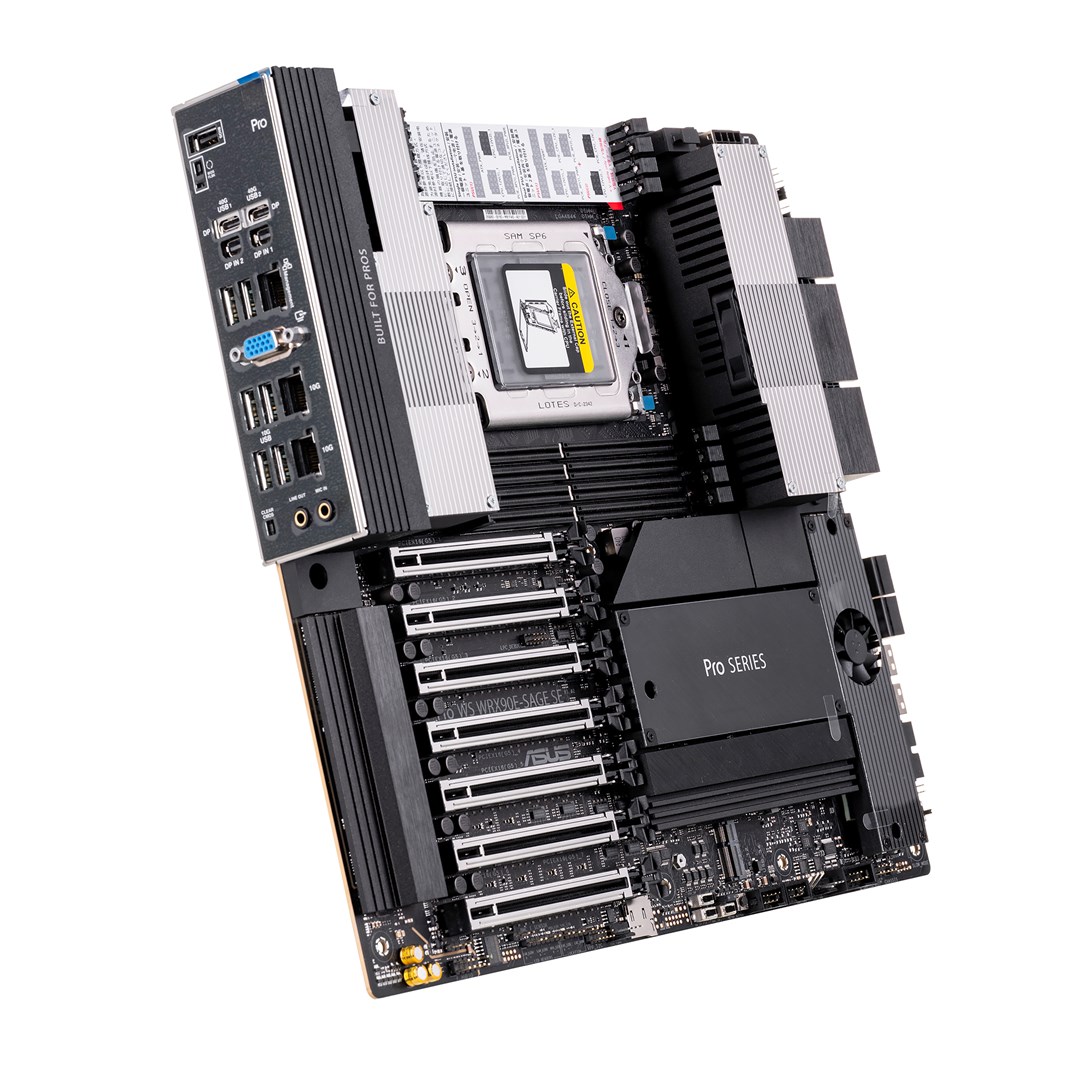

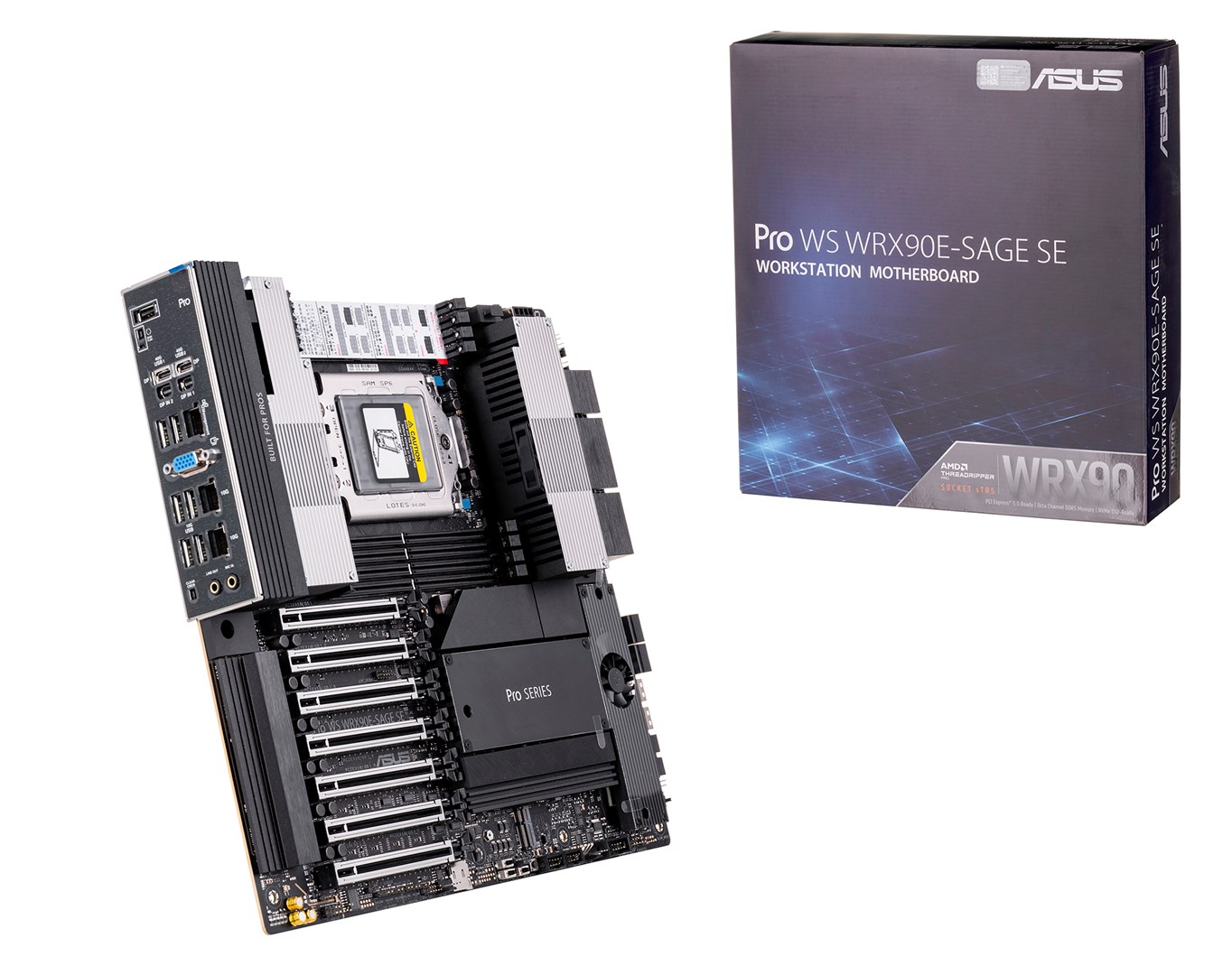

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB motherboard for workstations

Description

Processor manufacturer : AMD

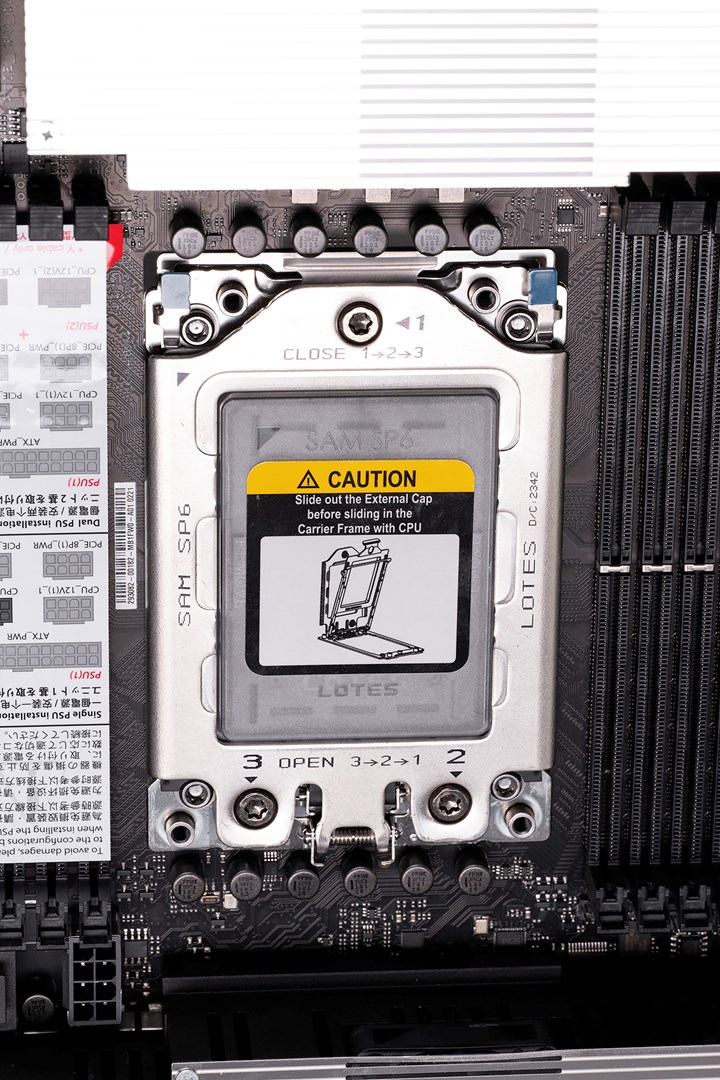

Processor socket : Socket sTR5
Motherboard chipset family : AMD
Audio chip : Realtek ALC1220P
Motherboard chipset : AMD WRX90
Windows operating systems supported : Windows 11, Windows 10 x64
Component for : Workstation
Motherboard form factor : EEB
Memory channels : Octa-channel
Supported memory types : DDR5-SDRAM
ECC : Yes
Number of memory slots : 8
Memory slots type : DIMM
Width : 305 mm
Depth : 330 mm
Ethernet interface type : Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet
Wi-Fi : No
Ethernet LAN : Yes
USB 3.2 Gen 2×2 connectors : 1
Number of SATA III connectors : 4
Front panel audio connector : Yes

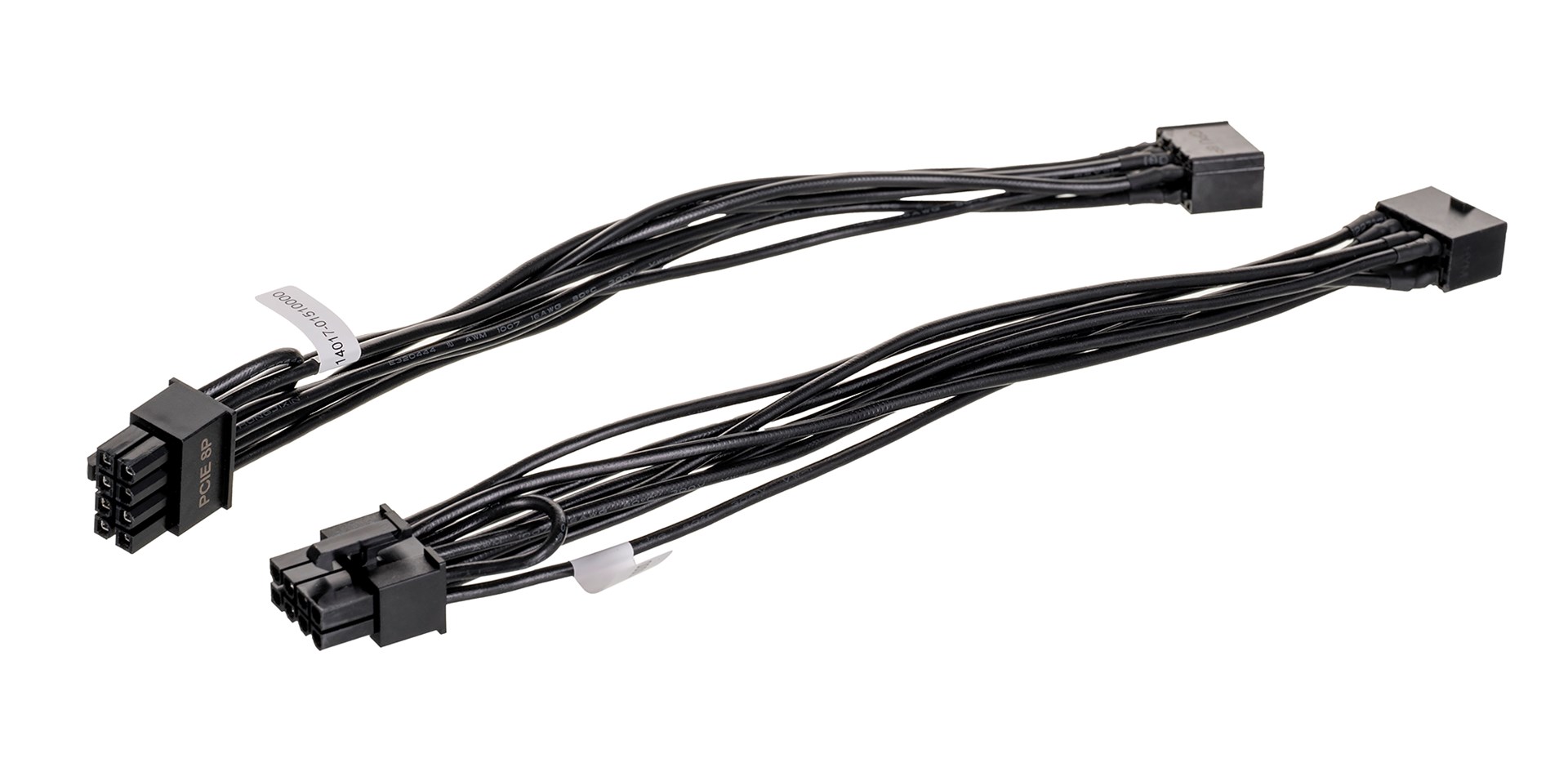

EPS power connector (8-pin) : Yes

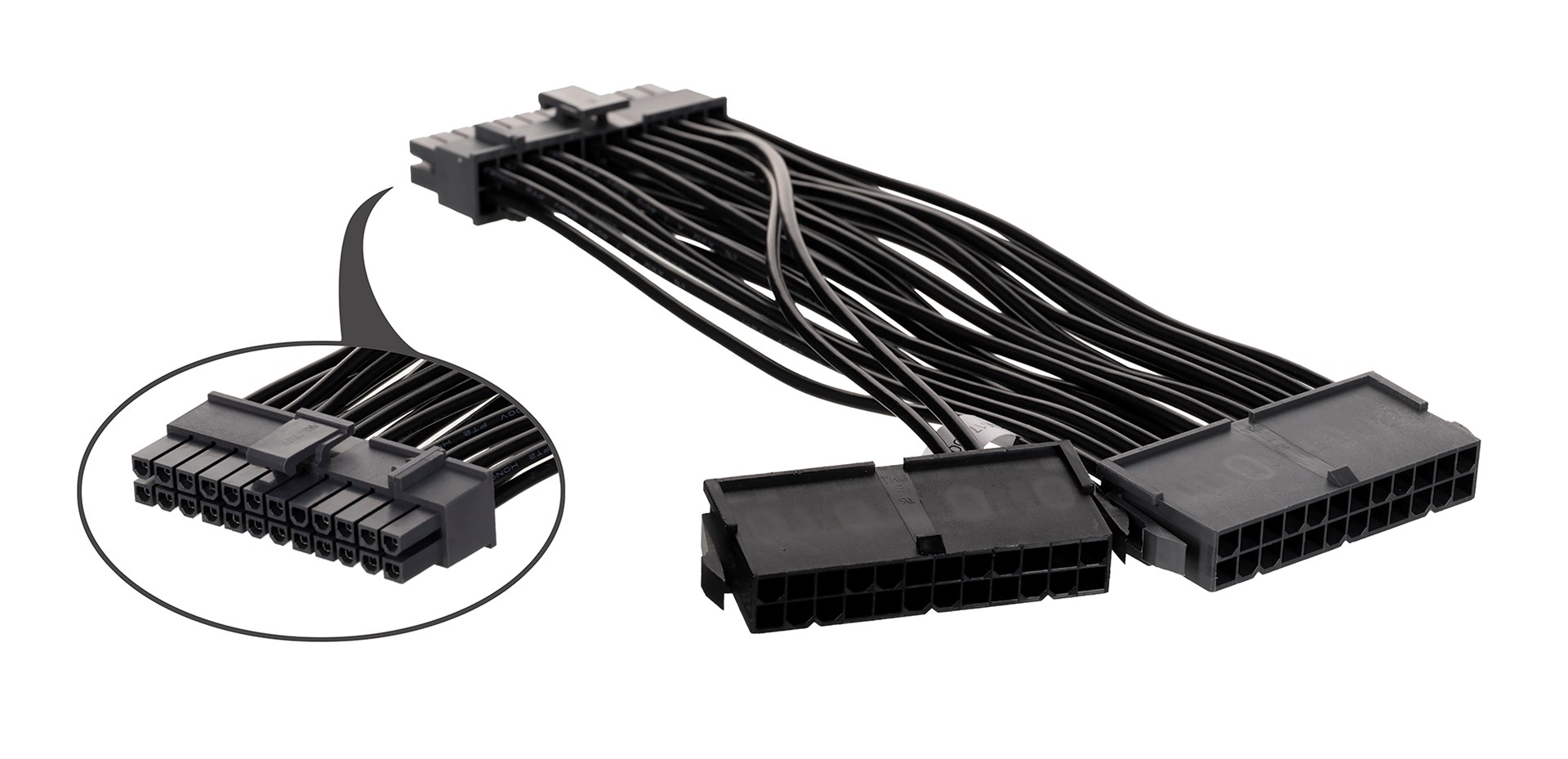

ATX Power connector (24-pin) : Yes
Chassis intrusion connector : Yes
TPM connector : Yes
Number of COM connectors : 1
Number of chassis fan connectors : 5
CPU fan connector : Yes
USB 2.0 connectors : 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors : 1
BIOS memory size : 256 Mbit
Clear CMOS button : Yes
BIOS type : UEFI AMI
Supported storage drive types : HDD & SSD
RAID levels : 10, 5, 1, 0

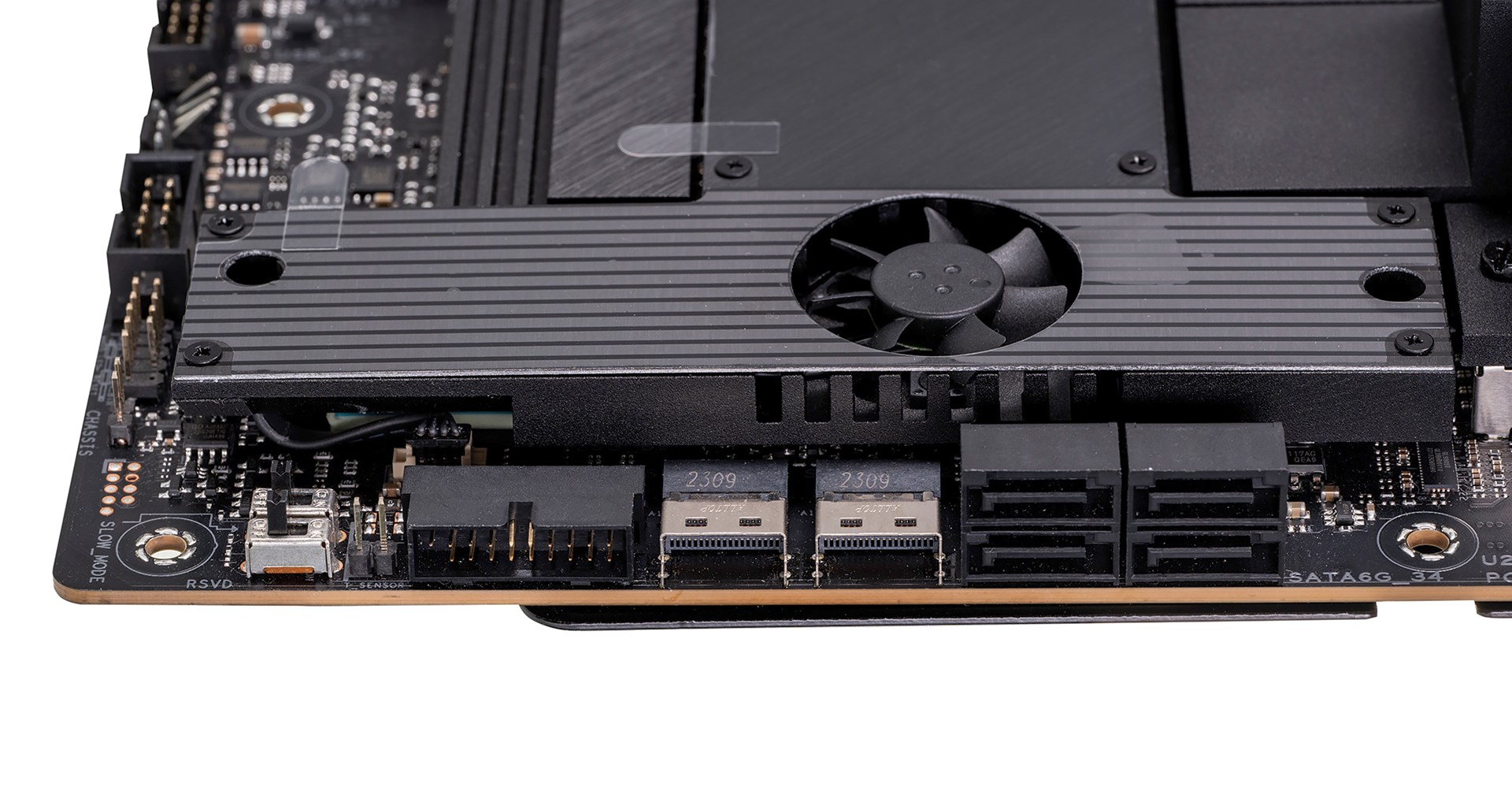

Supported storage drive interfaces : M.2, SATA III, SlimSAS
RAID support : Yes
Number of storage drives supported : 10
Number of HDDs supported : 4

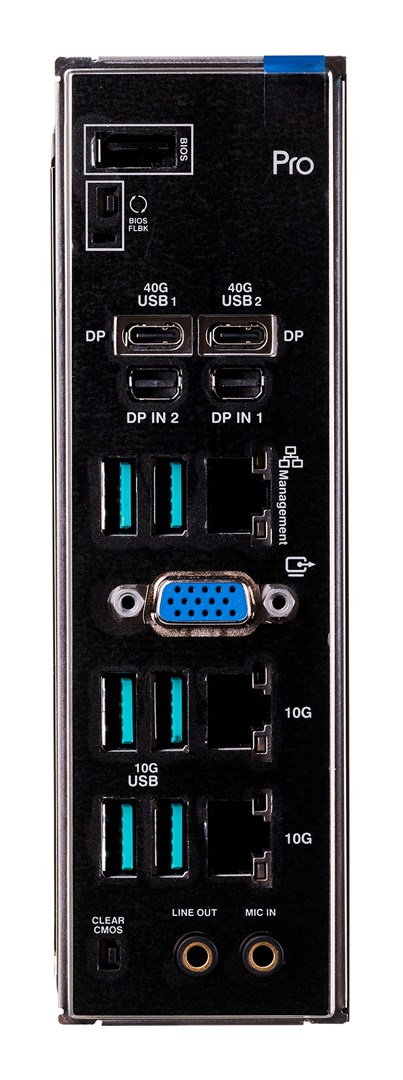

USB4 Gen 3×2 ports quantity : 2
USB connector type : USB Type-C, USB Type-A
Ethernet LAN (RJ-45) ports : 2
USB 2.0 ports quantity : 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity : 6
VGA (D-Sub) ports quantity : 1

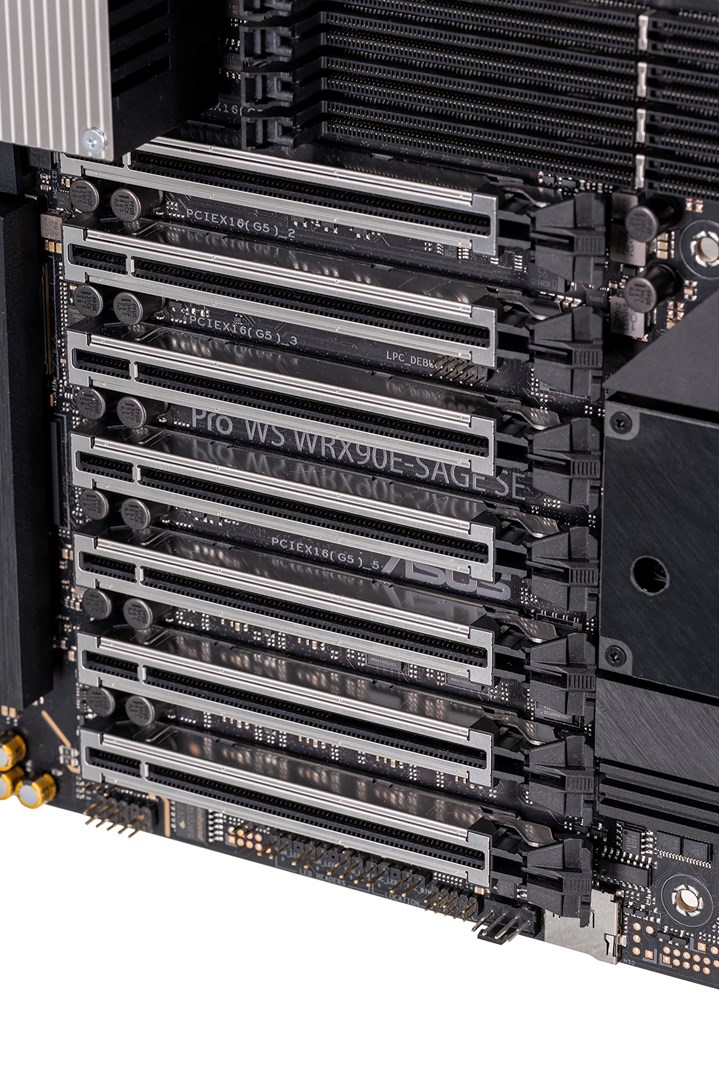

PCI Express x16 (Gen 5.x) slots : 7
Number of M.2 (M) slots : 4
Mini DisplayPorts quantity : 2
Warnings : The motherboard may contain electronic components hazardous to health – avoid direct contact., Use only in a dry and well-ventilated area., Do not open or disassemble the motherboard.
