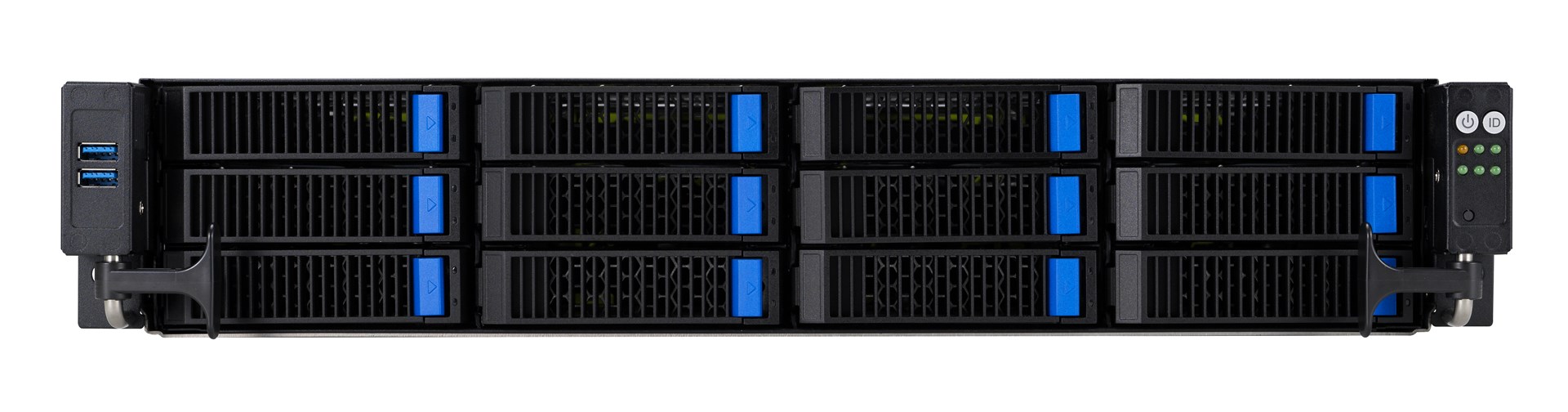

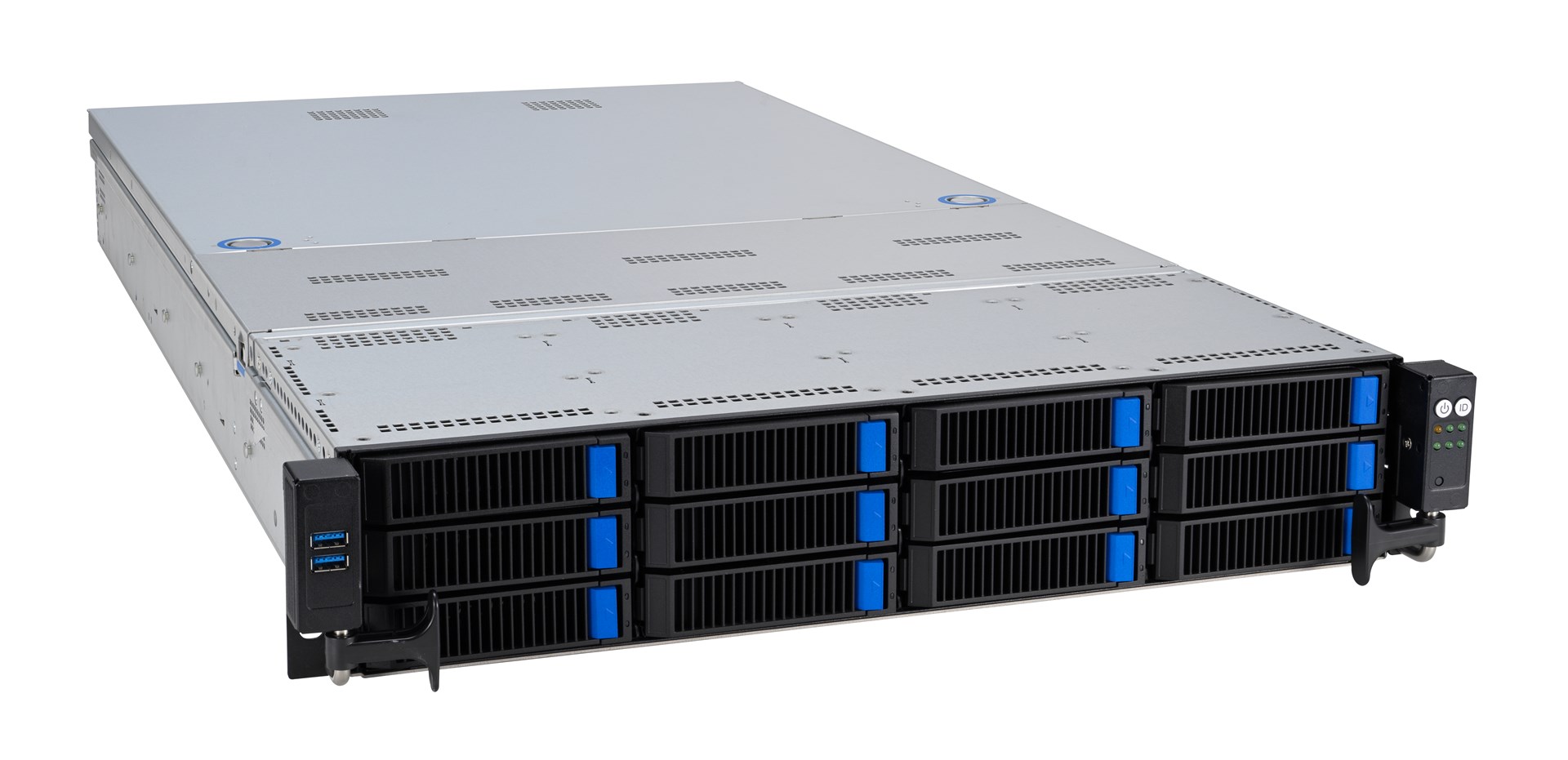

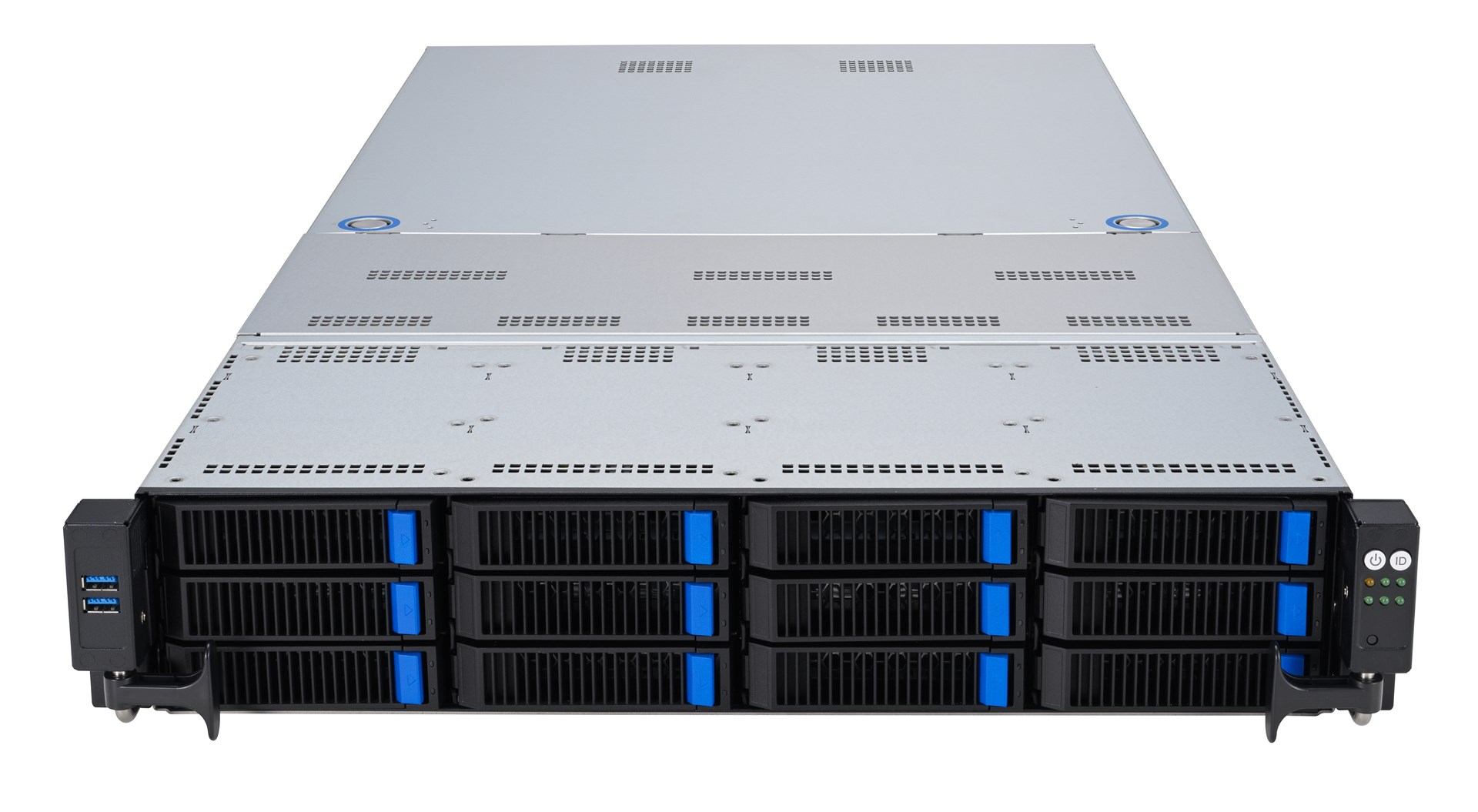

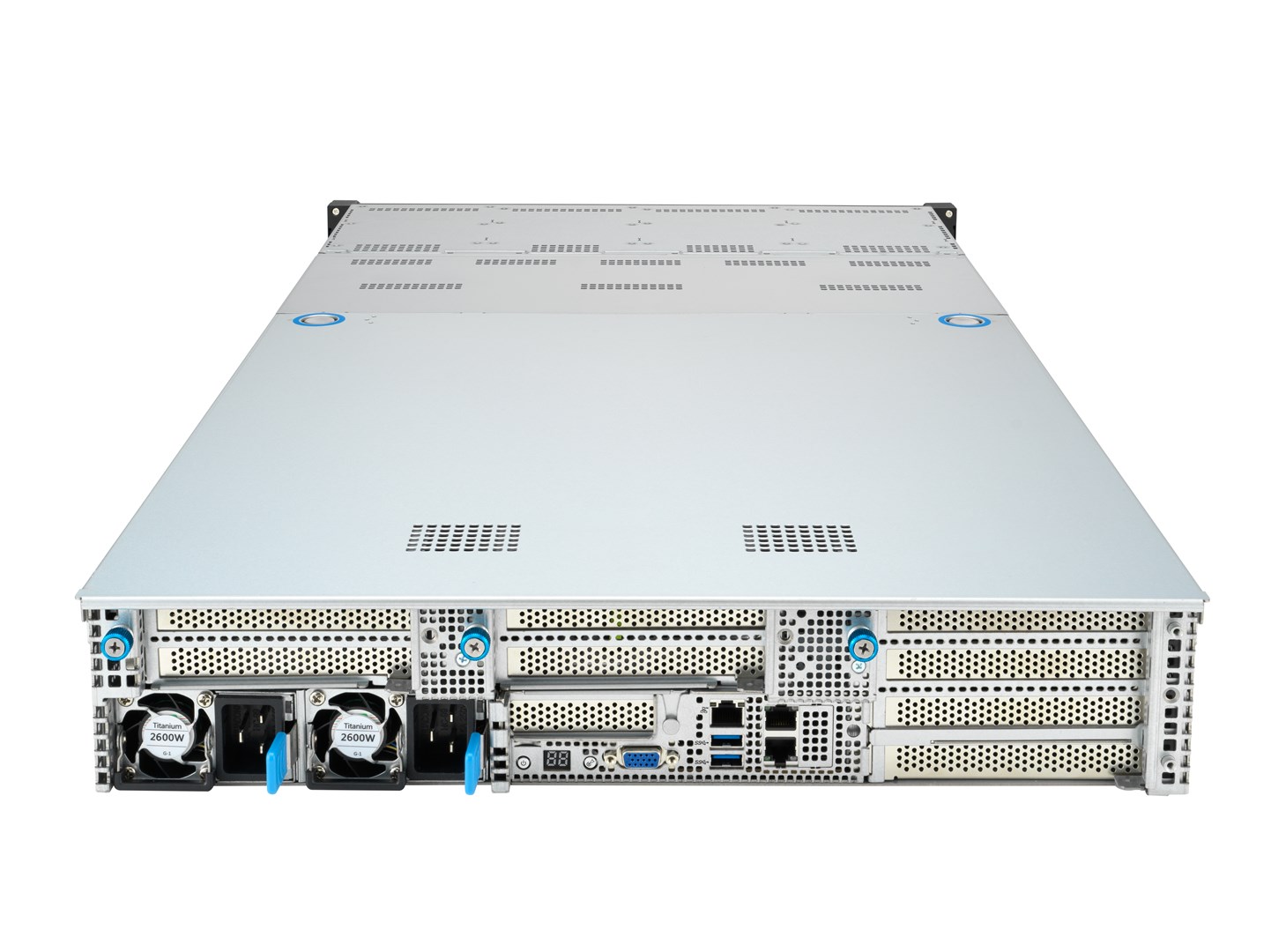

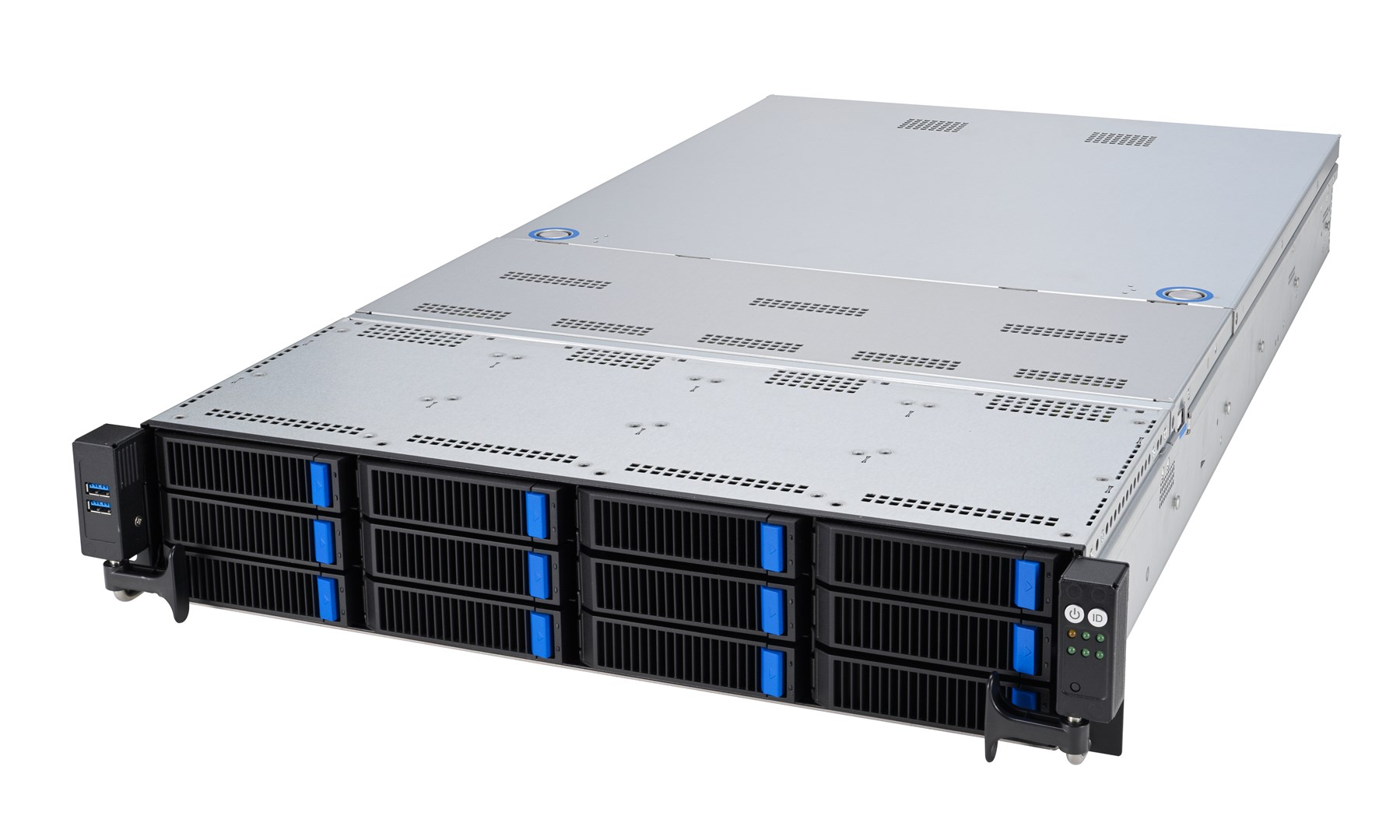

ASUS RS720A-E12-RS12 Socket SP5 Rack (2U) Grey

Description

Sustainability certificates : CB, C-TICK, CE, BSMI, Federal Communications Commission (FCC)
Processor family : AMD EPYC
Number of processors supported : 2
Compatible processor series : AMD EPYC 9004
Processor manufacturer : AMD
Processor socket : Socket SP5
On-board graphics card memory : 64 MB
On-board graphics card model : Aspeed AST2600
Trusted Platform Module (TPM) : Yes
Trusted Platform Module (TPM) version : 2.0
Supported RDIMM clock speeds : 4400, 4800 MHz
Maximum internal memory : 6 TB
Supported DIMM module capacities : 64GB, 32GB, 128GB
Number of DIMM slots : 24
Supported memory types : DDR5-SDRAM
LED indicators : Yes
Reset button : Yes
Product colour : Grey
Number of fans : 4 fan(s)
On/off switch : Yes
Chassis type : Rack (2U)
Redundant power supply (RPS) support : Yes
Power supply : 2600 W
Storage temperature (T-T) : -40 – 60 °C
Operating temperature (T-T) : 10 – 35 °C
Storage relative humidity (H-H) : 20 – 90%
Weight : 19.3 kg
Height : 88.1 mm
Width : 449 mm
Depth : 840 mm
LAN controller : Intel X710-AT2
Ethernet LAN : Yes
Ethernet interface type : 10 Gigabit Ethernet
Package weight : 25.8 kg
PCI Express slots version : 5.0
Supported storage drive types : HDD & SSD
Number of storage drives supported : 16
Storage drive sizes supported : M.2, 2.5, 3.5"
Number of 3.5" bays : 12
SSD form factor : M.2
Number of 2.5" bays : 2
Hot-swap HDD bays : Yes
Ethernet LAN (RJ-45) ports : 2
VGA (D-Sub) ports quantity : 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 4
IPMI LAN (RJ-45) port : Yes
Warnings : Do not disassemble the unit yourself., Do not throw into regular trash, product requires special disposal., The product may contain components that are harmful to health, use caution when handling.
