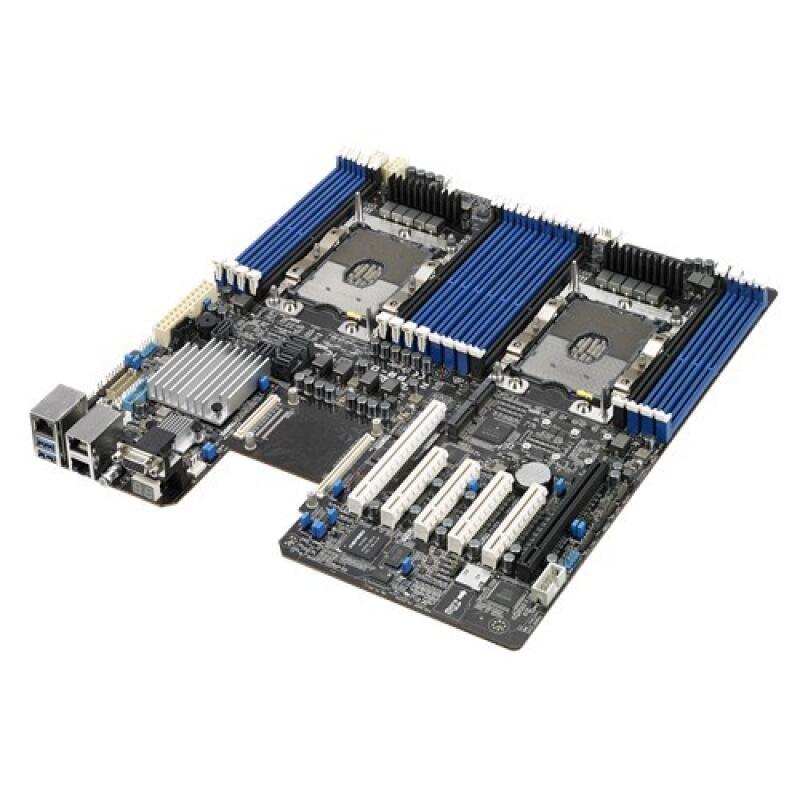

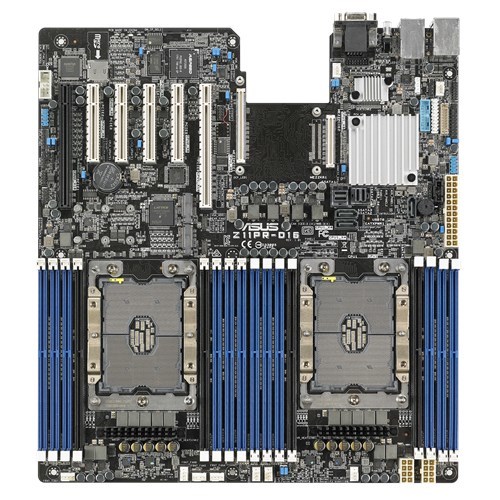

Description
System bus rate : 10.4 GT/s
Processor socket : LGA 3647 (Socket P)
Processor manufacturer : Intel
On-board graphics card model : Aspeed AST2500
Parallel processing technology support : Not supported
On-board graphics card memory : 64 MB
Motherboard form factor : SSI EEB
Motherboard chipset : Intel® C621
Component for : Server
Harmonized System (HS) code : 84733020
Supported memory clock speeds : 2666, 2400
Maximum internal memory : 512 GB
Maximum RDIMM memory : 512 GB
Supported memory types : DDR4-SDRAM
Storage temperature (T-T) : -40 – 70 °C
Storage relative humidity (H-H) : 20 – 90%
Operating temperature (T-T) : 10 – 35 °C
Width : 305 mm
Depth : 330 mm
LAN controller : Intel® I350-AM2
Ethernet LAN : Yes
Ethernet interface type : Gigabit Ethernet
USB 2.0 connectors : 2
TPM connector : Yes
ATX Power connector (24-pin) : Yes
Serial port headers : 1
Chassis intrusion connector : Yes
Package weight : 2.42 kg
RAID support : Yes
Supported storage drive interfaces : SATA III
RAID levels : 10, 5, 0, 1

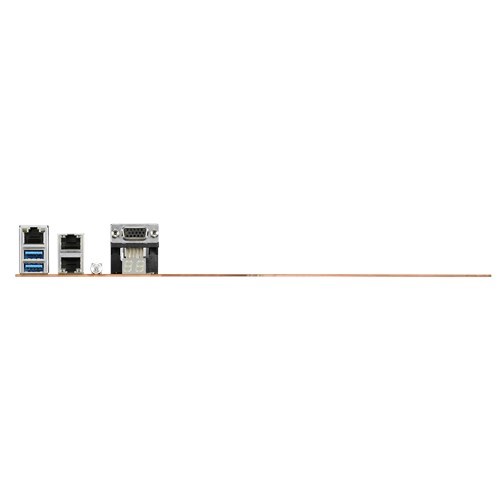

Ethernet LAN (RJ-45) ports : 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 2
VGA (D-Sub) ports quantity : 1
PCI Express x16 (Gen 3.x) slots : 2
Supported LRDIMM clock speeds : 2400, 2666 MHz
Supported RDIMM module capacity : 8GB, 4GB, 16GB, 32GB
Supported RDIMM clock speeds : 2400, 2666 MHz
Supported LRDIMM module capacity : 64GB, 32GB
Weight : 1.4 kg
Number of processors supported : 2
Maximum LRDIMM memory : 1.02 TB
PCI Express x8 (Gen 3.x) slots : 4
Number of DIMM slots : 16
Supported DIMM module capacities : 32GB, 8GB, 64GB, 16GB, 4GB
