Description
Processor socket : LGA 4677 (Socket E)
Processor manufacturer : Intel
Compatible processor series : Intel® Xeon®
On-board graphics card : Yes
Graphics card : AST2600
Graphics card family : ASPEED
Component for : Server
Motherboard chipset : Intel C741
Motherboard chipset family : Intel
Motherboard form factor : Extended ATX
Supported memory clock speeds : 4800 MHz, 5600 MHz
Maximum internal memory : 2.05 TB
Supported memory module capacities : 16GB, 64GB, 32GB, 256MB, 128GB
Memory slots type : DIMM
Supported memory types : DDR5-SDRAM
Memory channels : Octa-channel
Number of memory slots : 16
Operating temperature (T-T) : 10 – 35 °C
Storage temperature (T-T) : -40 – 70 °C
Storage relative humidity (H-H) : 20 – 90%
Width : 304.8 mm
Depth : 330.2 mm
LAN controller : Intel X710-AT2
Ethernet LAN : Yes
Number of M.2 connectors : 2
Number of MCIO connectors : 2
Number of SlimSAS connectors : 2
Total number of SATA connectors : 2
ATX Power connector (24-pin) : Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors : 1
USB 2.0 connectors : 1
TPM connector : Yes
EPS power connector (8-pin) : Yes
Smbus connector (4-pin) : 1
Package weight : 2.75 kg
Number of M.2 connectors : 2
Number of SATA connectors : 10
Supported storage drive interfaces : M.2, Serial ATA

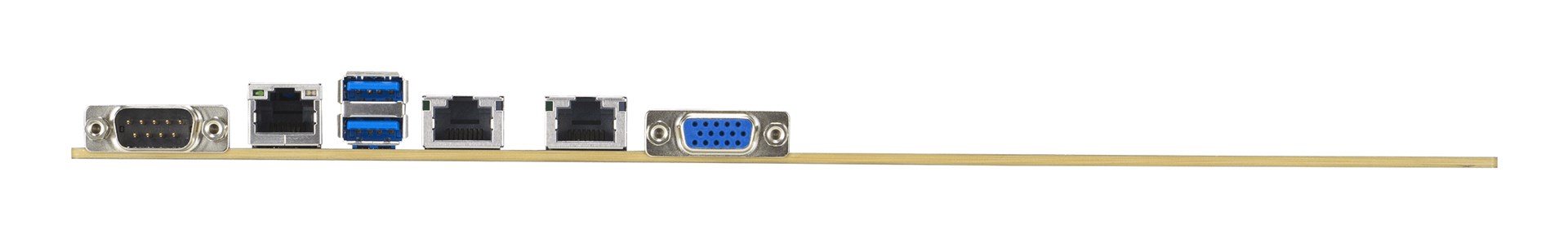

Number of Mgmt LAN ports : 1
Ethernet LAN (RJ-45) ports : 2
Serial ports quantity : 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 2
VGA (D-Sub) ports quantity : 1
PCI Express x8 (Gen 5.x) slots : 1
PCI Express x16 (Gen 5.x) slots : 5
Weight : 1.75 kg
