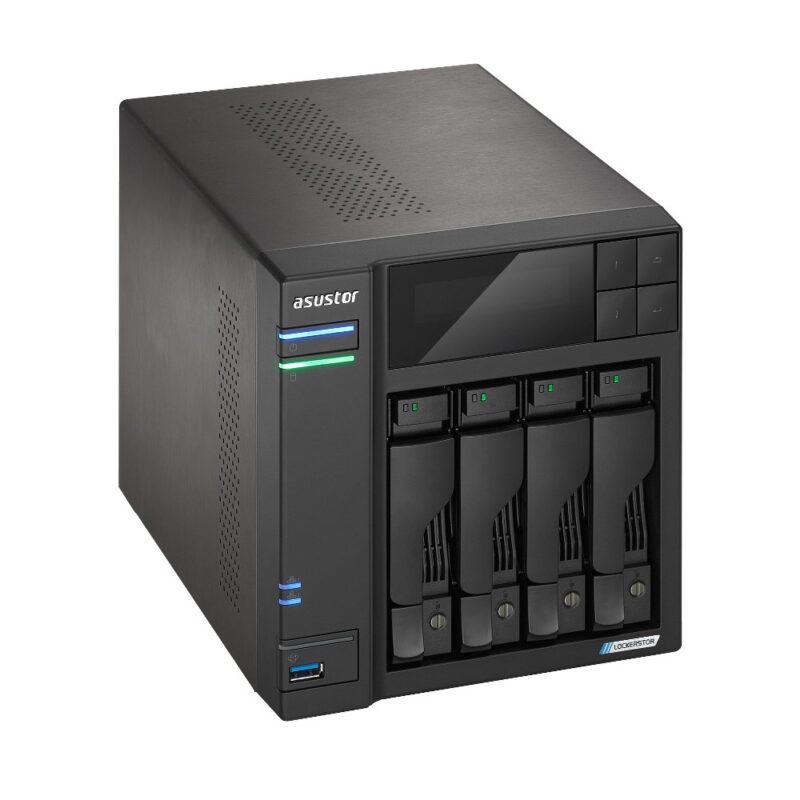

Description
CPU configuration (max) : 1
Processor frequency : 2 GHz
Processor family : Intel® Celeron® N
On-board graphics card model : Intel® UHD Graphics
Processor model : N5105
Processor cache : 4 MB
Processor cores : 4
Processor manufacturer : Intel
Maximum RAM supported : 16 GB
Memory slots : 2
Memory clock speed : 2933 MHz
Memory form factor : SO-DIMM
Flash memory : 8000 MB
Internal memory type : DDR4
Internal memory : 4 GB
Display type : LCD
Number of fans : 1 fan(s)
Fan diameter : 12 cm
Chassis type : Desktop
Product colour : Black
Built-in display : Yes
Cooling type : Active
LED indicators : Yes
Power consumption (sleep) : 0.88 W
Power supply unit (PSU) capacity : 90 W
Power supply location : External
AC input voltage : 100 – 240 V
Power consumption (typical) : 35 W
Operating temperature (T-T) : 0 – 40 °C
Operating relative humidity (H-H) : 5 – 95%
Weight : 2.94 kg
Height : 185.5 mm
Depth : 230 mm
Width : 170 mm
Jumbo frames support : Yes
iSCSI support : Yes
Dynamic DNS (DDNS) : Yes
Wake-on-LAN ready : Yes
Ethernet LAN data rates : 2500 Mbit/s, 100, 1000 Mbit/s
Ethernet LAN : Yes
Browser supported : Firefox, Chrome, Safari, Microsoft Edge
S.M.A.R.T. support : Yes
System log : Yes
Number of users : 4096 user(s)
Backup features : Cloud
Universal Plug and Play (UPnP) : Yes
Backup function : Yes
Access Control List (ACL) : Yes
Device class : Home & Home Office
Web-based management : Yes
Type : NAS
Noise level : 17.6 dB
Idle States : Yes
Intel 64 : Yes
Intel VT-x with Extended Page Tables (EPT) : Yes
Enhanced Intel SpeedStep Technology : Yes
Intel Virtualization Technology for Directed I/O (VT-d) : Yes
Intel Virtualization Technology (VT-x) : Yes
Intel Trusted Execution Technology : No
Server operating systems supported : Windows Server 2016, Windows Server 2012, Windows Server 2019, Windows Server 2008, Windows Server 2003
Operating system version : 4.1 Onwards
Linux operating systems supported : Yes
Mac operating systems supported : Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 10.7 Lion
Windows operating systems supported : Yes
Operating system installed : ADM
Supported file systems : FAT32, HFS+, ext4, exFAT, BTRFS, ext3, NTFS
Total installed storage capacity : 0 TB
Number of M.2 (M & B) slots : 4
Storage drive capacity : 0 GB
Storage drives installed : No
Installed storage drive type : No
Supported storage drive types : HDD & SSD
Supported storage drive interfaces : M.2, Serial ATA
Storage drive sizes supported : M.2, 3.5", 2.5
RAID levels : 6, JBOD, 1, 5, 0, 10
Number of storage drives supported : 4
RAID support : Yes
Concurrent connections : 512
USB port : Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity : 2
HDMI ports quantity : 1
HDMI version : 2.0b
Ethernet LAN (RJ-45) ports : 2
Harmonized System (HS) code : 84714100
