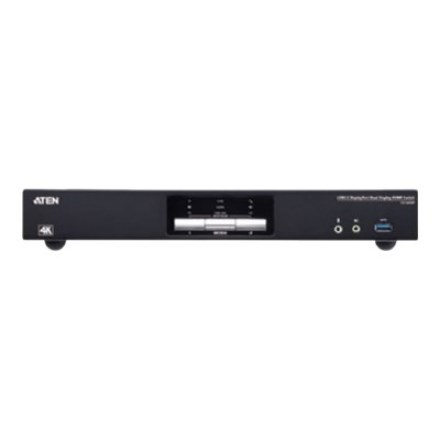

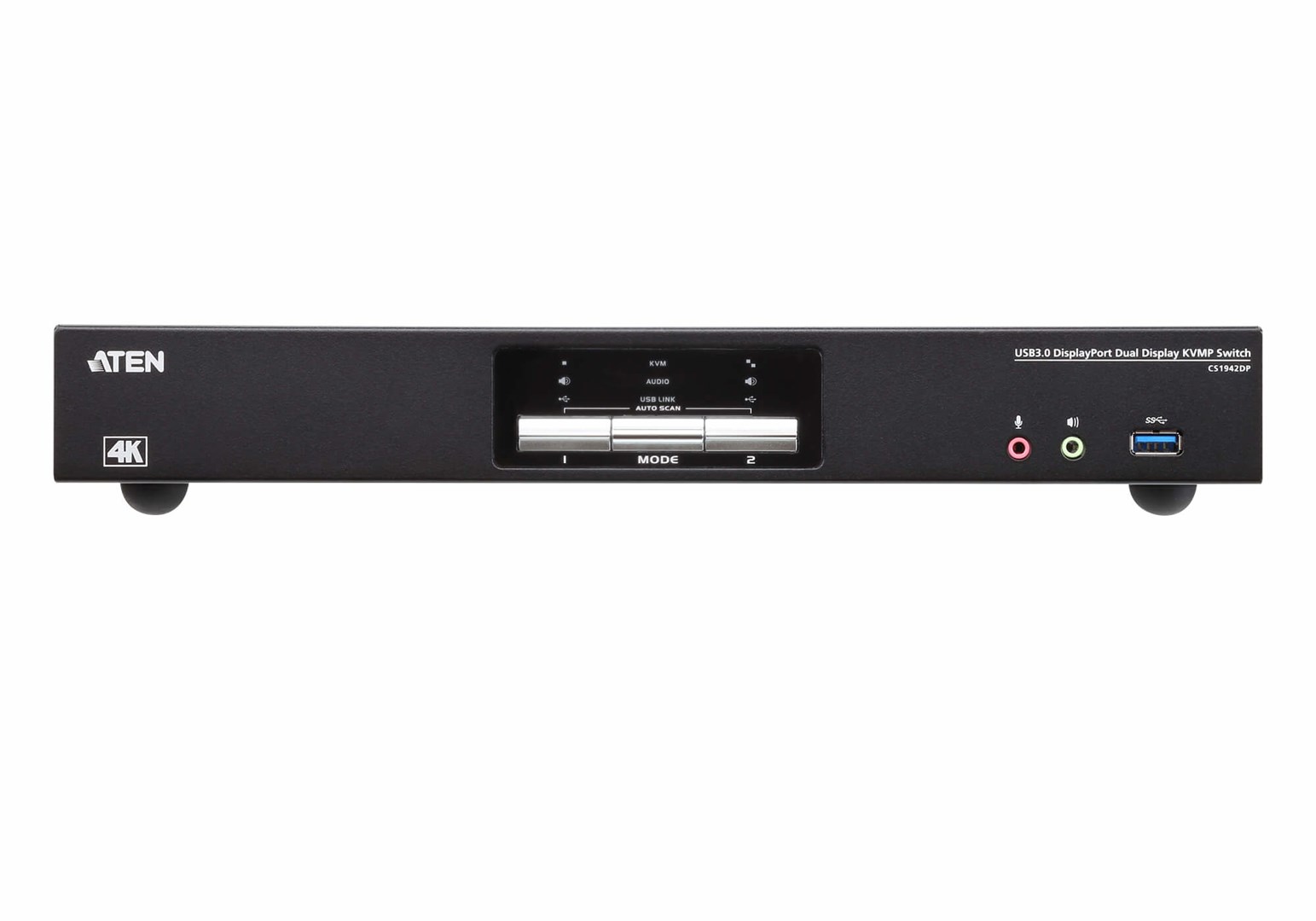

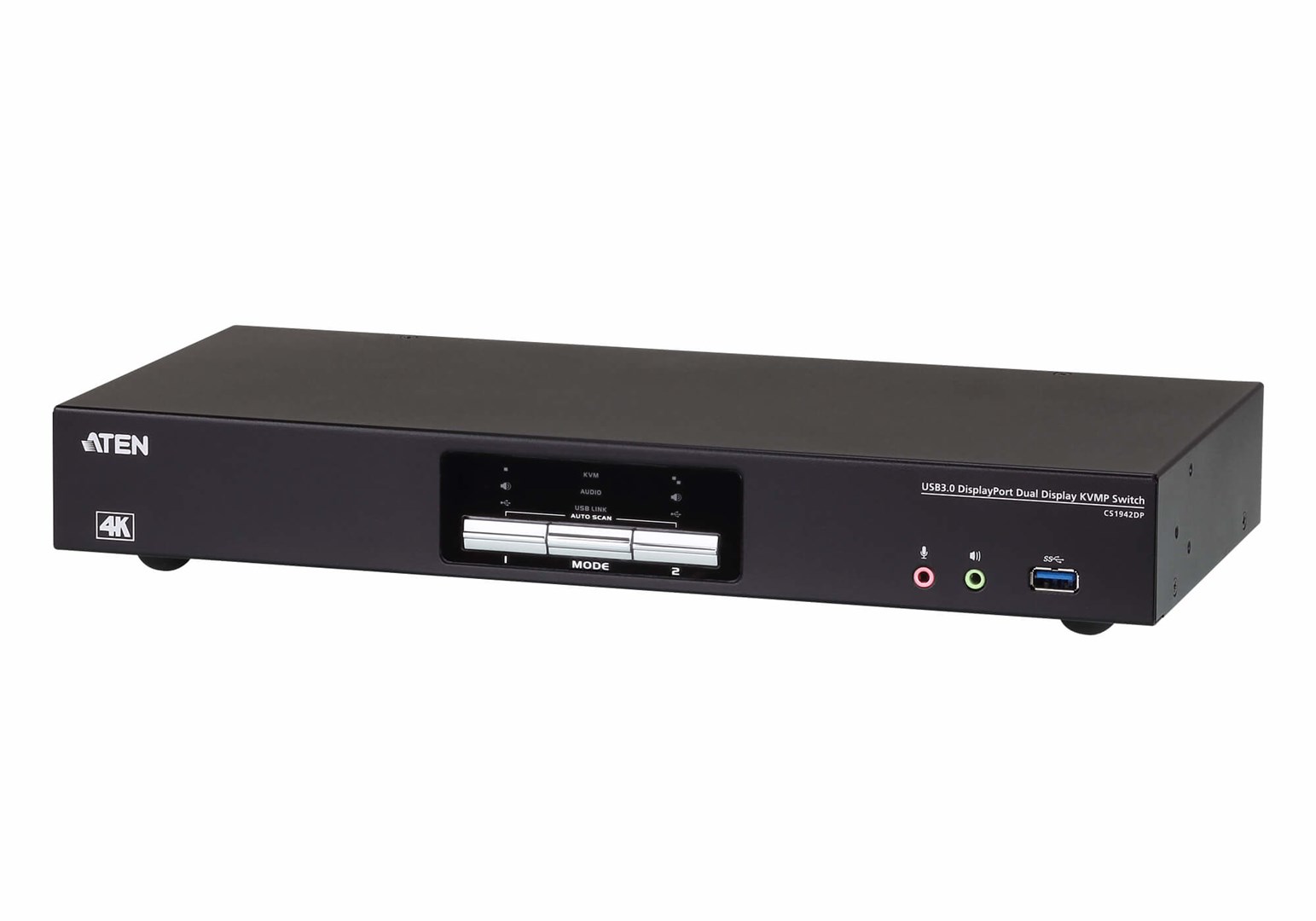

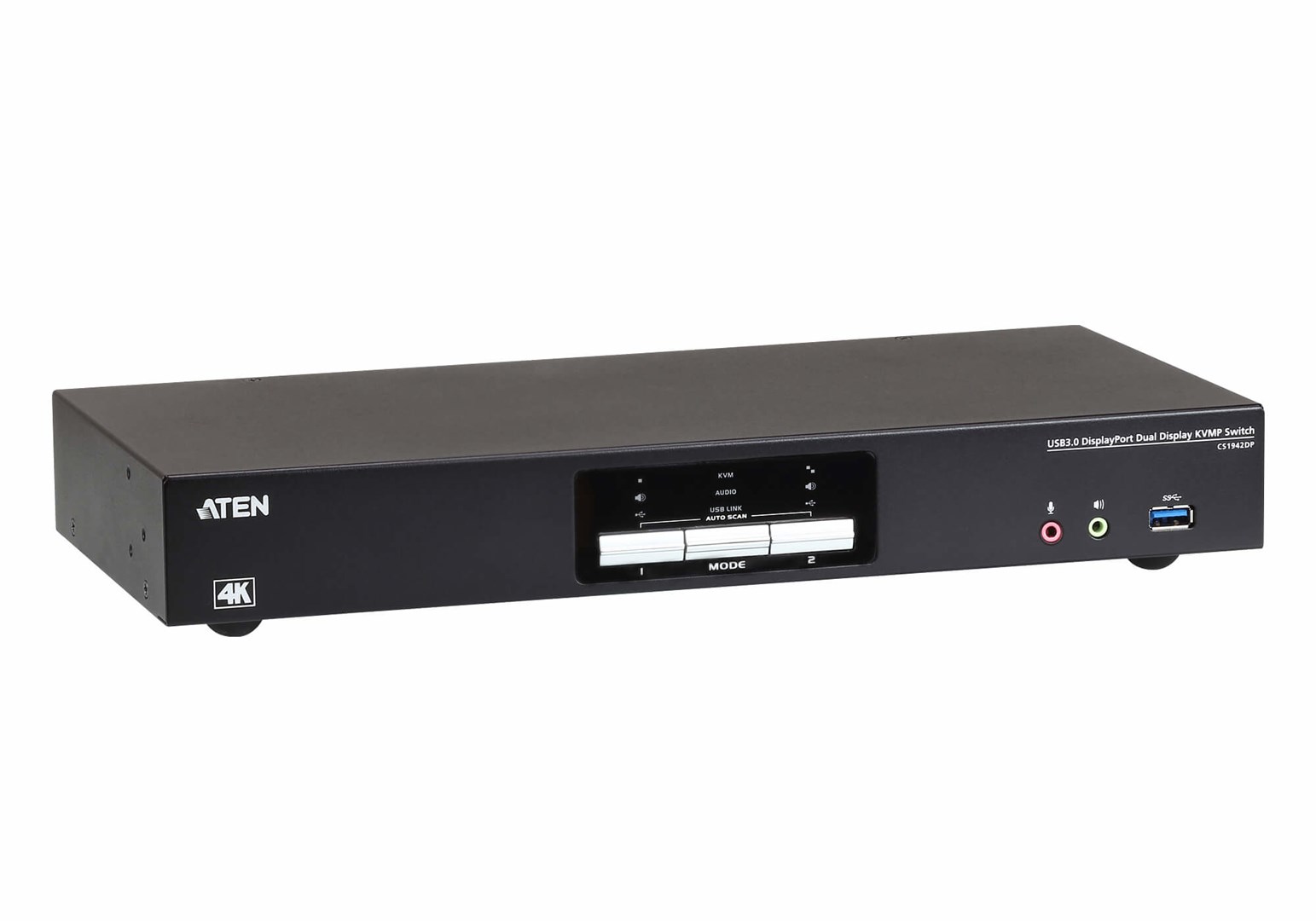

ATEN CS1942DP – KVM/audio/USB switch – 2 ports

Description

Rack mounting : No
Product colour : Black
LED indicators : Yes
Housing material : Metal
Hot keys : Yes
Push button : Yes
Input voltage : 12 V
Power source : DC
Power consumption (typical) : 3.48 W
Operating relative humidity (H-H) : 0 – 80%
Storage temperature (T-T) : -20 – 60 °C
Operating temperature (T-T) : 0 – 50 °C
Width : 156.6 mm
Height : 44 mm
Depth : 335 mm
Weight : 2.74 kg
Ethernet LAN (RJ-45) ports : 1
Ethernet LAN : Yes
Firmware upgradeable : Yes
Video bandwidth : 60 Hz
HDCP : Yes
HD type : 4K Ultra HD
Maximum resolution : 4096 x 2160 pixels
Scan interval : 99 s, 1
Daisy chain : Yes
Auto scan delay (min) : 1 s
Auto scan delay (max) : 99 s
Package weight : 3.36 kg
Package depth : 540 mm
Package width : 116 mm
Package height : 233 mm

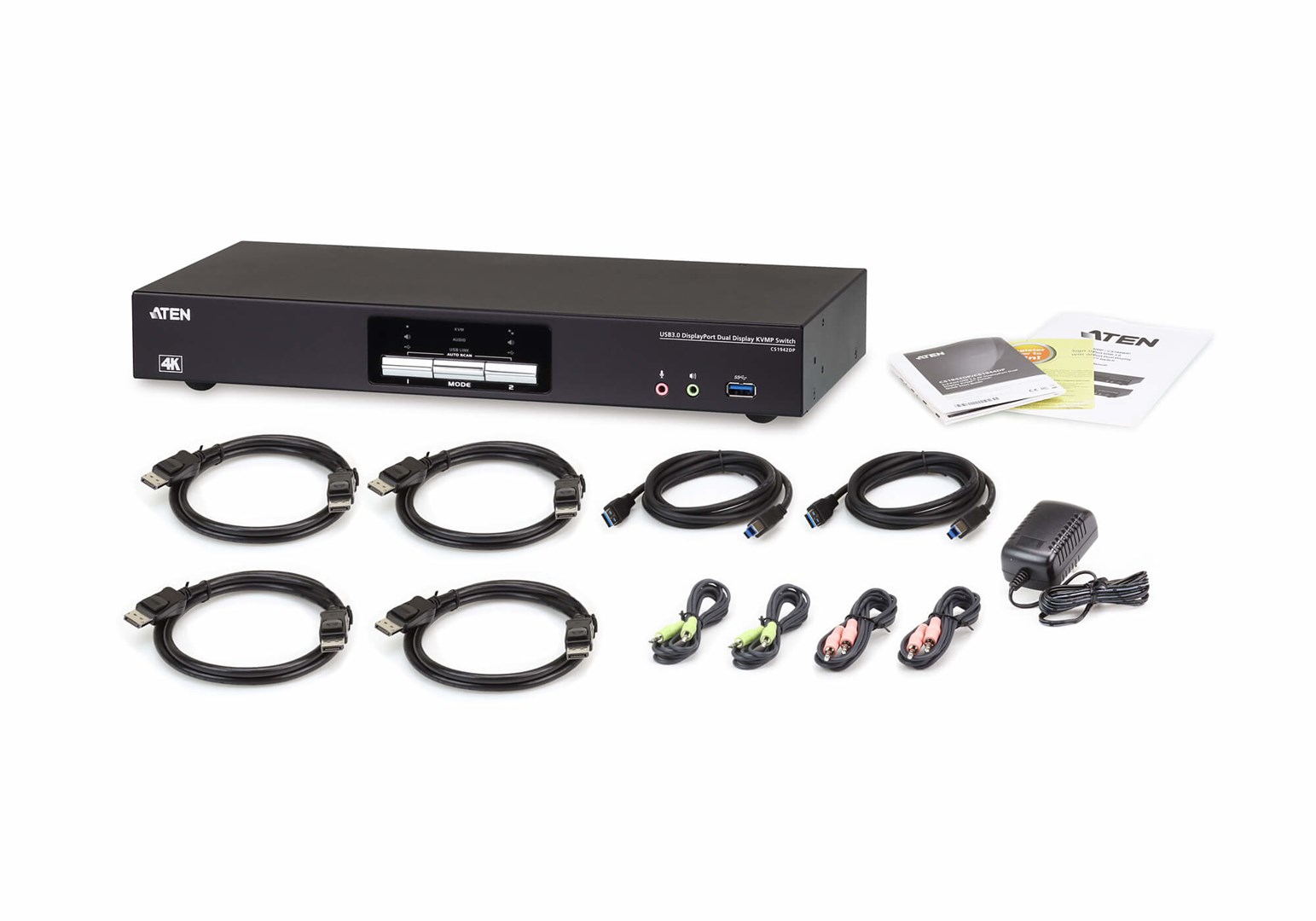

AC adapter included : Yes
Cables included : USB, Audio (3.5mm), DisplayPort to Mini DisplayPort
Manual : Yes
Built-in display : No
Console USB ports quantity : 2

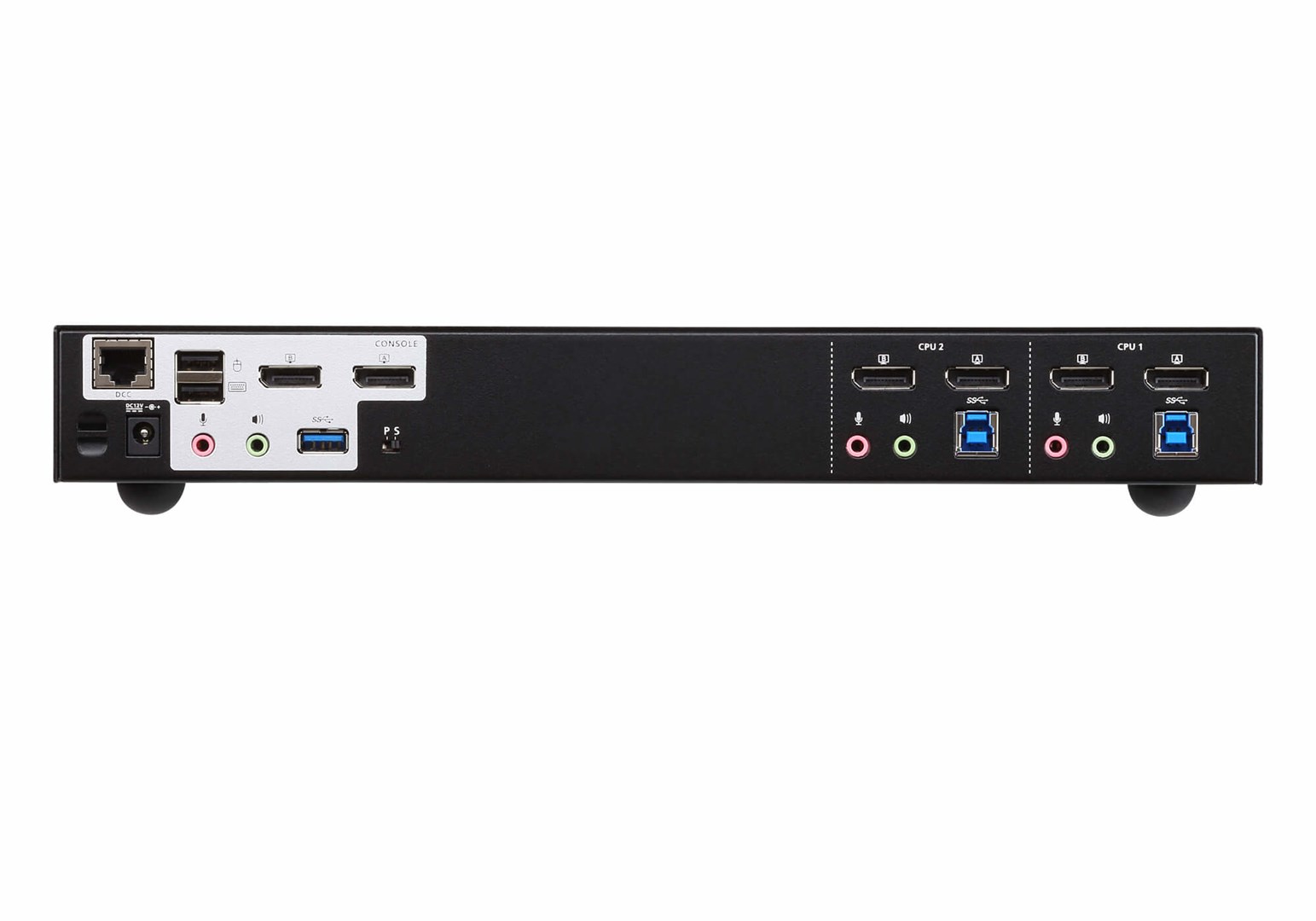

Console ports : DisplayPort, USB A, 3.5mm headphone, 3.5mm mic
DC-in jack : Yes
USB hub : Yes
Headphone outputs : 4
Video port type : DisplayPort
DisplayPorts quantity : 6
Number of microphone inputs : 4
Mouse port type : USB
Number of computers controlled : 2
DisplayPort version : 1.2
Keyboard port type : USB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity : 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity : 2
Harmonized System (HS) code : 85176200
Products per master (outer) case : 3 pc(s)
Master (outer) case gross weight : 11.2 kg
Master (outer) case net weight : 8.22 kg
Master (outer) case width : 375 mm
Master (outer) case height : 258 mm
Master (outer) case length : 565 mm
