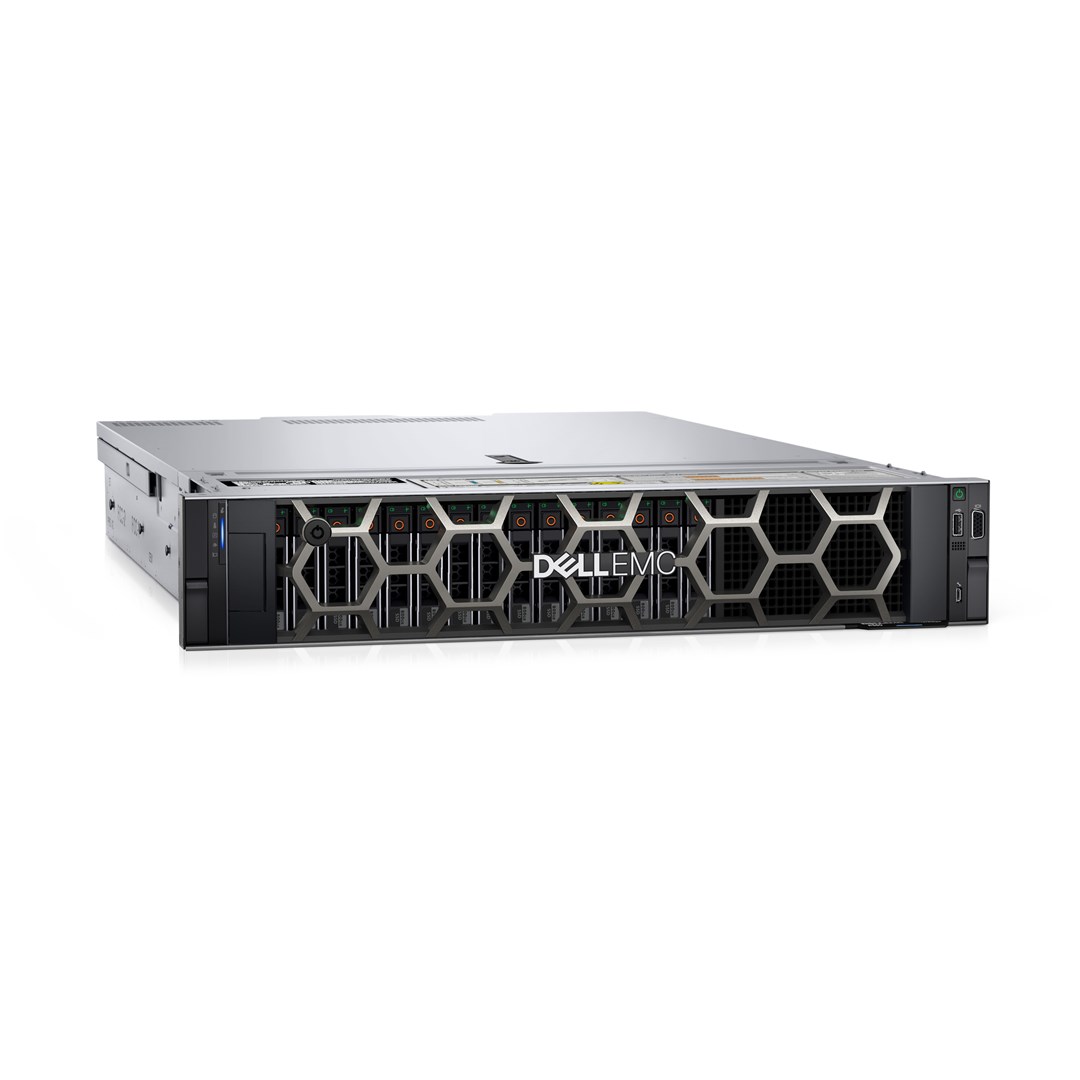

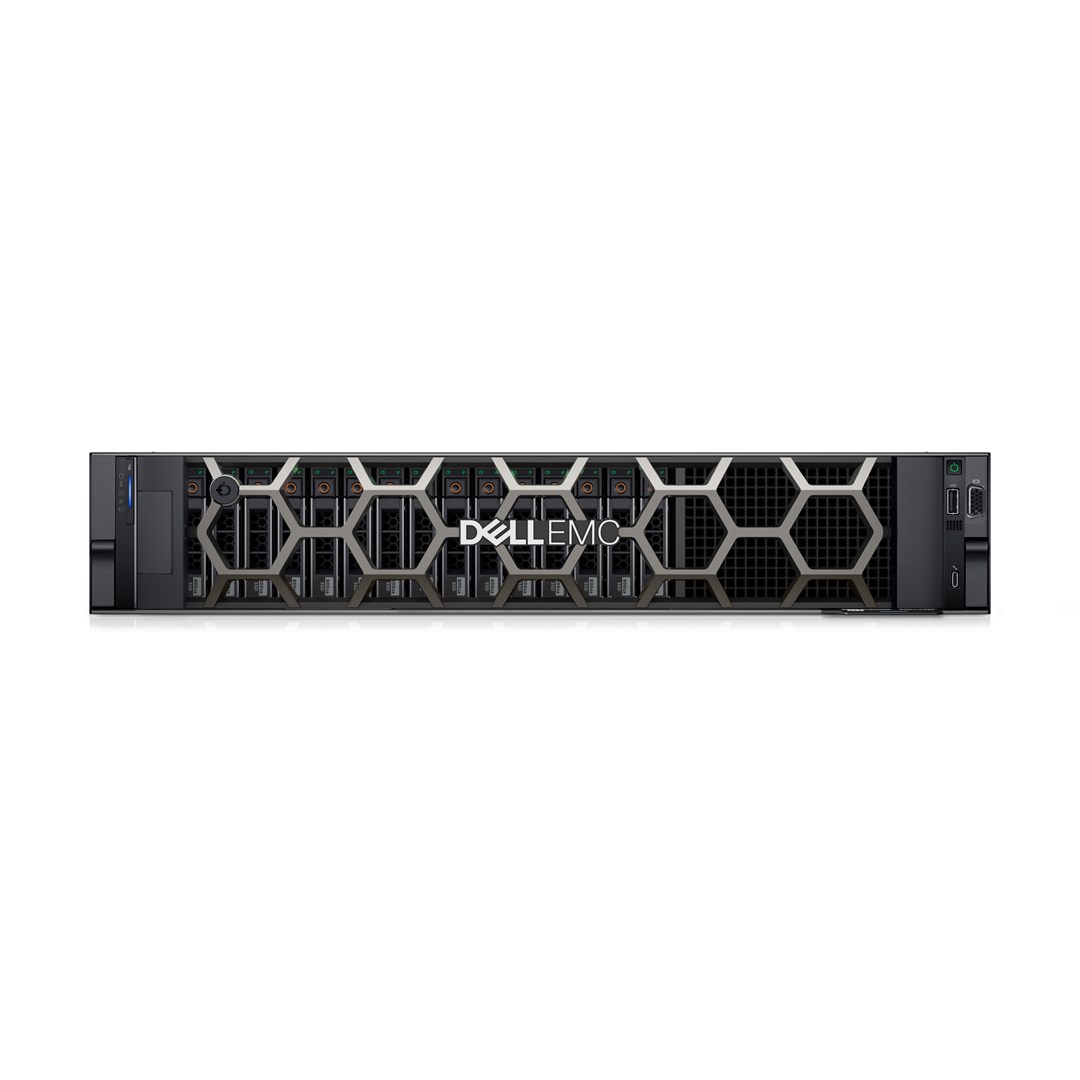

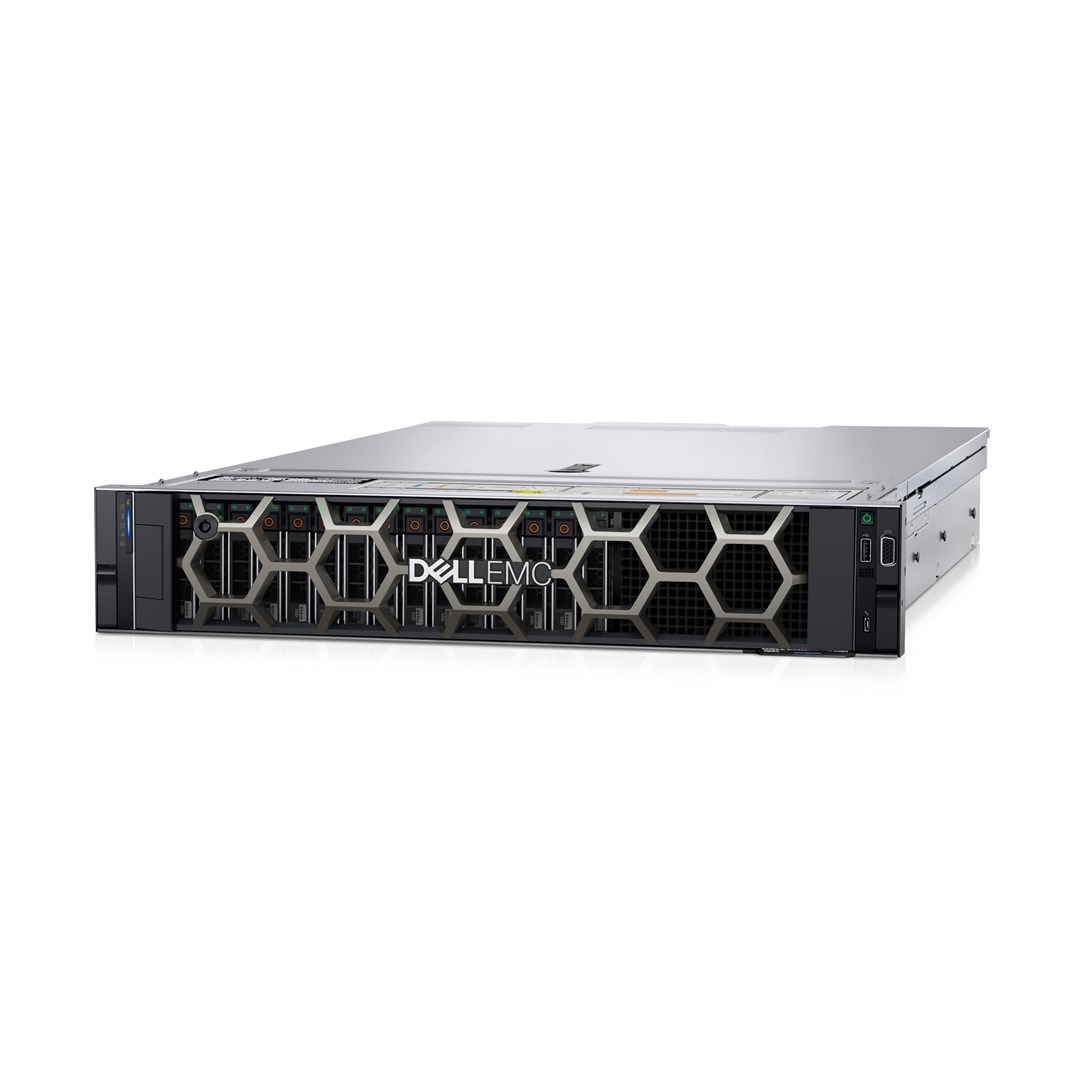

DELL PowerEdge R550 server 480 GB Rack (2U) Intel Xeon Silver 4309Y 2.8 GHz 16 GB DDR4-SDRAM 1100 W

Description

Supported storage drives form factor (internal) : 2.5"
Processor cores : 8
Processor manufacturer : Intel
Number of processors installed : 1
Maximum internal memory supported by processor : 512 GB
Processor cache : 12 MB
Processor family : Intel Xeon Silver
Processor boost frequency : 3.6 GHz
Processor model : 4309Y
Processor frequency : 2.8 GHz
Processor generation : 3rd Generation Intel® Xeon® Scalable
Efficient-core base frequency : 0.0028 GHz
Performance-core base frequency : 2.8 GHz
On-board graphics card : No
Memory slots : 16x DIMM
Buffered memory type : Registered (buffered)
Memory ranking : 2
Memory data transfer rate : 3200 MT/s
Memory layout (slots x size) : 1 x 16 GB
Internal memory : 16 GB
Maximum internal memory : 1 TB
Internal memory type : DDR4-SDRAM
Rack rails : Yes
Chassis type : Rack (2U)
Product colour : Black
Bezel : Yes
Power supply : 1100 W
Redundant power supply (RPS) support : Yes
Number of redundant power supplies supported : 2
Number of redundant power supplies installed : 2
Power cable length : 2 m
Power cable connector 1 : C13 coupler
Power cable connector 2 : C14 coupler
Power cable current : 10 A
Storage temperature (T-T) : -40 – 65 °C
Operating temperature (T-T) : 10 – 35 °C
Operating altitude : 0 – 3048 m
Storage relative humidity (H-H) : 5 – 95%
Non-operating altitude : 0 – 12000 m
Operating relative humidity (H-H) : 8 – 80%
Width : 482 mm
Height : 86.8 mm
LAN controller : Broadcom 57412
Ethernet interface type : 10 Gigabit Ethernet
Ethernet LAN : Yes
Remote administration : iDRAC9 Enterprise 15G
Operating system installed : No
RAID support : Yes
Total storage capacity : 480 GB
Hot-Plug support : Yes
Optical drive type : No
SSD interface : SATA
SSD capacity : 480 GB
Supported storage drive interfaces : SAS, Serial ATA
Supported RAID controllers : PERC H755
Number of SSDs installed : 1
SSD size : 2.5"
Supported SSD sizes : 2.5"
Number of SSDs supported : 16
USB 2.0 ports quantity : 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 1
Ethernet LAN (RJ-45) ports : 2
SFP/SFP+ slots quantity : 2
VGA (D-Sub) ports quantity : 2
Warnings : Do not block the vents to prevent overheating., Disposal in accordance with local electronic waste regulations., Beware of risk of electric shock during installation and servicing.
Carbon emissions, logistics (kg of CO2e) : 162
PAIA version : 1.3.2, 2022
Carbon emissions, manufacturing (kg of CO2e) : 1017.8
Carbon emissions, end-of-life (kg of CO2e) : 25.9
Carbon emissions, energy usage (kg of CO2e) : 7580
Total carbon footprint (kg of CO2e) : 8790
Total carbon emissions, standard deviation (kg of CO2e) : 4760
Total carbon emissions, w/o use phase (kg of CO2e) : 1210
