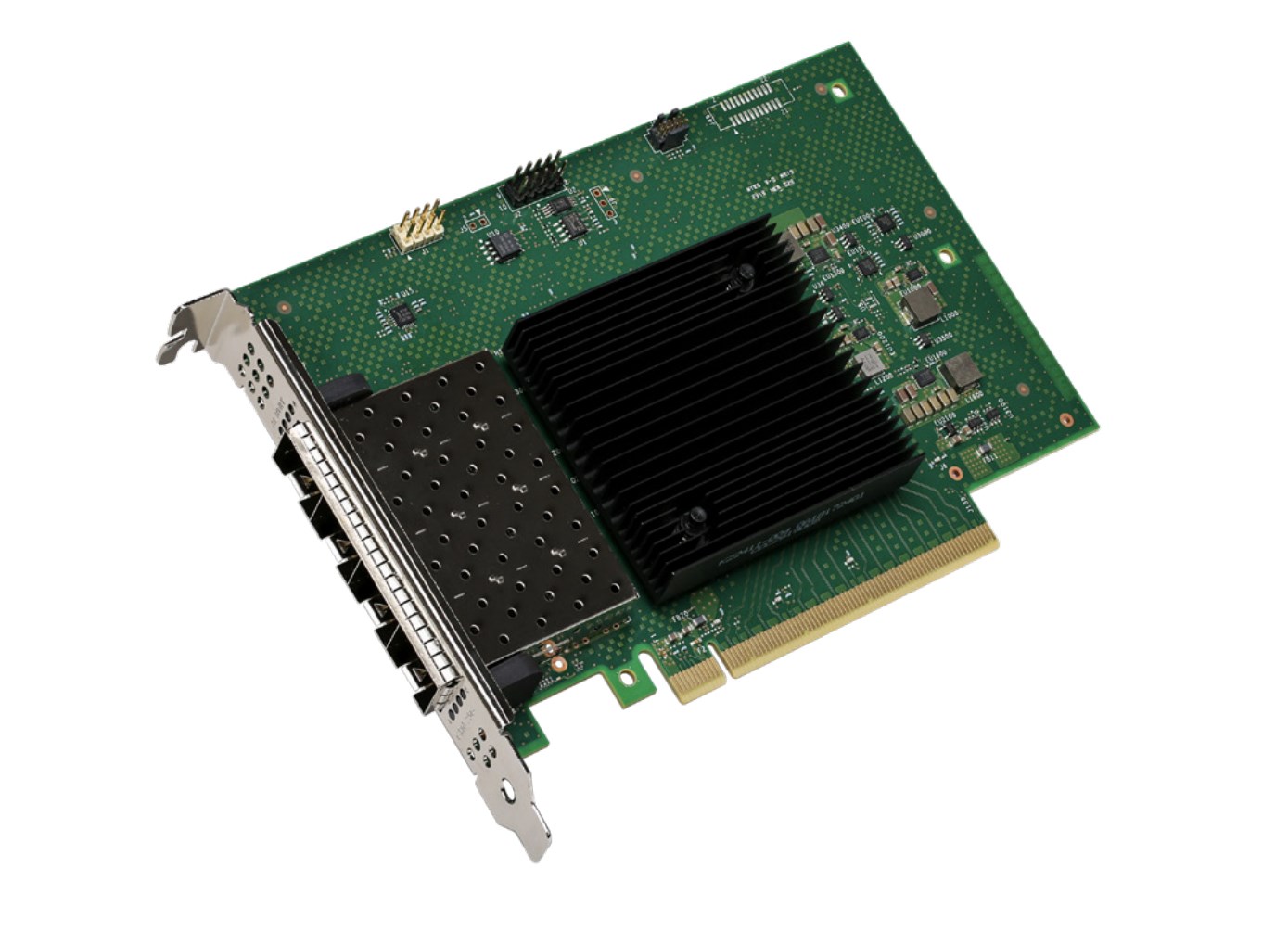

Intel Ethernet Network Adapter E810-XXVDA4 Internal Fiber 25000 Mbit/s

Description

Component for : Server/workstation
Internal : Yes
Storage temperature (T-T) : -40 – 70 °C
Operating temperature (T-T) : 0 – 60 °C
Width : 167 mm
Depth : 111 mm
Maximum data transfer rate : 25000 Mbit/s
Ethernet LAN data rates : 10000 Mbit/s, 25000 Mbit/s, 1000 Mbit/s
LAN controller : Intel E810
Host interface : PCI Express
PCI version : 4.0
Connectivity technology : Wired
Fiber ports quantity : 4
Interface : Fiber
Fiber optic connector : SFP28
On-chip QoS and Traffic Management : Yes
Cable type : SFP28 ports – DAC, Optics, And AOC’s
Processor family : 800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE)
Launch date : Q3’20
Intel Virtual Machine Device Queues (VMDq) : Yes
Product type : Network Interface Card
Network interface card type : Server
Intelligent Offloads : Yes
Product series : 800 Series Network Adapters (up to 100GbE)
PCI-SIG* SR-IOV Capable : Yes
Intel Virtualization Technology for Connectivity (VT-c) : Yes
Status : Launched
Cabling type : SFP28 ports – DAC, Optics, And AOC’s
Market segment : Server
Interface type : PCIe v4.0 (16 GT/s)
Storage Over Ethernet : iSCSI, NFS
Export Control Classification Number (ECCN) : 5A991
Commodity Classification Automated Tracking System (CCATS) : NA
Controller type : Intel(R) Ethernet Controller E810
iWARP/RDMA : Yes
Intel Data Direct I/O Technology : Yes
Intel Flexible Port Partitioning : Yes
Speed & slot width : 16.0 GT/s, x16 Lane
Network interface card cable medium : Copper, Fiber
Bracket height : Full-Height (FH)
Harmonized System (HS) code : 85176990
