Description
Processor manufacturer : Intel
Processor model : N4505
On-board graphics card model : Intel® UHD Graphics
Processor threads : 2
Processor cores : 2
Processor family : Intel® Celeron®
CPU configuration (max) : 1
Processor boost frequency : 2.9 GHz
Processor frequency : 2 GHz
Number of processors supported : 1
Memory form factor : SO-DIMM
Flash memory : 4000 MB
Maximum RAM supported : 16 GB
Memory slots : 2
Internal memory : 4 GB
Internal memory type : DDR4
Chassis type : Tower
Number of fans : 1 fan(s)
Fan diameter : 12 cm
LED indicators : Status, LAN, Power, USB, HDD
Cable lock slot : Yes
Product colour : White
Cable lock slot type : Kensington
Cooling type : Active
Power consumption (typical) : 25.98 W
Power supply location : External
Power supply unit (PSU) capacity : 90 W
Number of power supply units : 1
Fan voltage : 12 V
Power consumption (sleep) : 11.3 W
AC input voltage : 100 – 240 V
Operating relative humidity (H-H) : 5 – 95%
Storage temperature (T-T) : -20 – 70 °C
Storage relative humidity (H-H) : 5 – 95%
Operating temperature (T-T) : 0 – 40 °C
Width : 170 mm
Depth : 226 mm
Height : 168 mm
Weight : 2.26 kg
Package weight : 3.6 kg
DHCP server : Yes
iSCSI support : Yes
Jumbo frames support : Yes
Ethernet LAN : Yes
Dynamic DNS (DDNS) : Yes
Ethernet LAN data rates : 10, 2500 Mbit/s, 100, 1000 Mbit/s
Wake-on-LAN ready : Yes
Backup function : Yes
USB copy function : Yes
Hot spare : Yes
Multilingual support : Yes
Access Control List (ACL) : Yes
Buzzer : Yes
Snapshot : Yes
Share folder : Y
Device class : Home & Home Office
Backup features : Cloud, iSCSI LUN
Built-in FTP server : Yes
On/off switch : Yes
Disk scan : Yes
Browser supported : Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
System log : Yes
S.M.A.R.T. support : Yes
Password authentication : Yes
Security algorithms : 256-bit AES, HTTPS, FIPS 140-2, SSH
Type : NAS
Reset button : Yes
Power cables quantity : 1
Cables included : AC, LAN (RJ-45)
Intel VT-x with Extended Page Tables (EPT) : Yes
Intel 64 : Yes
Idle States : Yes
Intel Trusted Execution Technology : No
Intel Virtualization Technology (VT-x) : Yes
Enhanced Intel SpeedStep Technology : Yes
Intel Virtualization Technology for Directed I/O (VT-d) : Yes
Operating system installed : QNAP QTS
Mac operating systems supported : Mac OS X 10.14 Mojave, Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra, Mac OS X 10.15.3 Catalina, Mac OS X 10.13 High Sierra, Mac OS X 12.0 Monterey, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur
Server operating systems supported : Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2012
Linux operating systems supported : Yes
Operating system version : 5.0.1
Windows operating systems supported : Windows 8, Windows 10, Windows 7, Windows 11
Installed storage drive type : No
Supported file systems : HFS+, ext3, NTFS, ext4, FAT32, exFAT
Number of storage drives supported : 4
Disk roaming : Yes
Online RAID migration : Yes
Storage drive sizes supported : 2.5, 3.5", M.2
Number of M.2 (M & B) slots : 2
Total installed storage capacity : 0 TB
Hot-swap drive bays : Yes
RAID rebuild : Yes
Storage drive capacity : 0 GB
Bad block scan : Yes
Online RAID expansion : Yes
Storage drives installed : No
RAID levels : JBOD, 10, 5, 6, 0, 1
Supported storage drive types : HDD & SSD
Supported storage drive interfaces : Serial ATA III
RAID support : Yes

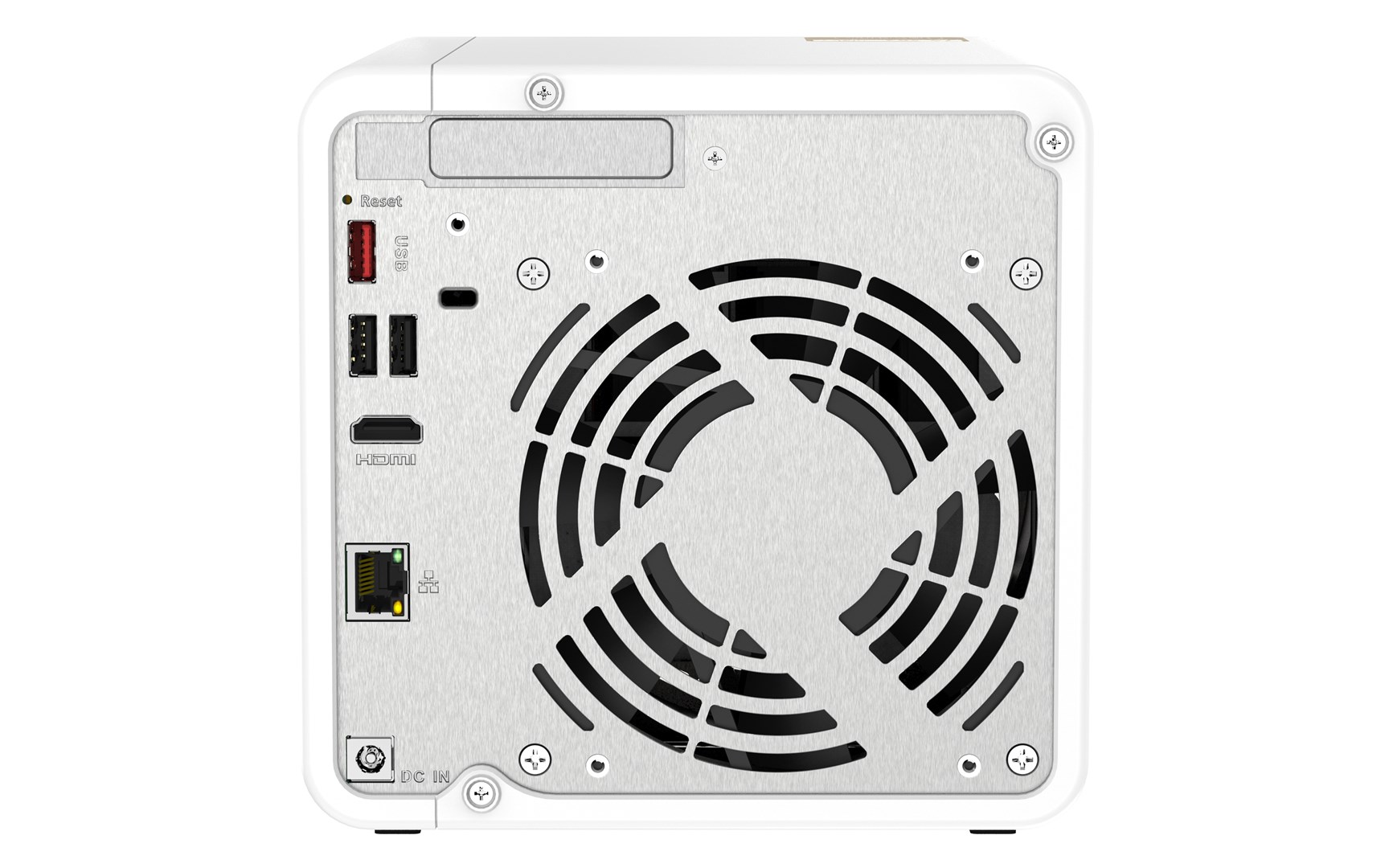

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity : 2
USB port : Yes
HDMI ports quantity : 1
HDMI version : 2.0
USB 2.0 ports quantity : 2
Ethernet LAN (RJ-45) ports : 1
Warnings : Do not dispose of the device in the regular rubbish bin. The product requires special disposal., Do not dismantle the appliance yourself.
