Description
Processor cores : 4
Processor frequency : 3.35 GHz
Processor boost frequency : 3.6 GHz
Processor manufacturer : AMD
Processor family : Ryzen Embedded
Processor model : V1780B
Number of processors supported : 1
Processor generation : AMD Ryzen Embedded V1000 Series
Memory slots : 2
Internal memory : 8 GB
Internal memory type : DDR4
ECC : Yes
Memory form factor : SO-DIMM
Maximum RAM supported : 32 GB

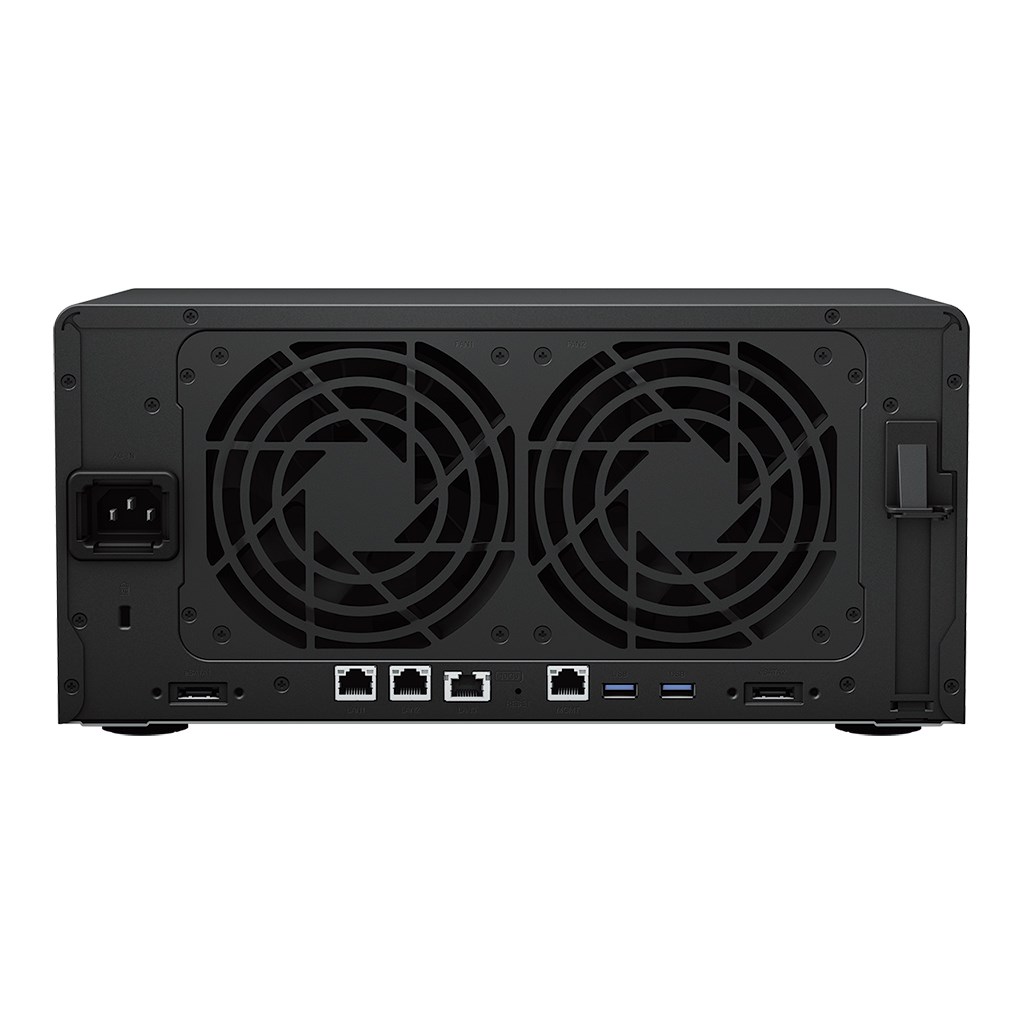

Number of fans : 2 fan(s)
Cable lock slot type : Kensington
Fan diameter : 12 cm
Built-in speaker(s) : No
Cooling type : Active
LED indicators : Yes
Chassis type : Tower
Built-in display : No
Cable lock slot : Yes
Product colour : Black
Redundant power supply (RPS) support : No
AC input voltage : 100 – 240 V
Power consumption (typical) : 87.93 W
AC input frequency : 50 / 60 Hz
Power supply location : Built-in
Number of power supply units : 1
Power supply unit (PSU) capacity : 250 W
Operating temperature (T-T) : 0 – 40 °C
Storage relative humidity (H-H) : 5 – 95%
Operating relative humidity (H-H) : 5 – 95%
Storage temperature (T-T) : -20 – 60 °C
Weight : 6.2 kg
Height : 166 mm
Depth : 243 mm
Width : 343 mm
Link aggregation : Yes
Ethernet LAN data rates : 100, 10, 10000 Mbit/s, 1000 Mbit/s
Ethernet LAN data rate supported (max) : 10000 Mbit/s
Copper ethernet cabling technology : 100BASE-TX, 1000BASE-T, 10GBASE-T, 10BASE-T
Ethernet LAN : Yes
iSCSI support : Yes
Backup features : Cloud, iSCSI LUN
Snapshot : Yes
Multilingual support : Yes
System log : Yes
Reset button : Yes
Noise level : 23.6 dB
Access Control List (ACL) : Yes
Type : NAS
Card reader integrated : No
On/off switch : Yes
Built-in FTP server : Yes
Management protocols : SNMP
Security algorithms : AES
Backup function : Yes
Browser supported : Google Chrome Firefox Microsoft Edge Safari
Device class : Small & Medium Business
Cables included : AC, LAN (RJ-45)
Power cables quantity : 1
Operating system installed : DiskStation Manager
Server operating systems supported : Windows Server 2019
Operating system version : 7.1.1
Total installed storage capacity : 0 TB
Online RAID migration : Yes
Number of M.2 (M & B) slots : 2
Online RAID expansion : Yes
Supported storage drive types : HDD & SSD
Supported file systems : BTRFS, ext4, exFAT, Fat, ext3, NTFS, HFS+
RAID levels : 10, 5, 1, 6, JBOD, 0
Number of storage drives supported : 8
Storage drives installed : No
Installed storage drive type : No
Supported storage drive interfaces : Serial ATA
Storage drive sizes supported : M.2, 3.5", 2.5
RAID support : Yes
Hot-swap drive bays : Yes
eSATA ports quantity : 2
Ethernet LAN (RJ-45) ports : 4
USB port : Yes
PCI Express x8 (Gen 3.x) slots : 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 3
Compliance certificates : RoHS, CE
Sustainability compliance : Yes
