Description
Processor manufacturer : AMD
Processor frequency : 2.2 GHz
Processor family : Ryzen Embedded
L2 cache : 2 MB
Processor cores : 4
L3 cache : 4 MB
Number of processors supported : 1
Processor threads : 8
Processor model : V1500B
On-board graphics card model : Not available
Processor generation : AMD Ryzen Embedded V1000 Series
Internal memory : 2 GB
Internal memory type : DDR4
Memory slots : 2
ECC : Yes
Memory form factor : SO-DIMM
Maximum RAM supported : 32 GB

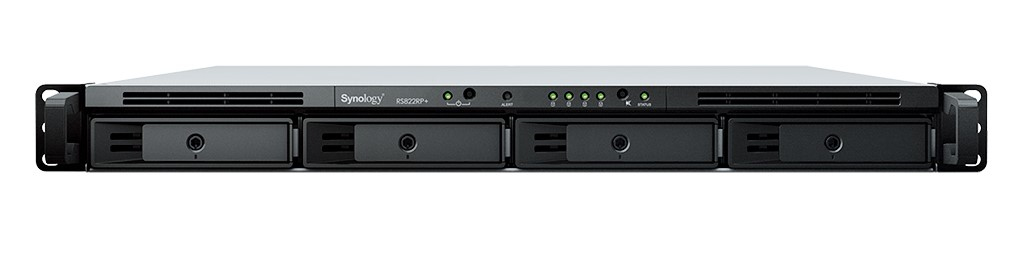

LED indicators : Alarm, Status, Power, HDD
Cooling type : Active
Drive bay locking : Yes
Fan diameter : 4 cm
Number of fans : 2 fan(s)

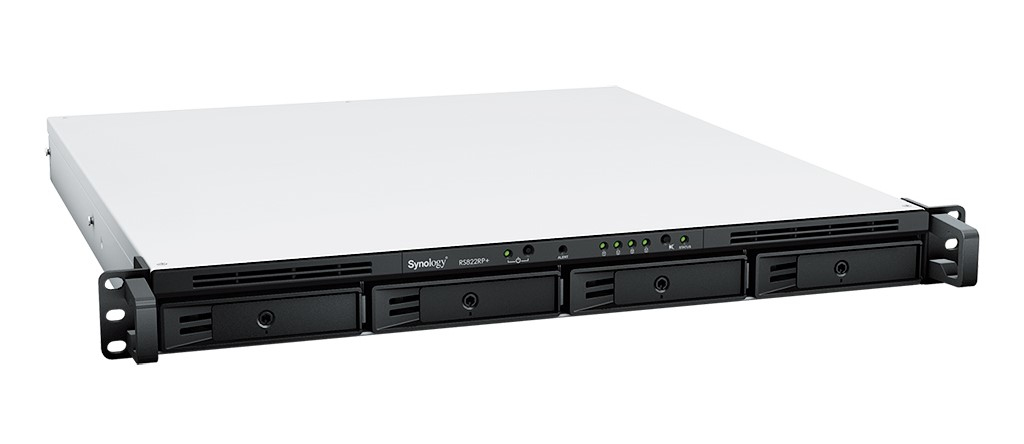

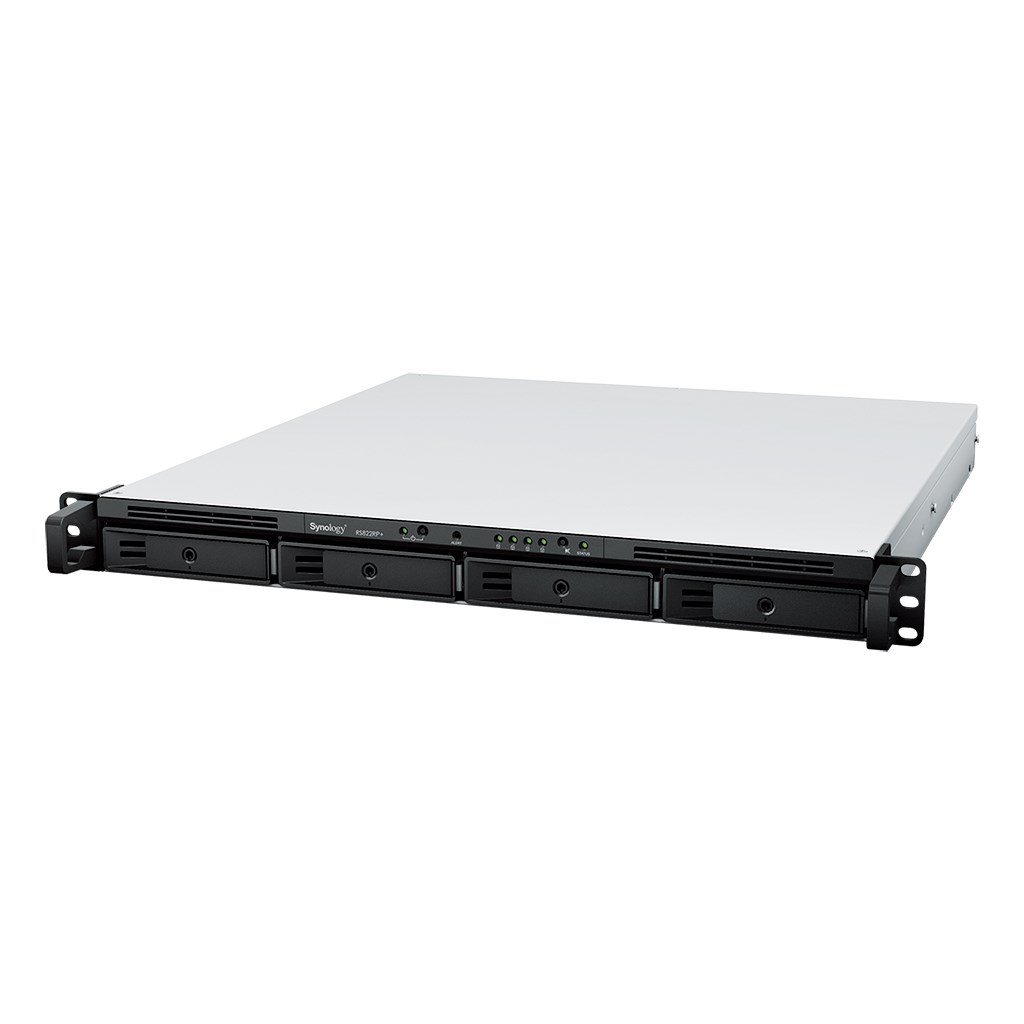

Chassis type : Rack (1U)
Product colour : Grey
Power consumption (HDD standby) : 16.7 W
AC input voltage : 100 – 240 V
Power consumption (typical) : 47.69 W
Power supply location : Built-in
Power supply unit (PSU) capacity : 150 W
AC input frequency : 50/60 Hz
Redundant power supply (RPS) support : Yes
Operating temperature (T-T) : 0 – 35 °C
Operating altitude : 0 – 5000 m
Storage relative humidity (H-H) : 5 – 95%
Operating relative humidity (H-H) : 8 – 80%
Storage temperature (T-T) : -20 – 60 °C
Depth : 518.6 mm
Height : 44 mm
Weight : 8 kg
Width : 480 mm
Ethernet LAN : Yes
Supported network protocols : SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Wake-on-LAN ready : Yes
Ethernet LAN data rates : 1000 Mbit/s
Link aggregation : Yes
WLAN adapter supported : Yes
iSCSI support : Yes
Share folder : SMB/AFP/NFS/FTP/WebDAV
Browser supported : Google Chrome, Firefox, Microsoft Edge, Safari
Type : NAS
Security algorithms : SSL/TLS, HTTPS, SSH
Built-in FTP server : Yes
System log : Yes
Built-in iTunes server : Yes
Access Control List (ACL) : Yes
Noise level : 38.8 dB
On/off switch : Yes
Reset button : Yes
Device class : Small & Medium Business
Multilingual support : Yes
Backup features : iSCSI LUN, Cloud
Snapshot : Yes
Third-party support : Yes
Hot spare : Yes
Backup function : Yes
Number of users : 2048 user(s)
Power cables quantity : 2
Cables included : AC
Operating system installed : DiskStation Manager
Mac operating systems supported : Yes
Linux operating systems supported : Yes
Windows operating systems supported : Yes
Storage drive sizes supported : 3.5", 2.5
Supported storage drive types : HDD & SSD
RAID levels : 1, 10, 6, 0, JBOD, 5
Number of storage drives supported : 4
Supported file systems : ext4, HFS+, ext3, NTFS, FAT32, exFAT, BTRFS
RAID support : Yes
Total installed storage capacity : 0 TB
Online RAID migration : Yes
Online RAID expansion : Yes
Storage drives installed : No
Installed storage drive type : No
Supported storage drive interfaces : Serial ATA II, Serial ATA III
Hot-swap drive bays : Yes

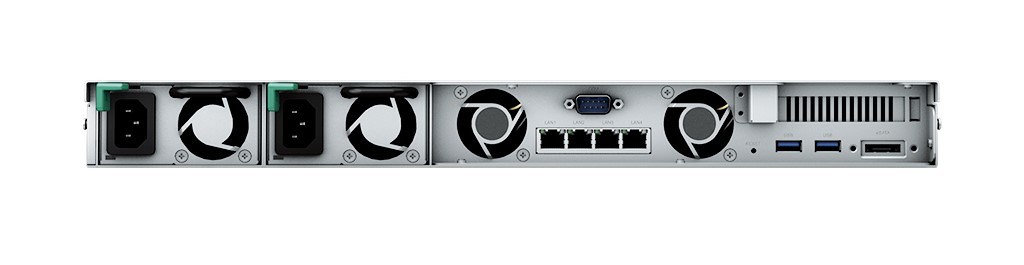

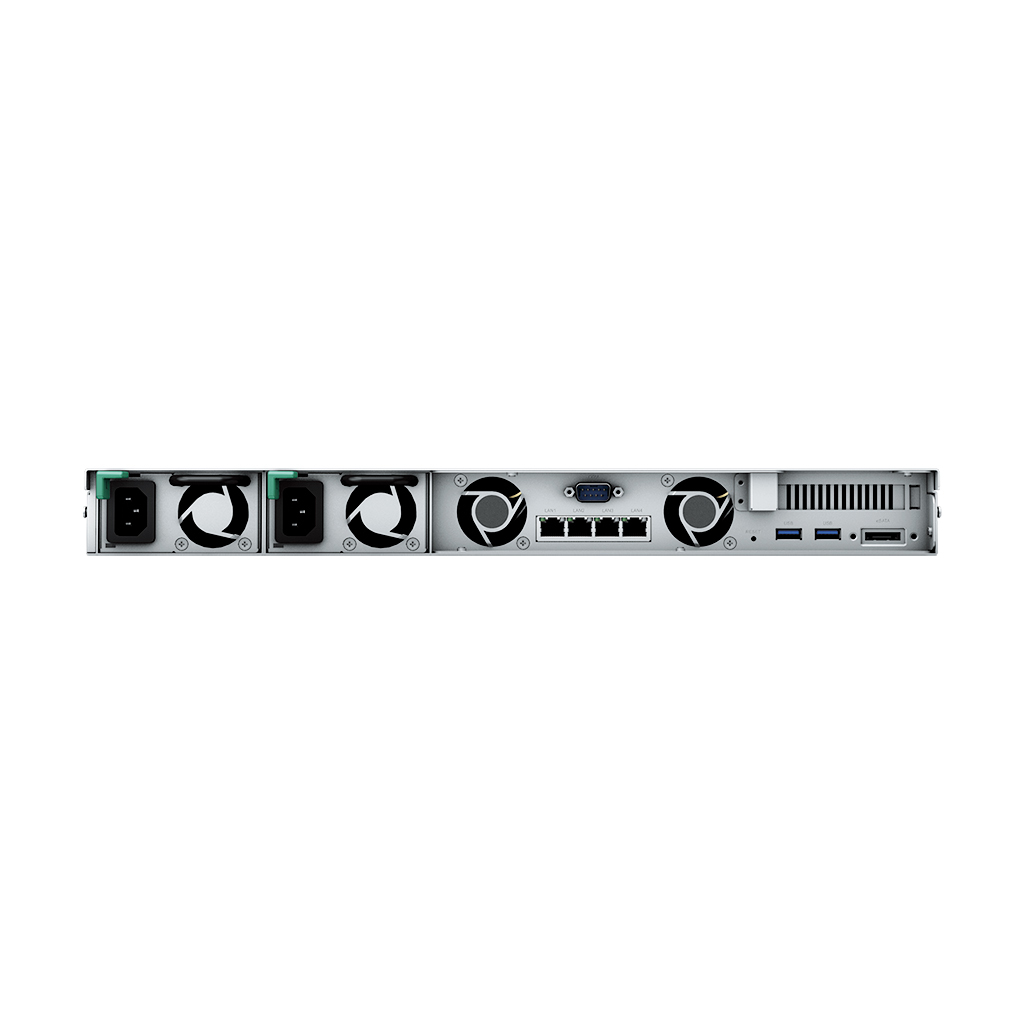

Ethernet LAN (RJ-45) ports : 4
USB port : Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 2
eSATA ports quantity : 1
Concurrent connections : 500
PCI Express x8 (Gen 3.x) slots : 1
Compliance certificates : RoHS
